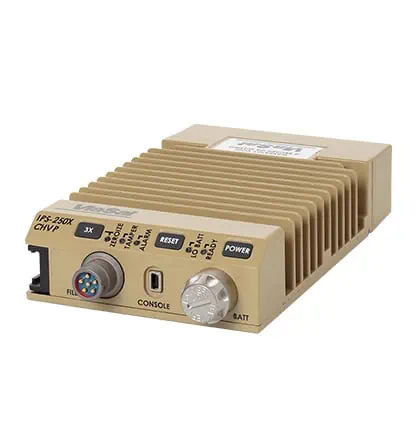

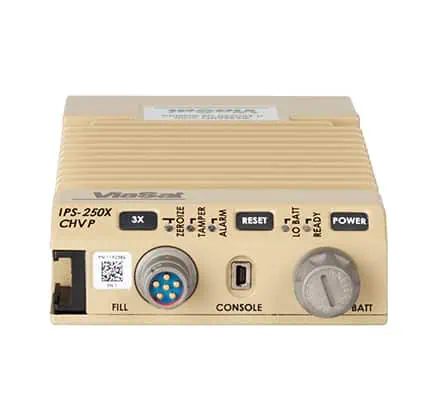

IPS-250X

The IPS-250X is a low-SWaP non-CCI inline network encryptor that provides secure IP communications up to Secret level for warfighters. homeland security operatives and government agencies with users that may either not have COMSEC accounts or wish to minimize COMSEC logistics and the costs associated with Controlled Cryptographic Items.

The compact and lightweight device is interoperable with CCI HAIPE devices operating in Suite B, and provides 200 Mbps aggregate throughput. The IPS-250X is currently deployed for NATO and Coalition interoperability. Ruggedized to MIL-STD-810G standards and compliant with MIL-STD-1275D and MIL-STD-704F specifications for in-vehicle and airborne equipment, it is ideal for UAV and unmanned systems applications and can be zeroed remotely in leave-behind scenarios.

Specifications:

Dimensions (W x D x H) 4.47 x 1.56 x 8.62”
Weight 3.0 lbs
Power 12-28 VDC, 14W typical
Protocols Supported TCP, UDP, IPv4/IPv6 Dual Stack, ICMP, IGMP, ARP, DHCP
Networking Features Dynamic IP addressing, dynamic key management, red address confidentiality with dynamic peer discovery
Algorithms Secret and Below Suite B cryptography
Predicted MTBF 350,000 hrs
Predicted MTTF 15 mins
