High-Performance Video Graphics, GPGPU, AI/ML Processing & Display Solutions for C5ISR Applications
Condor AGX-ORIN64-HPC Embedded 3U VPX Single Board Computer with NVIDIA Jetson AGX Orin 64GB
Condor AGX-ORIN64-HPC

Embedded 3U VPX Single Board Computer with NVIDIA Jetson AGX Orin 64GB

Visit Website Contact
Saved
Save

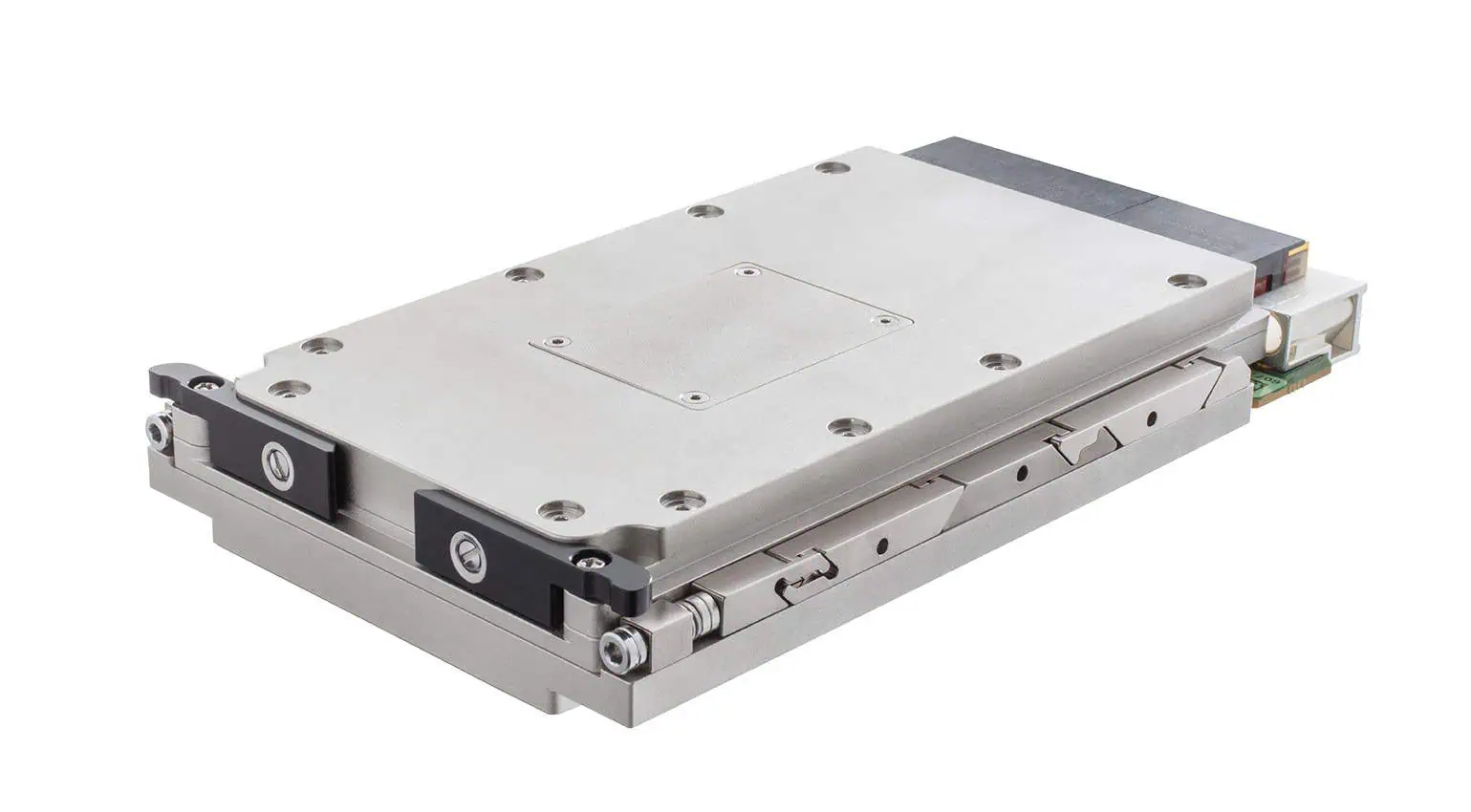

Condor AGX-ORIN64-HPC

The Condor™ AGX-ORIN64-HPC is a rugged 3U VPX high-performance single board computer (SBC) designed for both autonomous and embedded edge computing systems. It uses the NVIDIA Jetson AGX Orin 64GB (Industrial) SoM that hosts an NVIDIA Ampere architecture GPU and a 12-core Arm® Cortex®-A78AE CPU. The module’s 64GB of LPDDR5 system memory allows up to 205 GB/s memory bandwidth shared between the internal CPU, GPU, and accelerator engines.

The Condor AGX-ORIN64-HPC incorporates the NVIDIA ConnectX®-7 NIC, enabling high-speed data transfer of up to 100Gb/s and 25Gb/s using Gigabit Ethernet. This, along with NVIDIA GPUDirect® RDMA over converged Ethernet (RoCE), enables high-speed communication between distributed sensors, RF transceivers, and platforms. In addition, the card supports 64 GB eMMC internal storage, an M.2 2230 site for expandable storage, and features high-speed I/O such as USB 3.2, DisplayPort™, and RS-232 Serial. The NVIDIA® Jetson AGX Orin™ SoM features HEVC (H.265)/AVC (H.264) NVENC and NVDEC engines with support for up to 4K-UHD encode resolution.

The Condor AGX-ORIN64-HPC is designed to support both VITA 46/65 and the Sensor Open System Architecture (SOSA™) technical standards slot profile 14.6.11.
