EIZO Rugged Solutions is a leading developer of commercial off-the-shelf (COTS) solutions for video and sensor data capturing and processing, as well as GPGPU computing for unmanned systems.

Designed to meet MIL-STD-810 standards and to withstand extreme levels of temperatures, shock, and vibration, our highly reliable, long life cycle products are ideal for a wide range of unmanned systems, such as UAVs (unmanned aerial vehicles), UGVs (unmanned ground vehicles) and USVs (unmanned surface vessels).

GPGPU computing for unmanned systems

Featured Video Capture Boards & GPGPU Cards

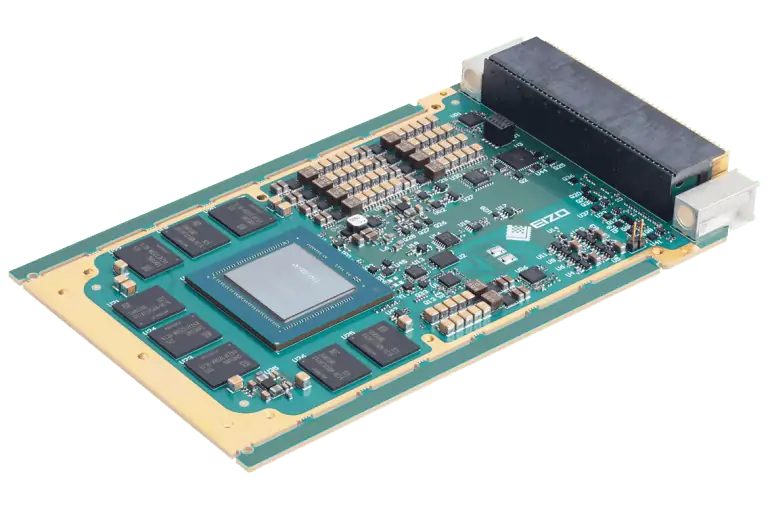

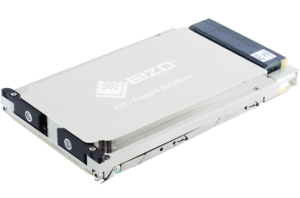

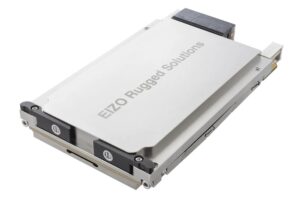

Condor GR5-RTX5000

Condor GR5-RTX5000 3U VPX GPGPU Card for Drone image processing3U VPX NVIDIA Turing-Based Graphics & GPGPU Card with Quad Video Outputs

Leveraging the powerful NVIDIA Turing architecture and RTX platform, the rugged Condor GR5-RTX5000 provides a wide range of capabilities for mission-critical applications, including:

  • Mesh and texture space shading
  • Multi-view rendering, and
  • Ultra-high performance GPGPU computing.

Providing two DisplayPort and two Single-Link DVI-D outputs or four of each, the Condor GR5-RTX5000 is ideal for AI inferencing, deep learning, sensor processing, data analytics and more.

Condor GR5-P2000

Condor GR5-P2000 3U VPX & GPGPU Processing Card3U VPX NVIDIA Quadro Pascal-Based Graphics & GPGPU Card

With a chip-down design based around the NVIDIA Quadro Pascal P2000 GPU, the rugged Condor GR5-P2000 provides up to 2.3 TFLOPs of powerful floating-point GPGPU performance.

It is ideal for autonomous unmanned systems applications such as AI, machine learning and high performance embedded computing (HPEC) tasks including C5ISR and remote sensing and analysis.

The card is available in air-cooled or conduction-cooled variants and provides two DisplayPort and two Single-Link DVI-D outputs or four of each.

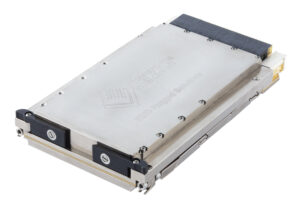

Condor GR4-P5000

Condor GR4-P5000 3U VPX Graphics & Drone Video Capture Card

3U VPX NVIDIA Quadro Pascal-Based Graphics & Video Capture Card

Based around the advanced NVIDIA Quadro P5000 GPU, the rugged Condor GR4-P5000 is an all-in-one solution for video capture, processing, encoding/decoding, streaming, and display.

An essential component of High Performance Embedded Computing (HPEC) systems, it is ideal for low-latency video capture/display in ISR (Intelligence, Surveillance and Reconnaissance) and Signals Intelligence (SIGINT) applications.

The card is available in air-cooled or conduction-cooled variants and provides four 3G-SDI/HD-SDI/SD-SDI I/O interfaces and one DisplayPort output.

Condor NVP2102AxX

Condor NVP2102AxX XMC Graphics & Drone Video Capture Card

XMC NVIDIA Quadro Pascal Graphics & Analog/Digital Video Capture Card

The Condor NVP2102AxX is a rugged high-performance all-in-one solution that captures both analog & digital raw frame-by-frame audio/video and provides simultaneous processing, encoding/decoding, streaming, and display.

Based around the chip-down NVIDIA Quadro Pascal P2000 GPU, it also provides high-powered GPGPU computing, AI processing, deep learning capabilities.

The I/O-intensive card provides four 3G-SDI inputs, two CVBS (NTSC/PAL/SECAM) inputs, and two stereo line in audio inputs, as well as two 3G-SDI and two DVI or DisplayPort video outputs. It is available in conduction or air cooled versions.

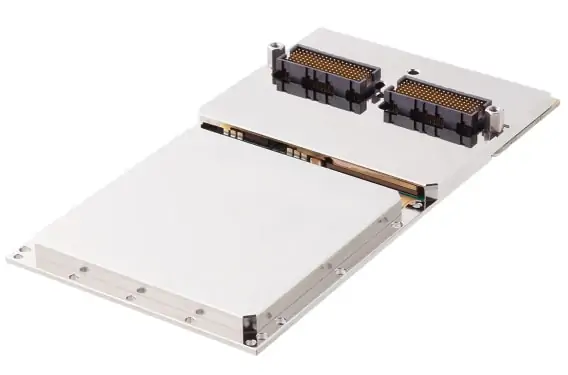

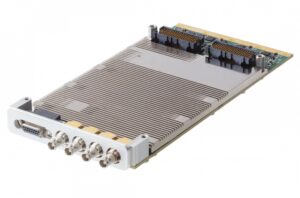

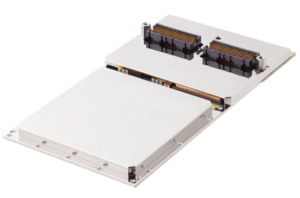

Condor NVP2009AxX

XMC Graphics & GPGPU Card with Quad Analog & Digital Outputs

The Condor NVP2009AxX is a rugged XMC graphics and GPGPU card featuring a chip-down design based on the NVIDIA Quadro P2000 GPU and supporting CUDA and OpenCL based GPGPU computing, AI processing and deep learning, and H.265 (HEVC) / H.264 encoding and decoding.

The card offers four field-customizable video output combinations of DisplayPort++, 3G-SDI, CVBS and VGA, supporting a range of video resolutions up to 4K and custom resolutions under VGA configurations. Analog outputs can be configured for either single-ended or differential signaling.

The MIL-STD-810 compliant Condor NVP2009AxX is ideal for C5ISR, signal intelligence (SIGINT) and a wide range of other applications.

Condor NVP2000xPF

XMC Graphics & GPGPU Card with Rear & Front DVI Video Outputs

Condor NVP2000xPF XMC Graphics & GPGPU CardThe Condor NVP2000xPF is a rugged NVIDIA Pascal-based chip-down XMC graphics output and GPGPU card designed to be used as a front or rear PMC I/O card in rugged VME and Compact PCI systems, It can also be configured to support OpenVPX systems.

With front and rear DisplayPort and DVI outputs, the Condor NVP2000xPF is ideal for sophisticated autonomous and unmanned systems applications such as C5ISR, situational awareness, signal intelligence (SIGINT), and machine learning.

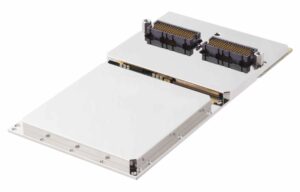

Condor NVP2102xX

XMC Graphics & Video Capture Card with 3G-SDI I/O

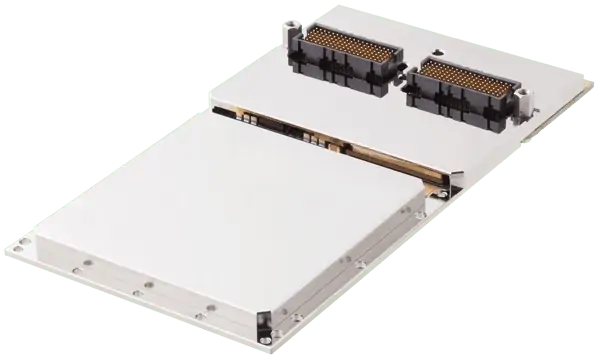

Condor NVP2102xX XMC Graphics & Video Capture BoardThe NVIDIA Quadro Pascal-based Condor NVP2102xX is a rugged high-performance graphics card that captures 3G-SDI raw frame-by-frame video and provides simultaneous processing, encoding/decoding, streaming, and display.

Supporting CUDA and OpenCL-based GPGPU computing, it is ideal for a range of advanced unmanned systems and AI applications.

The highly I/O-intensive card provides four 3G-SDI video inputs as well as two 3G-SDI, one VGA and two DVI or DisplayPort video outputs. It is available in conduction or air cooled versions.

NVIDIA-Based Video Capture & GPGPU Solutions

Graphics Processing & Machine Learning for drones and unmanned systems

NVIDIA Preferred PartnerEIZO is an NVIDIA Preferred Partner, providing state-of-the-art GPU technology for mission-critical real-time unmanned systems and robotics applications with unique access to the highest levels of technical support.

Based around NVIDIA Quadro GPUs with Pascal and Turing architecture, our Condor GPGPU and video capture cards deliver powerful data processing capabilities for video stabilization, graphics processing, terrain analysis, object tracking, and 3D visualization, as well as machine learning and artificial intelligence.

Condor GR5-RTX5000 3U VPX GPGPU Card for Drone image processingCondor GR5-RTX5000
3U VPX NVIDIA Turing-based graphics & GPGPU card with quad video outputs

Condor NVP2102AxX XMC Graphics & Drone Video Capture CardCondor NVP2102AxX
XMC NVIDIA Quadro Pascal-based graphics & Analog/Digital Video Capture Card with 3G-SDI & CVBS I/O

Condor NVP2102xX XMC Graphics & Video Capture BoardCondor NVP2102xX
XMC NVIDIA Quadro Pascal-based graphics & video capture card with 3G-SDI I/O

Condor NVP2000xPF XMC Graphics & GPGPU CardCondor NVP2000xPF
XMC NVIDIA Quadro Pascal-based graphics & GPGPU card with rear & front DVI video outputs

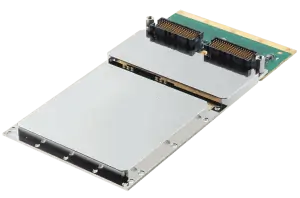

Condor NVP2000xX Rugged XMC graphics & GPGPU cardCondor NVP2000xX
XMC NVIDIA Quadro Pascal-based graphics & GPGPU card with three DisplayPort outputs

Condor GR5-P2000 3U VPX & GPGPU Processing CardCondor GR5-P2000
3U VPX NVIDIA Quadro Pascal-based graphics & GPGPU card with DVI/DP outputs

Condor GR4 PCIe Rugged fanless PCIe graphics, GPGPU & video capture cardCondor GR4 PCIe
PCIe fanless NVIDIA Quadro Pascal-based GPGPU & video capture card with quad 3G-SDI I/O

Condor GR4-P5000 3U VPX Graphics & Drone Video Capture CardCondor GR4-P5000
3U VPX NVIDIA Quadro Pascal-based graphics & video capture card with quad 3G-SDI I/O

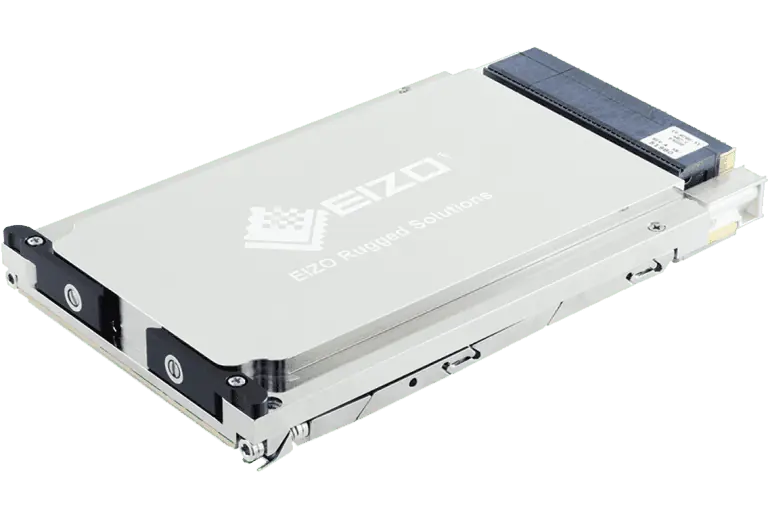

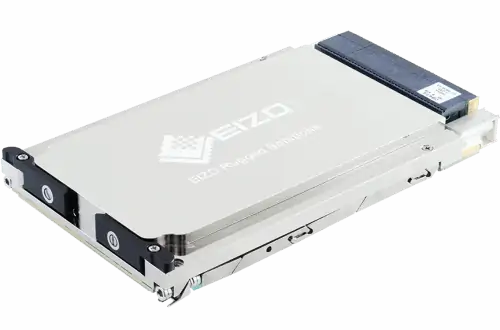

Condor GR2-P5000 3U VPX Rugged 3U VPX graphics & GPGPU cardCondor GR2-P5000
3U VPX NVIDIA Quadro Pascal-based graphics & GPGPU card with DVI & DisplayPort outputs

Condor GR4-P3000 3U VPX Rugged 3U VPX graphics, GPGPU & video capture cardCondor GR4-P3000
3U VPX NVIDIA Quadro Pascal-based GPGPU & video capture card with 3G-SDI I/O & DisplayPort output

3U VPX Graphics & Video Capture Solutions

Video and graphics processing for UAVs and drones

We offer a range of rugged 3U VPX form factor GPU processing cards for high-performance unmanned systems applications such as image analysis, image enhancement, 360° video stitching, and sensor fusion. Our 3U VPX solutions support CUDA and OpenCL and are customizable with a variety of I/O configurations.

Condor GR5-RTX5000 3U VPX GPGPU Card for Drone image processingCondor GR5-RTX5000
3U VPX NVIDIA Turing-based graphics & GPGPU card with quad video outputs

Condor GR5-P2000 3U VPX & GPGPU Processing CardCondor GR5-P2000
3U VPX NVIDIA Quadro Pascal-based graphics & GPGPU card with DVI/DP outputs

Condor GR4-P5000 3U VPX Graphics & Drone Video Capture CardCondor GR4-P5000
3U VPX NVIDIA Quadro Pascal-based graphics & video capture card with quad 3G-SDI I/O

Condor GR2-P5000 3U VPX Rugged 3U VPX graphics & GPGPU cardCondor GR2-P5000
3U VPX NVIDIA Quadro Pascal-based graphics & GPGPU card with DVI & DisplayPort outputs

Condor GR4-P3000 3U VPX Rugged 3U VPX graphics, GPGPU & video capture cardCondor GR4-P3000
3U VPX NVIDIA Quadro Pascal-based GPGPU & video capture card with 3G-SDI I/O & DisplayPort output

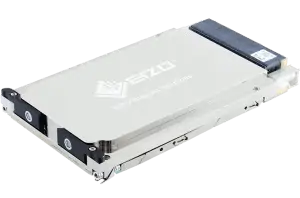

Condor GR2-P3000 3U VPX Rugged 3U VPX Graphics & GPGPU cardCondor GR2-P3000
3U VPX NVIDIA Quadro Pascal-based GPU card with DVI & DisplayPort outputs

Condor 4000 3U VPX AMD Radeon-based graphics & GPGPU cardCondor 4000
3U VPX AMD Radeon-based graphics & GPGPU card with DVI & DisplayPort outputs

Condor VPX-H265-SDI 3U VPX H.265/H.264 video encoder & streaming card Condor VPX-H265-SDI
3U VPX H.265/H.264 video encoder & streaming card with two 3G-SDI video inputs

XMC Graphics & Video Capture Solutions

Rugged XMC form factor cards for aerospace & defense

We provide a variety of rugged XMC form factor graphics and video capture cards that can be seamlessly integrated into drones and unmanned systems. Delivering the highest performance for demanding military and aerospace applications, our XMC solutions support CUDA and OpenCL and are customizable with a variety of I/O configurations.

Condor NVP2102AxX XMC Graphics & Drone Video Capture CardCondor NVP2102AxX
XMC NVIDIA Quadro Pascal-based graphics & Analog/Digital Video Capture Card with 3G-SDI & CVBS I/O

Condor NVP2102xX XMC Graphics & Video Capture BoardCondor NVP2102xX
XMC NVIDIA Quadro Pascal-based graphics & video capture card with 3G-SDI I/O

Condor NVP2000xPF XMC Graphics & GPGPU CardCondor NVP2000xPF
XMC NVIDIA Quadro Pascal-based graphics & GPGPU card with rear & front DVI video outputs

Condor NVP2000xX Rugged XMC graphics & GPGPU cardCondor NVP2000xX
XMC NVIDIA Quadro Pascal-based graphics & GPGPU card with three DisplayPort outputs

Condor 4108xX XMC Graphics & GPGPU CardCondor 4108xX
XMC AMD Radeon-based graphics & video capture card with two ARINC 818 video

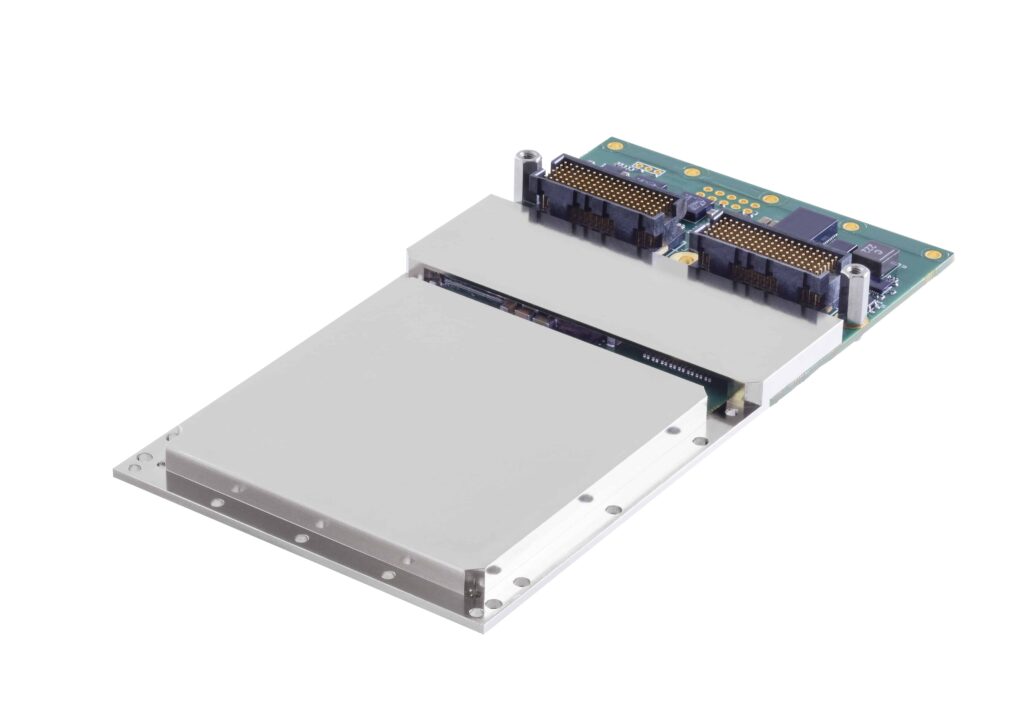

Condor 4107xX XMC Graphics & GPGPU CardCondor 4107xX
XMC AMD Radeon-based graphics & video capture card with two 3G-SDI I/O

Condor VC102x H.264 Video Capture, Encoding & Streaming XMC CardCondor VC102x
XMC raw video capture & H.264 encoder card with HD-SDI/composite video inputs

Video Recording, Data Acquisition & Streaming

Embedded graphics & video cards for drones and unmanned systems

We provide a wide range of embedded cards and products for high-reliability, extreme low-latency video and data acquisition, recording and streaming. Our low-SWaP products are available in XMC, VPX, or PCIe form factors and can handle a variety of video formats, including:

  • SDI
  • DisplayPort
  • DVI
  • RGB/VGA/RS-343
  • CVBS (NTSC/PAL/RS-170)
  • ARINC 818
  • CoaXPress
  • STANAG 3350​

In addition to being an NVIDIA Preferred Partner, we are also an AMD Embedded Partner, providing AMD Radeon-based solutions for graphics-intensive defense and aerospace applications.

AMD Radeon-based solutions
NVIDIA Preferred Partner

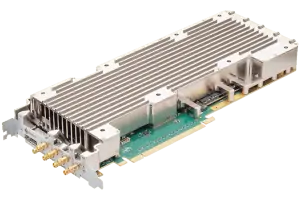

Condor GR4 PCIe Rugged fanless PCIe graphics, GPGPU & video capture cardCondor GR4 PCIe
PCIe fanless NVIDIA Quadro Pascal-based GPGPU & video capture card with quad 3G-SDI I/O

Condor GR4-P5000 3U VPX Graphics & Drone Video Capture CardCondor GR4-P5000
3U VPX NVIDIA Quadro Pascal-based graphics & video capture card with quad 3G-SDI I/O

Condor GR5-RTX5000 3U VPX GPGPU Card for Drone image processingCondor GR5-RTX5000
3U VPX NVIDIA Turing-based graphics & GPGPU card with quad video outputs

Condor NVP2102AxX XMC Graphics & Drone Video Capture CardCondor NVP2102AxX
XMC NVIDIA Quadro Pascal-based graphics & Analog/Digital Video Capture Card with 3G-SDI & CVBS I/O

Condor NVP2102xX XMC Graphics & Video Capture BoardCondor NVP2102xX
XMC NVIDIA Quadro Pascal-based graphics & video capture card with 3G-SDI I/O

Condor NVP2000xPF XMC Graphics & GPGPU CardCondor NVP2000xPF
XMC NVIDIA Quadro Pascal-based graphics & GPGPU card with rear & front DVI video outputs

Condor GR2-P5000 3U VPX Rugged 3U VPX graphics & GPGPU cardCondor GR2-P5000
3U VPX NVIDIA Quadro Pascal-based graphics & GPGPU card with DVI & DisplayPort outputs

Condor GR4-P3000 3U VPX Rugged 3U VPX graphics, GPGPU & video capture cardCondor GR4-P3000
3U VPX NVIDIA Quadro Pascal-based GPGPU & video capture card with 3G-SDI I/O & DisplayPort output

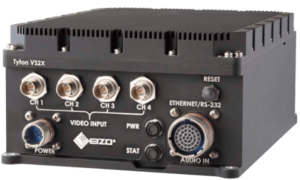

Tyton VS2X Rugged Video Encoder for Streaming

H.265 / H.264 video encoding & streaming for harsh environments

Tyton VS2X Rugged 3U VPX H.265-H.264 Encoding & Streaming SolutionThe Tyton VS2X is a rugged 3U VPX stand-alone H.265 (HEVC) / H.264 video/audio encoding and streaming solution for military and aerospace video transmission needs in challenging field environments.

It can encode and stream four 3G/HD/SD-SDI or CVBS (NTSC/PAL) video inputs simultaneously with the ability to accept and merge CoT/KLV or SDI VANC KLV metadata. Encoded video streams can be output simultaneously over 1 Gbps Ethernet and an optional USB 3.0 interface.

Rugged Video Converters & Splitters

Low-power video accessories for challenging environments

We provide a range of rugged standalone low-power video accessories, including 3G-SDI video splitters with signal regeneration for superior video quality, and video format converters for DisplayPort to traditional DVI or VGA.

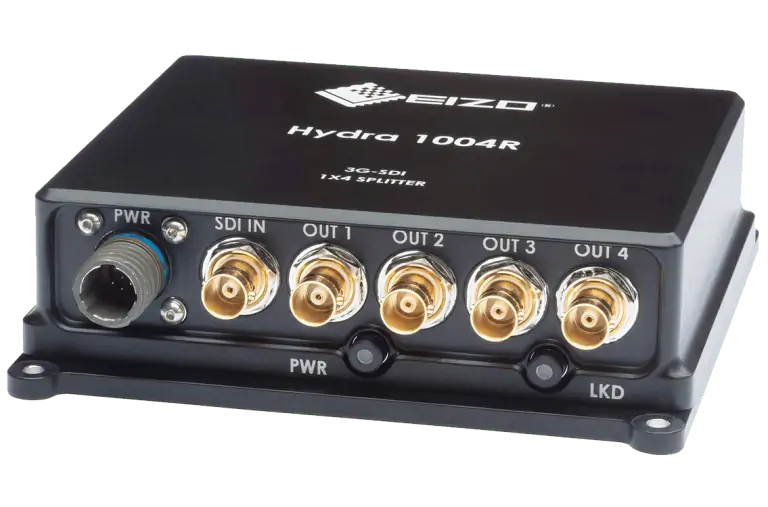

Hydra 1004R Rugged 3G-SDI 1x4 video splitterHydra 1004R
Rugged 3G-SDI 1×4 Video Splitter

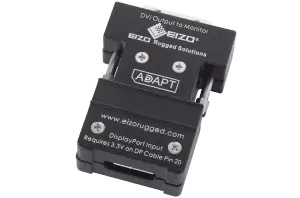

Adapt DVI Industrial DisplayPort to DVI Video ConverterAdapt DVI
Industrial DisplayPort to DVI Video Converter

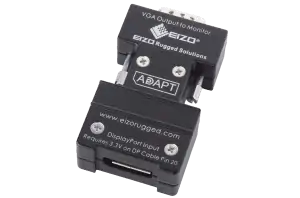

Adapt VGA Industrial DisplayPort to VGA Video ConverterAdapt VGA
Industrial DisplayPort to VGA Video Converter

Adapt-R DVI Rugged DisplayPort to DVI Video ConverterAdapt-R DVI
Rugged DisplayPort to DVI Video Converter

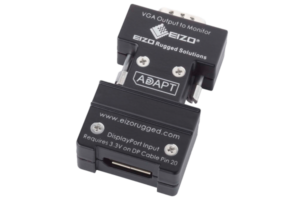

Adapt-R VGA Rugged DisplayPort to VGA Video ConverterAdapt-R VGA
Rugged DisplayPort to VGA Video Converter

Radar & Camera Acquisition, Processing & Tracking Solutions

Radar and sensor data processing & display solutions for USVs and unmanned systems

EIZO is the sole distributor in North America of Cambridge Pixel’s range of hardware and software solutions for radar and sensor data processing and display. The highly flexible products provide options for off-the-shelf solutions, or selected components that can be incorporated by systems integrators into a bespoke solution.

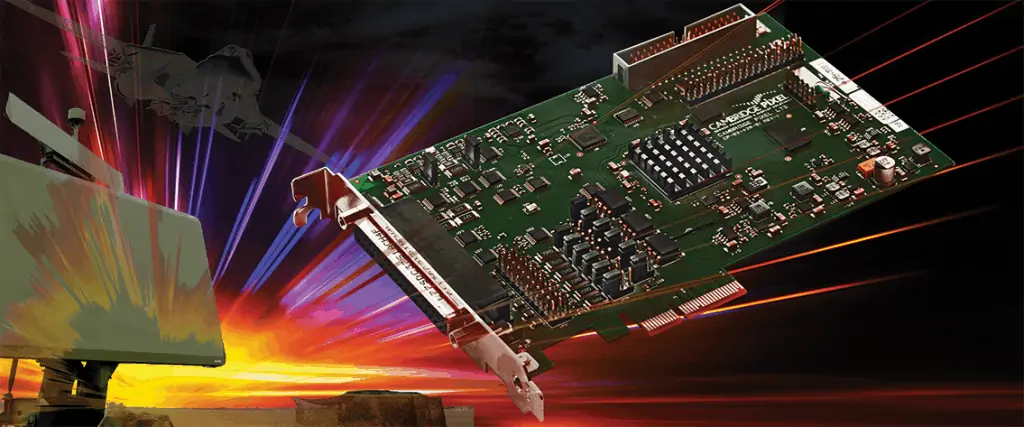

Cambridge Pixel Radar data processing

Cambridge Pixel’s products are highly suited to USV navigation, collision avoidance and target recognition. Their radar and video processing solutions provide a wide range of capabilities for USVs undertaking tasks such as minehunting, surveying and scientific research, including:

  • Interface options to a wide range of maritime and specialist radars
  • Highly configurable target tracking
  • Obstacle detection for autonomous navigation
  • Fusion of data from multiple radars with auxiliary data such as AIS and ADS-B
  • Camera control from radar, slew-to-cue and video-based tracking
  • Display applications for remote monitoring

Applications

Aerospace & Defense
embedded computing systems for mission-critical aviation and military applicationsOur high performance embedded computing (HPEC) systems combine rugged construction, powerful processing and superior I/O bandwidth to meet the needs of mission-critical aviation and military applications. Our technologies are ideal for deployment in a wide range of unmanned systems on land, at sea and in the air.

C5ISR
EIZO GPGPU technology for C5ISR operationsEIZO GPGPU technology provides high-speed data processing and real-time capabilities for C5ISR (Command, Control, Communications, Computers, Combat Systems, Intelligence, Surveillance, and Reconnaissance) operations. Our embedded systems support a wide range of applications including target tracking, 360° situational awareness, sensor fusion, and video and image processing.

GPGPU processing solutions for underwater and surface unmanned systemsNaval & Maritime
Our powerful GPGPU processing solutions are ideal for a variety of underwater and surface unmanned systems such as USVs, AUVs and UUVs, facilitating essential tasks such as sensor fusion, image enhancement, and target detection and tracking.
