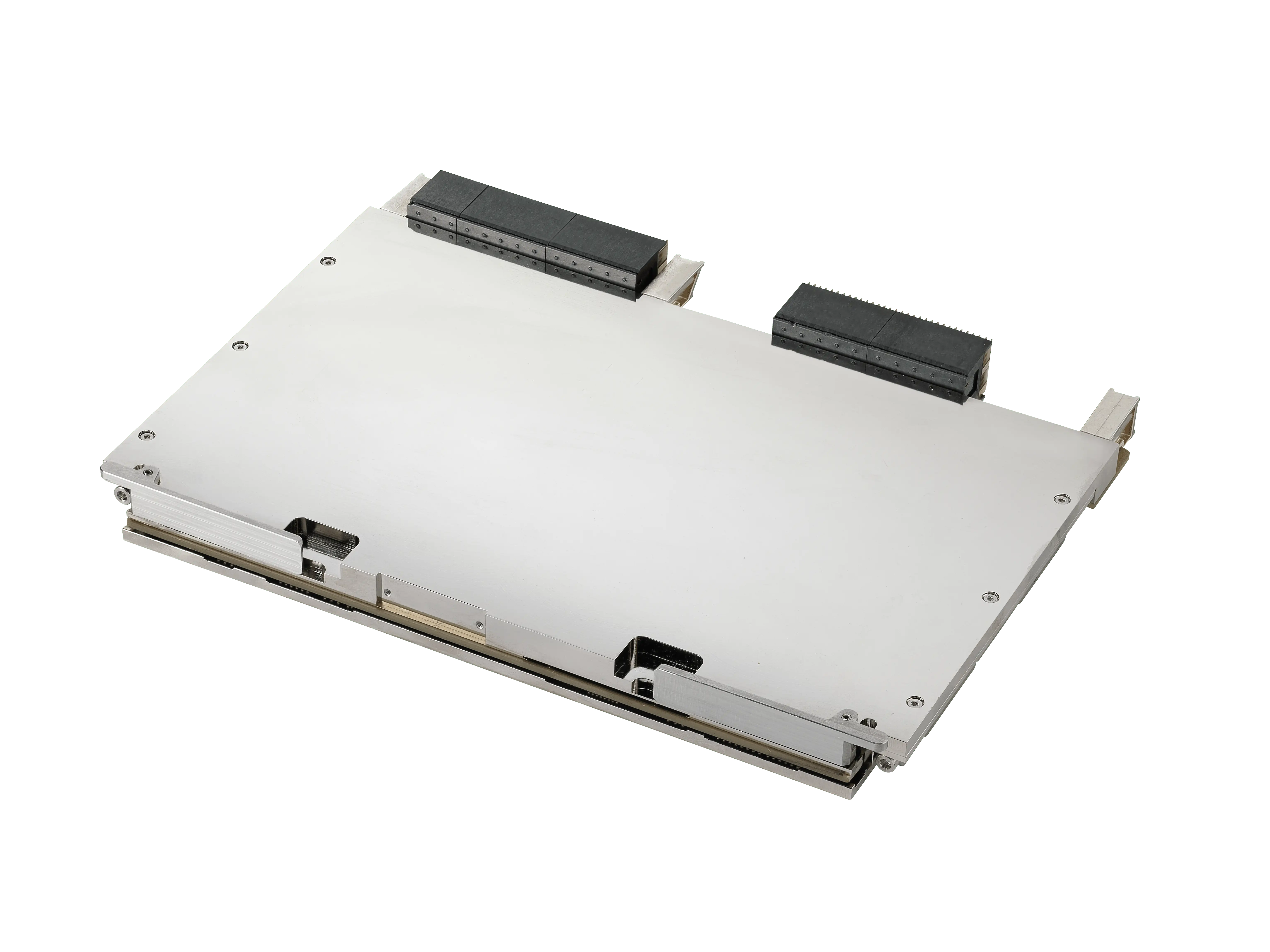

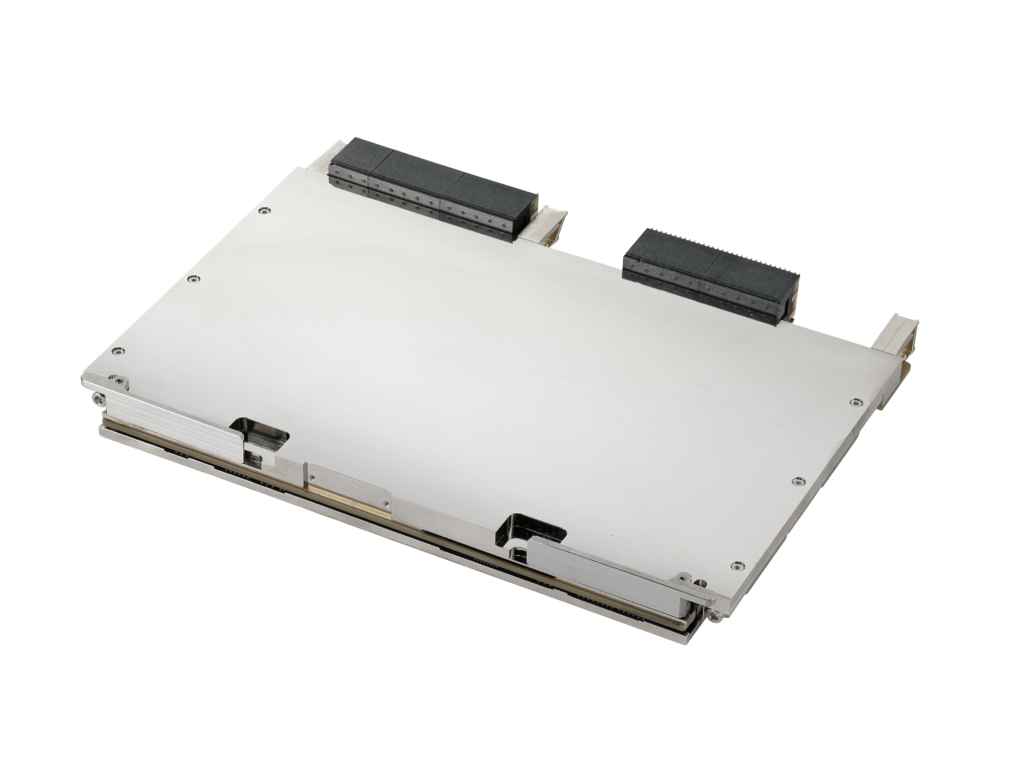

The Condor XR1 6U VPX Series is an OpenVPX VITA 65/SOSA-aligned high-performance computing & GPGPU OpenVPX card that hosts dual GPUs based on the NVIDIA Quadro RTX architecture. The Condor XR1 6U VPX is based on the NVIDIA® Turing™ architecture using either the NVIDIA RTX5000™ platform or NVIDIA RTX3000™ platform, offering exceptional graphics and GPGPU compute capability with CUDA® support, AI, and deep learning.
6U VPX card offers exceptional graphics and GPGPU compute capability with CUDA® support, AI, and deep learning, as each GPU nodes is equipped with 16 GB GDDR6 graphics memory, 3072 CUDA® cores, 384 Tensor cores, 48 RT cores, and delivers up to 9.49 TFLOPS floating-point 32 performance.
The Condor XR1 6U VPX card can be deployed in High-Performance Embedded Computing (HPEC) systems as this one device handles data and image processing from multiple sensors to perform activities such as image enhancement, image analysis, video stitching, remote sensing, and target acquisition.
- Up to 8 DisplayPort++ outputs
- 16 GB GDDR6
- 256-bit Memory Interface
- 448 GB/s Memory Bandwidth
- H.265 (HEVC) / H.264 (MPEG4/AVC) Hardware Encode & Decode
The XR1S 6U OpenVPX offers four front I/O DisplayPort++ video outputs and is designed to the SOSA-aligned profile: SLT6-PAY-4F2Q1H4U1T1S1S1TU2U2T1H-10.6.4. This product is available in MIL-STD air-cooled formats and supports PCI Express Gen 3.0 (16, 8, or 4 lane).
