Condor NVP2009AxX XMC Graphics & GPGPU with Quad Analog Outputs
Condor NVP2009AxX

XMC Graphics & GPGPU with Quad Analog Outputs

Visit Website Send Message
Saved
Save
Condor NVP2009AxX XMC Graphics & GPGPU with Quad Analog Outputs

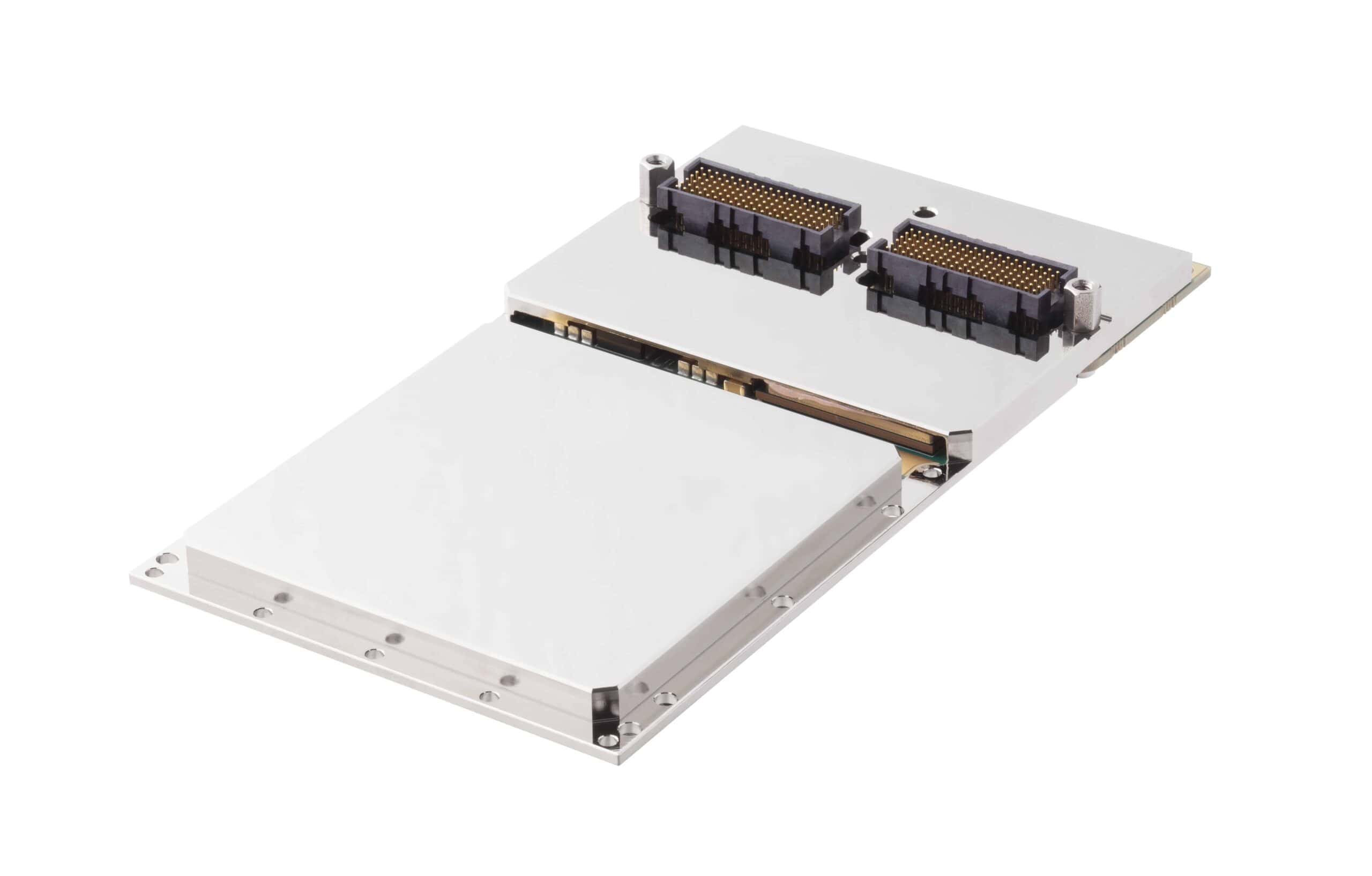

The Condor NVP2009AxX is a high-performance graphics card based on the NVIDIA Quadro P2000 GPU (chip-down) supporting both legacy and newer digital/analog video output formats. This XMC card supports CUDA and OpenCL based GPGPU computing, AI processing, deep learning, and H.265 (HEVC) / H.264 encoding & decoding.

The Condor NVP2009AxX supports four video outputs with customizable output combinations. This product is offered in Conduction Cooled or Air Cooled form factors with rear XMC I/O on Pn6. The rear XMC pin-out is compatible with VPX systems that follow VITA 46.9 x12d+x8d+24s. 3G-SDI and DisplayPort video outputs are available for interfacing with modern digital equipment. The analog CVBS (NTSC/PAL) and VGA (STANAG, RS-170, RS-343) video outputs can be configured to support single-ended or differential signaling. Differential signaling is a key enhancement over the traditional single-ended signaling to minimize system-induced signal noise. Supporting both signal types is critical for situations where modern and legacy interfaces must be supported on the platform.

The Condor NVP2009AxX is ideal for GPGPU applications such as C5ISR, situational awareness, signal intelligence (SIGINT), and includes machine learning and autonomy. NVIDIA NVENC (HW encode) and NVDEC (HW decode) can be used to hardware encode or decode video on the GPU. In addition, raw video data can be sent over PCIe directly to GPU memory for analysis/processing using NVIDIA GPUDirect™ RDMA. The card is available in conduction cooled or air cooled with rear XMC I/O on Pn6.
