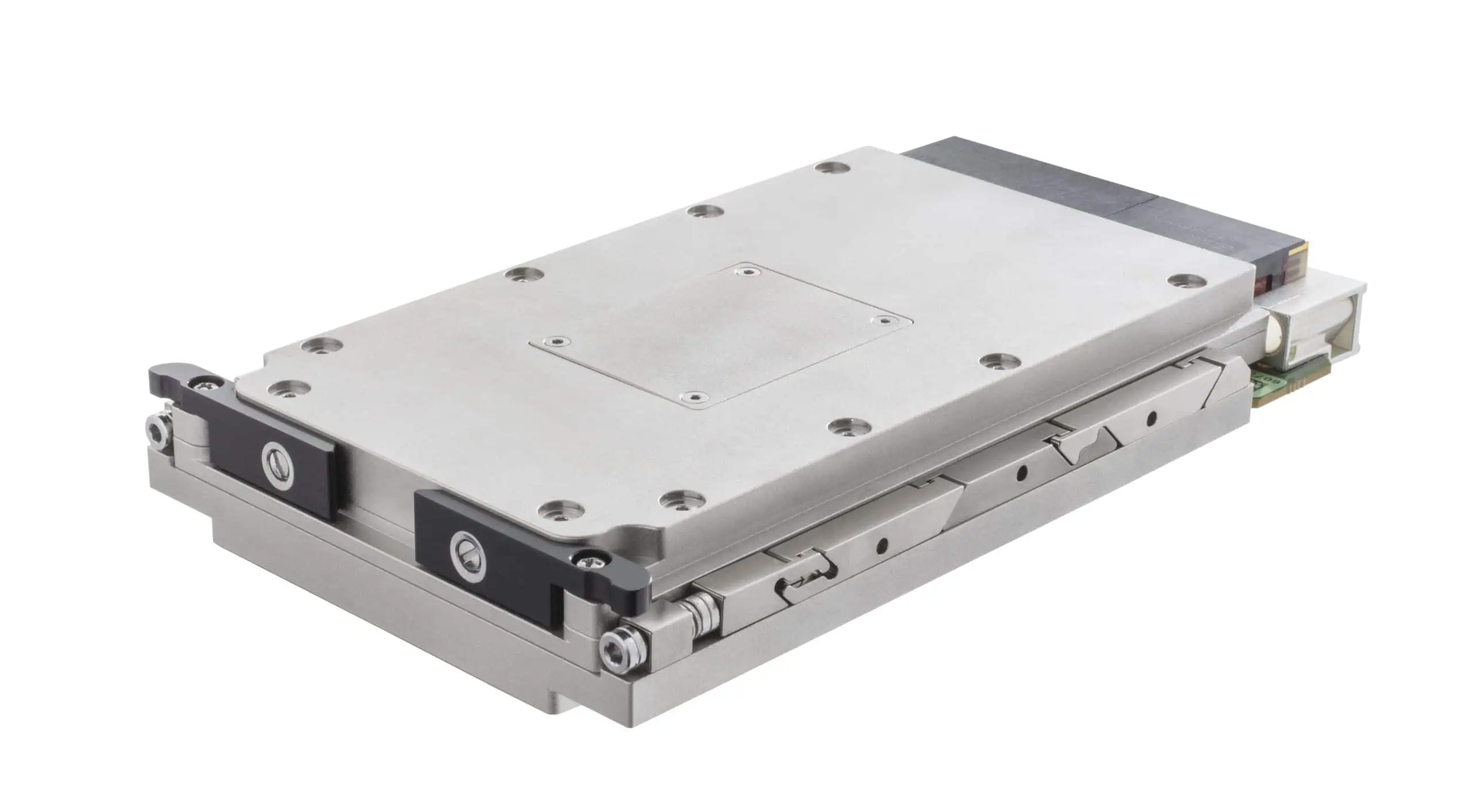

Condor AGX-IOX

The Condor AGX-IOX is a 3U VPX high-performance SBC based around the NVIDIA Jetson AGX Orin system-on-module and incorporating an NVIDIA Ampere GPU and an Arm Cortex-A78AE CPU. With 2048 NVIDIA CUDA cores, 64 Tensor Cores and up to 64GB LPDDR5 system memory, it is ideal for a wide range of at-the-edge drone and unmanned systems processing applications that require advanced AI and deep learning.

The rugged low-SWaP SBC is designed to support both VITA 46/65 and SOSA (Sensor Open System Architecture) slot profile 14.2.16. It provides a variety of advanced storage and networking capabilities, including 64GB eMMC internal storage, 10GbE (Gigabit Ethernet), and high-speed I/O, and also includes dedicated HEVC (H.265)/AVC (H.264) NVENC and NVDEC engines.

Specifications:

Power Consumption Module: 15-60W
Board Total: < 80W
CPU 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3, 2.2GHz
GPU 2048-core NVIDIA Ampere architecture GPU, 64 Tensor Cores
Memory 64 GB LPDDR5
256-bit Memory Interface up to 205 GB/s Memory Bandwidth
Storage 64GB eMMC 5.1 Internal Storage
Optional NVMe Storage (up to 2TB)
Video Outputs 1x DisplayPort 1.4
PCIe 4x PCIe Gen4 to P1A[1-4] Data Plane for Legacy Support
4x PCIe Gen4 to P1A[5-8] Expansion Plane
Networking 1x 10GbE Control Plane (10GBASE-KR)
1x 1GbE Control Plane (1GBASE-T)
I/O 1x USB3.2
1x USB2.0
2x RS-232 Serial
