High-Performance Video Graphics, GPGPU, AI/ML Processing & Display Solutions for C5ISR Applications
Condor NVP2102AxX Rugged XMC graphics and video capture card - NVIDIA Quadro Pascal P2000 GPU
Condor NVP2102AxX

Rugged XMC graphics and video capture card - NVIDIA Quadro Pascal P2000 GPU

Visit Website Contact
Saved
Save

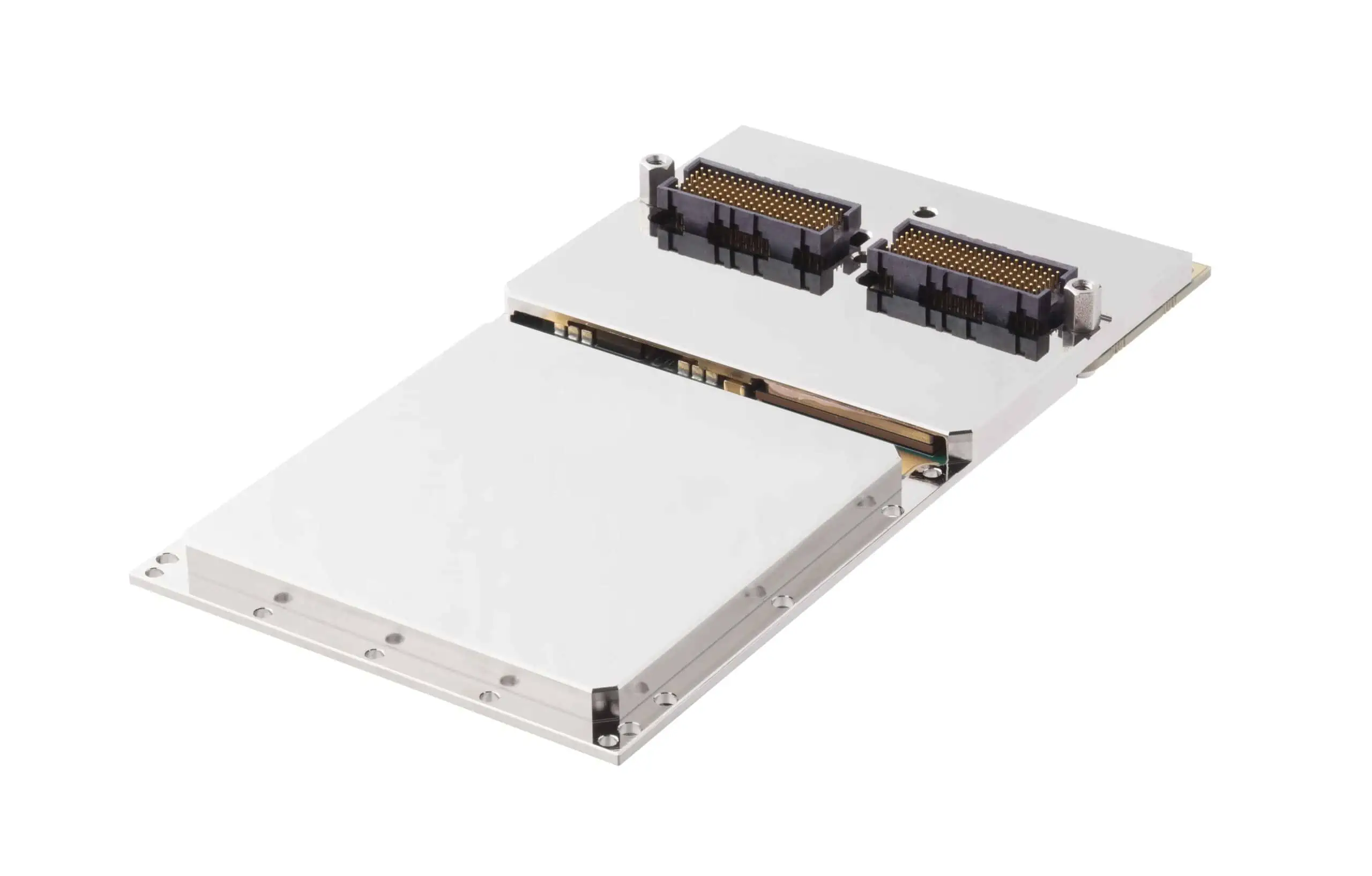

Condor NVP2102AxX MIl-STD XMC GPGPU/Video Capture & Processing card

The Condor NVP2102AxX is a rugged high-performance XMC graphics card that captures both analog & digital raw frame-by-frame audio/video and metadata with exceptionally low latency. This all-in-one solution provides the ability to simultaneously capture, process, display, encode, decode, and stream video data while supporting CUDA and OpenCL based GPGPU computing, AI processing, deep learning and H.265/H.264 encoding & decoding.

XMC Graphics & Analog/Digital Video Capture Card with 3G-SDI & CVBS I/O

The Condor NVP2102AxX card is very I/O intensive and supports four 3G-SDI inputs, two CVBS (NTSC/PAL), and two stereo line in audio inputs, as well as two 3G-SDI and two DVI or DisplayPort video outputs. SDI VANC KLV metadata insertion and extraction is also supported. This innovative XMC card is designed for applications that combine legacy video with newer digital video formats in high-end surveillance applications. The video capture (frame grabber) auto detects the input resolution and then transfers raw video frames directly to GPU memory or host memory using NVIDIA GPUDirect™ RDMA. In GPU memory, the applications can do processing such as image analysis, image enhancement, 360 degree video stitching, sensor fusion and target detection, using GPGPU (CUDA/OpenCL), all with very low latency. NVIDIA NVENC (HW encode) and NVDEC (HW decode) can be used to hardware encode or decode video on the GPU. The card is available in conduction or air cooled with rear XMC I/O on Pn6

EIZO Rugged Solutions Honored by 2021 Military & Aerospace Electronics Innovators Awards for Condor NVP2102AxX

Altamonte Springs, Florida, August 30, 2021 – EIZO Rugged Solutions Inc., a provider of ruggedized graphics and video products, announced today that the Condor NVP2102AxX was recognized among the best by the 2021 Military & Aerospace Electronics Innovators Awards. An esteemed and experienced panel of judges from the aerospace and defense community recognized EIZO Rugged Solutions as a Platinum honoree.
