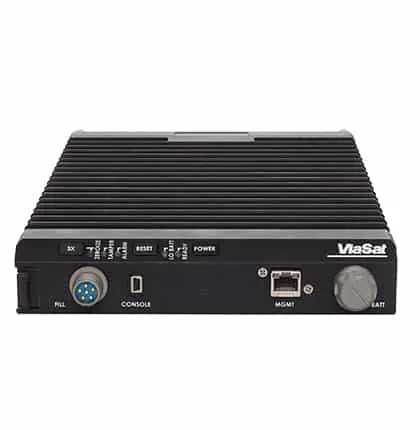

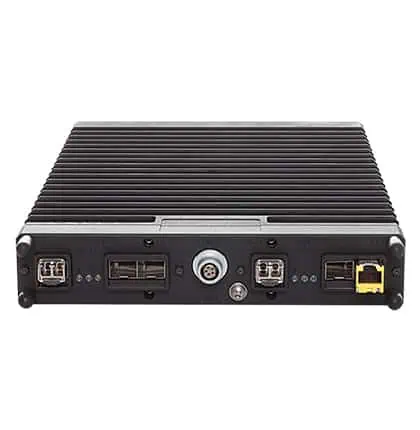

The KG-255X is a highly versatile NSA-certified Type 1 Inline Network Encryptor (INE) that can operate either as a Layer 3 HAIPE or Layer 2 EDE, providing secure IP encryption for up to TS/SCI communications and delivering up to 2 Gbps (1 Gbps aggregate) throughput. It supports standard copper interfaces as well as single- and multi-mode fiber SFPs.
With a software-programmable architecture, the device supports configurations for one-to-one, many-to-one and many-to-many multicast scenarios, improving flexibility and reducing administrative overhead. In HAIPE mode, it can interoperate with other compliant devices, and provides VLAN/Ethernet tunneling over Layer 3 networks for Layer 2 data. In EDE-CIS mode, it can interoperate directly with Viasat’s Type 1 high speed Ethernet encryptors.
The rugged unit features highly efficient thermal design and power management, and is designed to MIL-STD-810G standards and compliant with MIL-STD-1275D and MIL-STD-704F specifications for in-vehicle and airborne equipment.
Specifications:
| Dimensions (W x D x H) | 7.9 x 1.5 x 12.5” |
| Weight | 9 lbs |
| Power | 12-28 VDC, 40W typical |
| Protocols Supported | TCP, UDP, IPv4/IPv6 Dual Stack, ICMP, IGMP, ARP, DHCP, PIM |
| Networking Features | Dynamic IP addressing, dynamic key management, plaintext address confidentiality with dynamic peer discovery, embedded OSPF routing, support for “JUMBO” Ethernet frames |
| Algorithms |
ACC compliant Type 1 Suite A and/or Suite B (AES-EFF) or IPMEI |
| Predicted MTBF | 250,000 hrs |
| Predicted MTTF | 15 mins |
