InertialGate

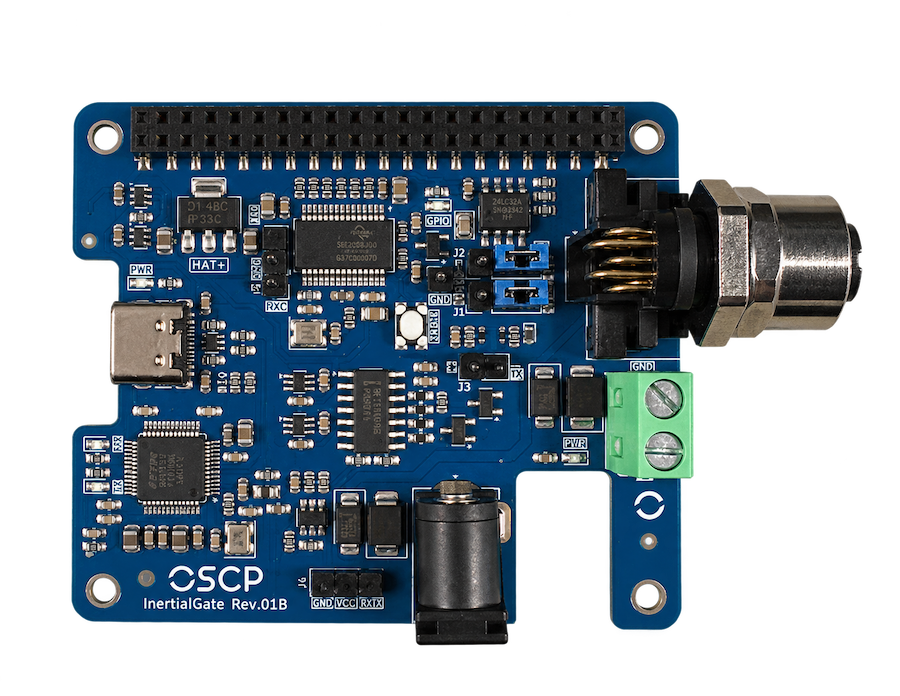

InertialGate is a compact evaluation and gateway board for OSCP’s MK2 family of inertial measurement units. It allows developers to connect an IMU to a computer, Raspberry Pi or custom host without first designing a dedicated interface, making it ideal for sensor testing and integration work.
The board provides RS-422 and CAN-FD connectivity, with RS-422 data available through a virtual COM port over USB-C. Raspberry Pi HAT+ compatibility and development headers provide access for embedded and custom platforms. Its plug-and-play operation allows an initial data set to be acquired without firmware development.
Specifications:
| Dimensions | 57 × 66 mm |
| Compatible IMUs | OSCP MK2 family |
| Interfaces and host connections | RS-422 and CAN-FD; USB-C virtual COM port for RS-422; Raspberry Pi HAT+; development headers |
| Raspberry Pi interfaces | RS-422 and CAN-FD |
