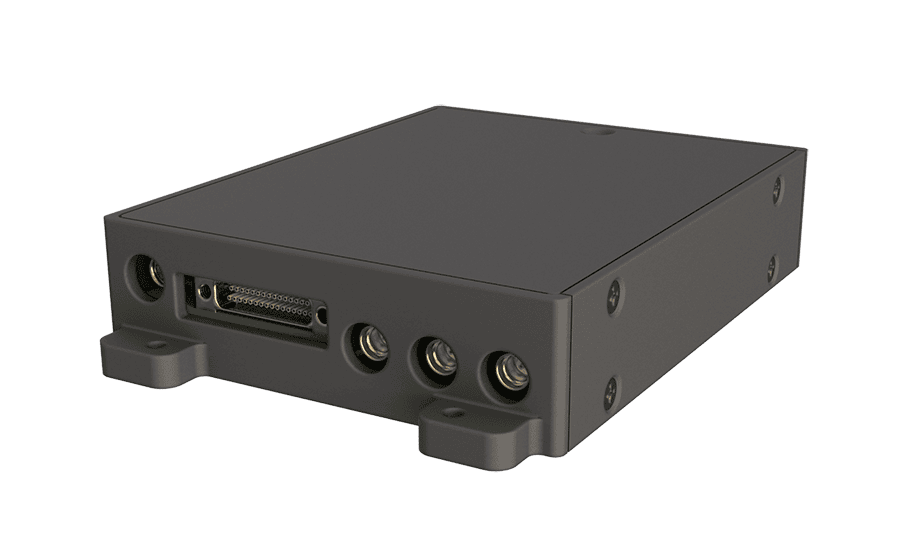

Coral
Maris-Tech's Coral is a miniature low-power edge computing solution that is ideal for drone-based surveillance and intelligence-gathering. Weighing less than 200g, it supports multiple inputs from HDMI, MIPI, HD-SDI, CVBS, IP camera, and Ethernet sources.
The rugged and lightweight unit offers H.265 1080p60 decode and 1080p30 encode capabilities, with a range of communication options including 4G/LTE and Gigabit Ethernet. With a power draw of less than 1.5W in single analog recording mode, it is highly suited to extended missions, SWaP-limited platforms, and covert applications.
Specifications:
| Dimensions: | 50 x 63 x 14 mm |
| Weight: | <200g |
| Power: | 2.8 – 18 VDC |
| SoC: | NXP i.MX 8M Plus |
| Memory: | 6GB LPDD4 |
| Storage: | 32GB EMMC MicroSD |
| Video Inputs: | Ethernet Analog RS170/NTSC/PAL HDSDI MIPI IP camera Ethernet & GbE |
| Interfaces: | USB-C RS-232/485 2x GPIO Audio mic 2x cellular antenna GPS antenna |
