Drone LiDAR & Airborne LiDAR Systems for UAV
By
Staff Writer Last updated: September 24th, 2024
Aerial LiDAR Scanners for Drones, UAV & UAS
Top Drone LiDAR manufacturers include: Teledyne Geospatial, Riegl, Yellowscan, LightWare and PolyExplore. Their airborne LiDAR systems are designed for use on drone platforms, UAVs (unmanned aerial vehicles) and UAS (unmanned aerial systems) and are used for 3D mapping, survey and inspection.

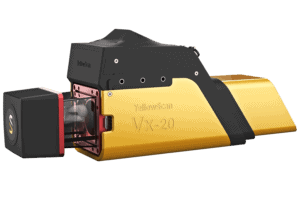

YellowScan-Vx20 UAV LiDAR
LiDAR Technology for Unmanned Systems
Lidar, or LiDAR (a portmanteau of light and radar, also interpreted as an acronym for “Light Detection And Ranging”), is a distance-measuring and imaging technology that uses pulses of light in the form of a laser beam from the ultraviolet, visible and infrared portions of the electromagnetic spectrum.
These pulses of light are reflected, typically via backscattering, by the object under measurement. The LiDAR sensor measures the time taken for the pulse reflection to return and can thus calculate the distance from the object.
Drone LiDAR Systems & Scanning Methods

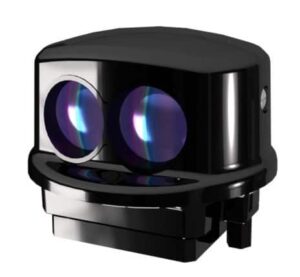

LightWare SF45 microLiDAR
There are two general methods of detection – incoherent or direct energy detection, which is used for amplitude measurements, and coherent detection, for phase-sensitive measurements. LiDAR can be used to scan a wide variety of materials and the wavelength of the emitted laser is varied to suit the target.
Drone-Mounted LiDAR Scanners
When combined with a GPS receiver, inertial measurement unit (IMU) and onboard computer, a LiDAR sensor can be installed on a drone or UAV and used to scan a large area, with tens of thousands of points per second being measured.
The reflection time interval data is post-processed, converted to distance and correlated with data from the GPS receiver and IMU, which provide highly accurate information on the unmanned aircraft’s position and attitude respectively. The resulting 3D point cloud can be used to build up a detailed image of the surveyed area and provide vital insights to decision-makers.

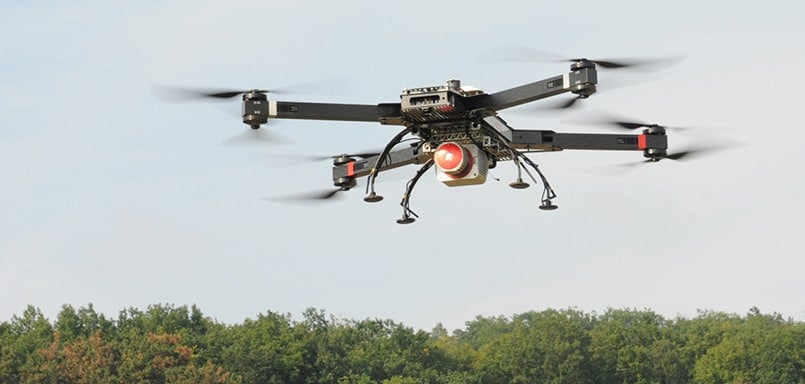

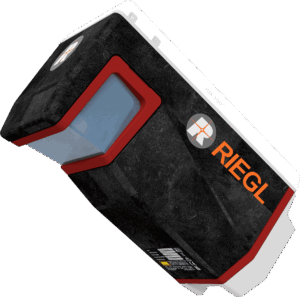

RiCOPTER VTOL drone LiDAR Systems for Mapping & Surveying by Riegl
Applications
What is lidar used for?

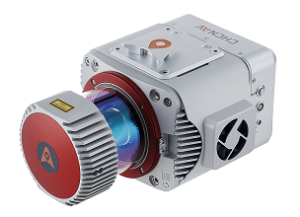

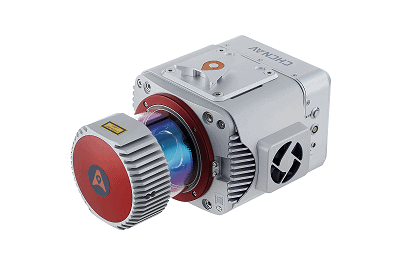

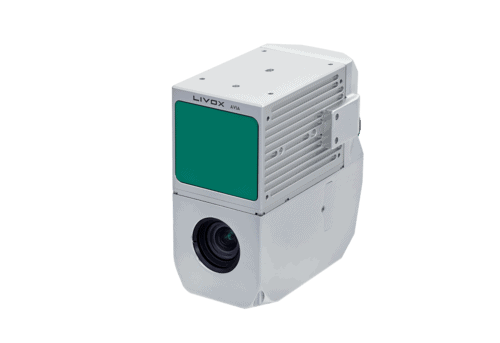

Long-range LiDAR scanning for UAV by CHC Navigation
LiDAR mapping and surveying is used to gather accurate, precise data on both manmade and natural environments. Applications include cartography, agriculture, forestry, meteorology, mining, environmental management, inspection of utility lines and transport networks, and many other fields.
LiDAR is also used in UAVs and other unmanned systems for obstacle detection, collision avoidance and safe automatic landing. It is currently one of the leading technologies being utilized in the development of autonomous driving vehicles and self-driving cars.
Pulses of light from an ultraviolet, visible or infrared laser beam are reflected, typically via backscattering, by an object under measurement. The LiDAR sensor measures the time taken between emission of the pulse and the detection of the pulse reflection, and can thus calculate the distance from the object.

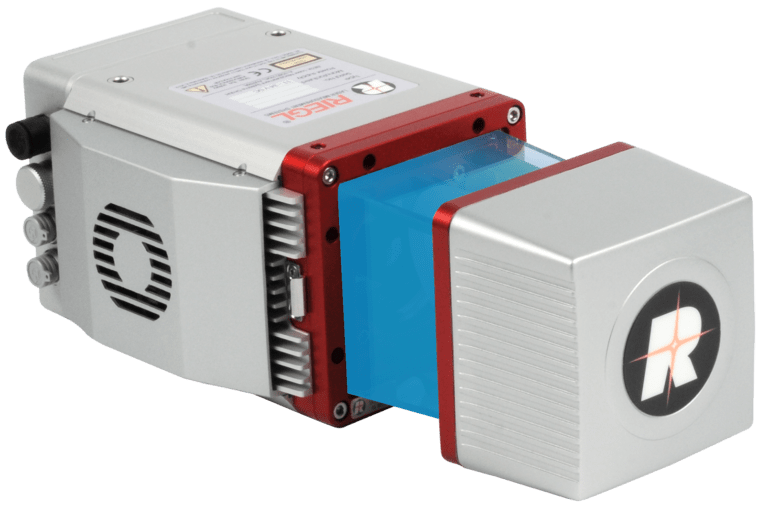

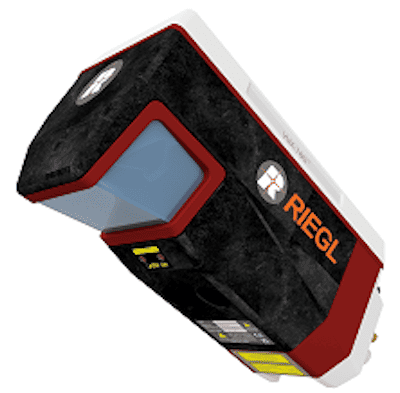

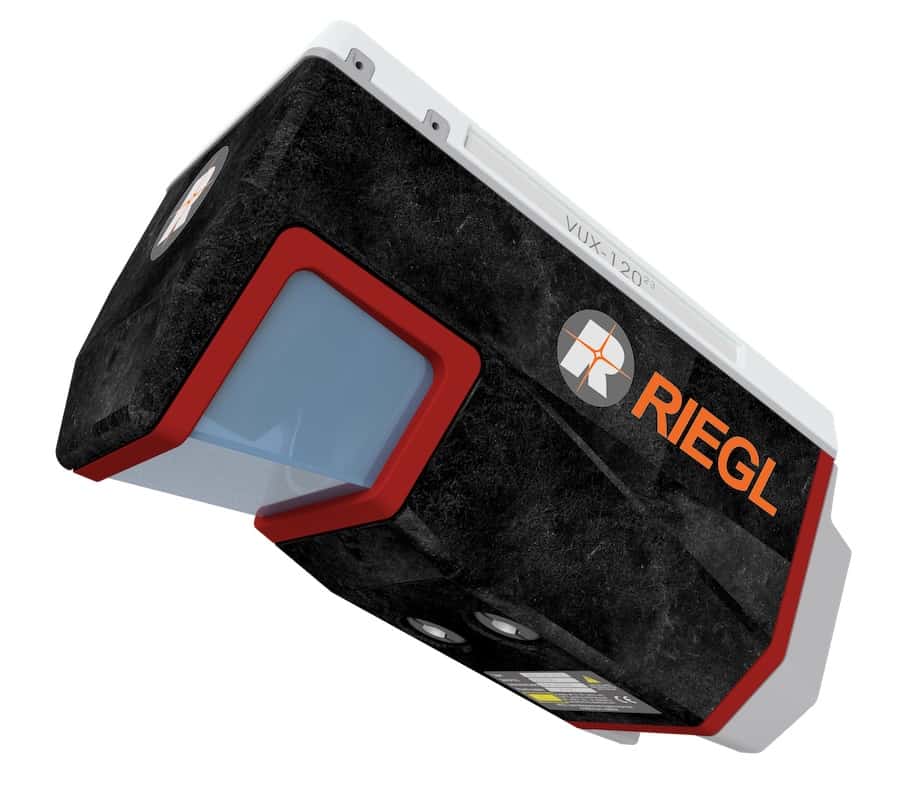

... a lightweight UAVLiDAR scanner that provides a 75-degree field of view, extremely high pulse... ...e-art Waveform-LiDAR technology, providing features such as echo digitization, online waveform...
RIEGL is set to exhibit its latest UAV-LiDAR solutions at XPONENTIAL Europe 2025, demonstrating advanced surveying technology and its capabilities for diverse mapping applications

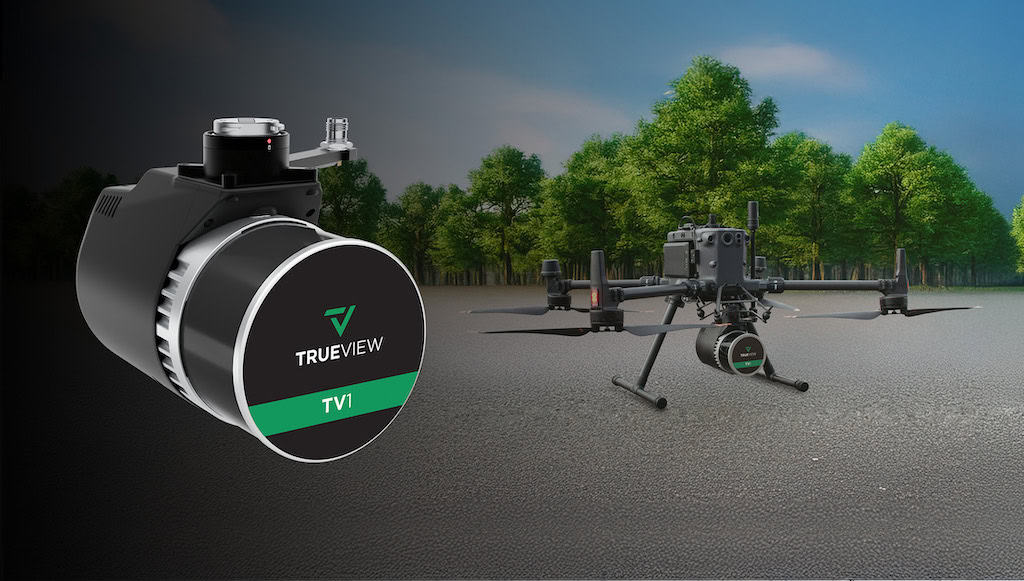

At Geo Week 2025, GeoCue launched TV1 Lite and the TV1 LiDAR scanners for drones, aiming to bring precision and affordability to the forefront of the geospatial industry
Draganfly and Volatus Aerospace collaborate to integrate advanced Bathymetric LiDAR with heavy-lift drones, delivering solutions for precise underwater mapping and improved efficiency in oil and gas exploration

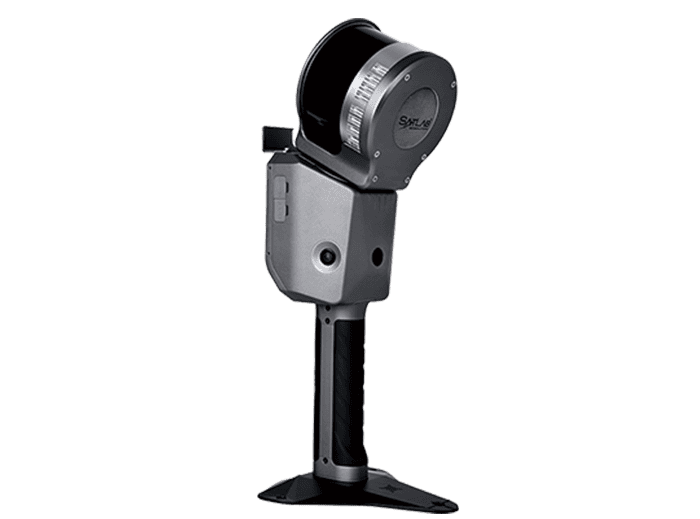

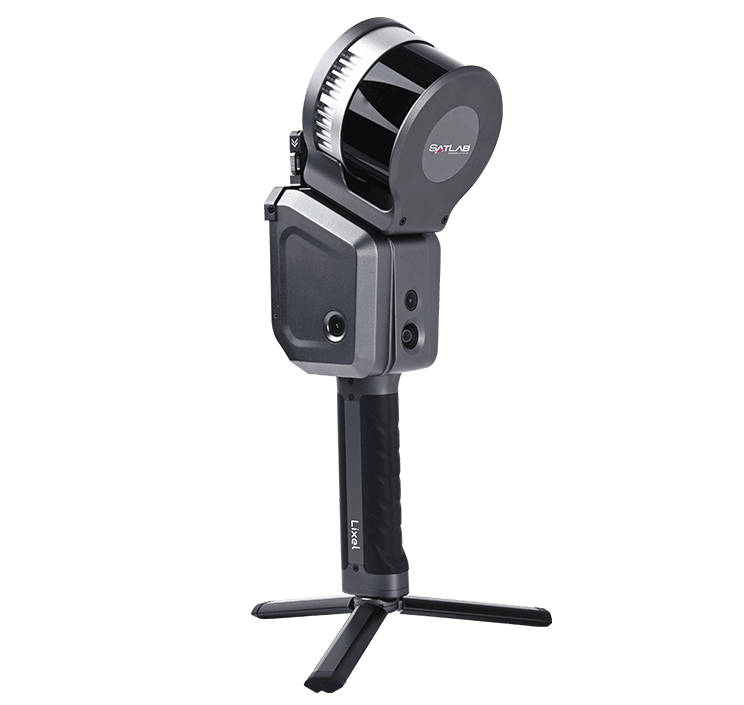

SatLab Geosolutions presents a powerful surveying approach combining the Apus UAV LiDAR with the Lixel X1 SLAM scanner to meet the demands of high-resolution, comprehensive topographic mapping

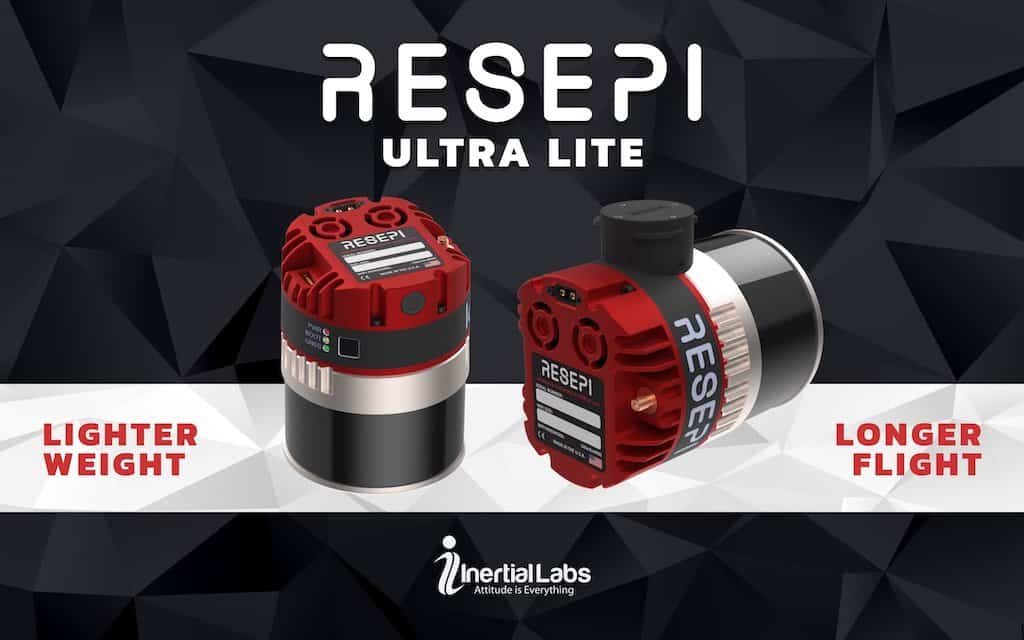

Inertial Labs’ new RESEPI Ultra LITE is the company’s lightest complete payload to feature both LiDAR and camera technology, offering ease of use, precision, and adaptability
