Cygnus Handheld SLAM Scanner

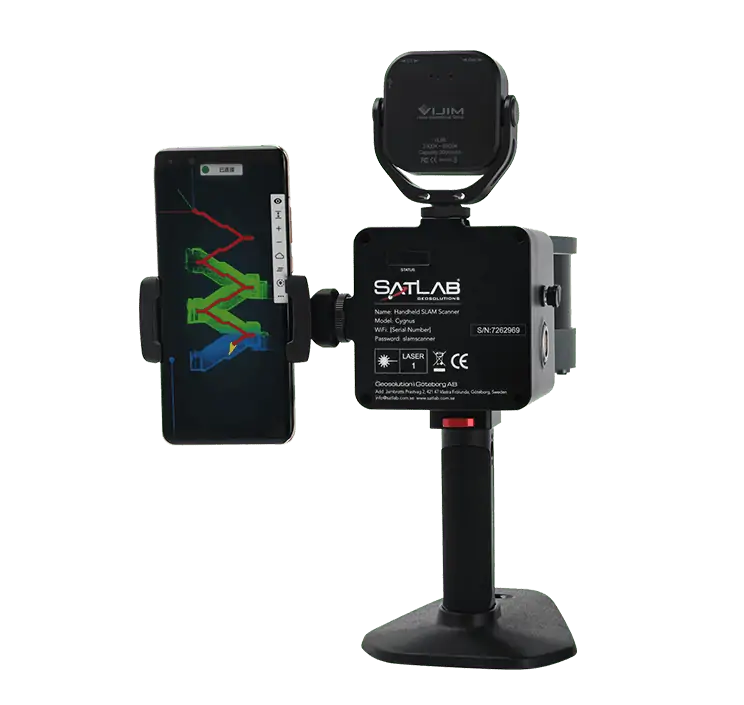

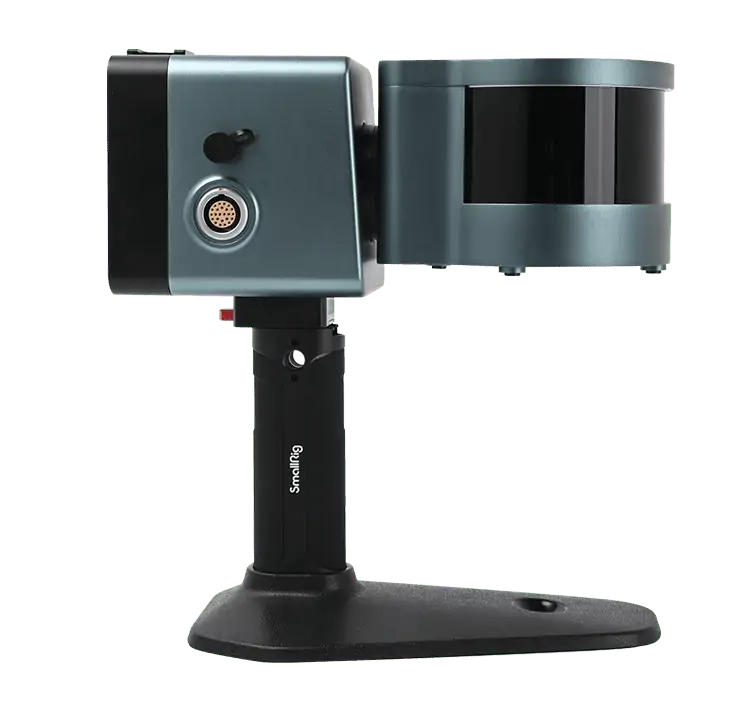

Cygnus is a mobile laser scanner for high-accuracy point cloud data gathering and 3D modelling, featuring state-of-the-art SLAM (Simultaneous Localization And Mapping) technology and powerful low-reflectivity range extension. Data processing and previewing can be performed in the field thanks to real-time decoding software, and exported immediately once the scan is complete.

The versatile system can be easily mounted to UAVs and mobile mapping vehicles, and is IP54-rated for durability in tough outdoor conditions. It is ideal for a wide range of LiDAR scanning applications, including: construction survey, environmental monitoring, utilities, mining, and modelling of indoor and GNSS-denied environments.

Dimensions 227 x 98 x 98 mm (scanner)
158 x 70 x 145 mm (data logger)
Weight 1.5 kg (scanner)
0.8 kg (data logger)
FOV 360 × 285°
Range 120m
Accuracy 0.5 - 2cm
Points 320,000/sec
Battery Life 4 hrs
