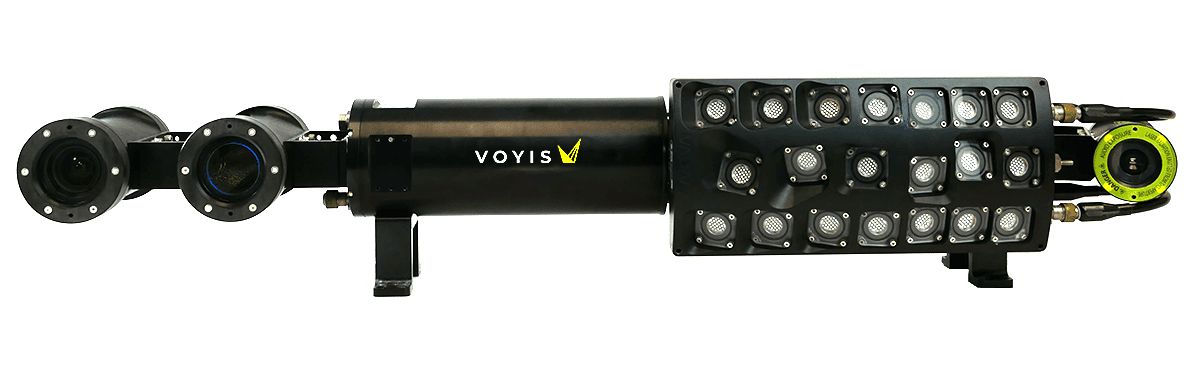

The Insight Micro from Voyis is a high-performance underwater laser scanner engineered specifically for seamless integration into compact subsea vehicles such as AUVs and inspection-class ROVs. Designed with a low-profile form factor and minimal power consumption (<50W), it supports dynamic 3D laser scanning with optional stills imaging to enable both quantitative and qualitative data capture in a single deployment. By leveraging real-time point cloud rendering through ViewLS software and native navigation synchronization, it delivers reliable, high-resolution spatial awareness in challenging marine environments.
Offered with 1000m or 4000m depth ratings and available in short (SR) and extended (XR) range configurations, the Insight Micro provides scanning capabilities from 0.7 to 7.0 meters. With 2464 points per line and up to 100 Hz laser-only operation, it ensures high-density mapping ideal for structural inspection, mission planning, and environmental baseline modeling. Its cable-free, storage-integrated architecture streamlines payload integration, while an included C++ API enables developers to build custom control solutions tailored to autonomous mission workflows.
| Scan Range: | 0.7m–5.0m (SR), 1.0m–7.0m (XR) |
| Profile Rate: | 50 Hz (Laser + 3Hz Stills), 100 Hz (Laser Only) |
| Points Per Line: | 2464 |
| Laser Class: | Class 3B, 448nm, <75mW, EN/IEC 60825-1:2014 |
| Data Formats: | Laser: .XYZ (CVS), LAS; Stills: .JPG, .TIFF |
| Depth Rating: | 1000m or 4000m |
| Power Consumption: | <50 Watts |
| Data Acquisition: | Real-time via ViewLS; C++ API included |
| Optional Imaging: | Integrated high-resolution stills camera |
