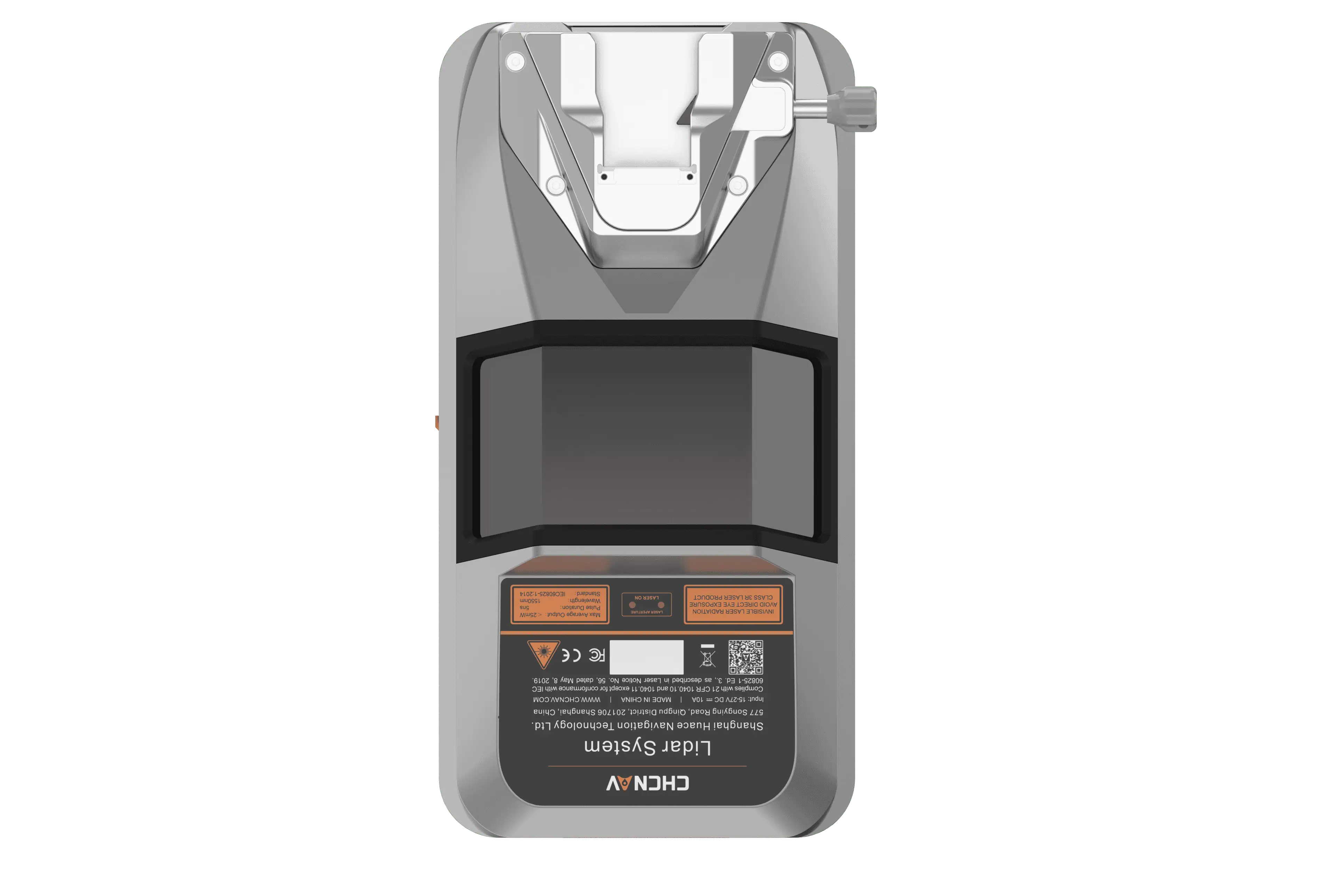

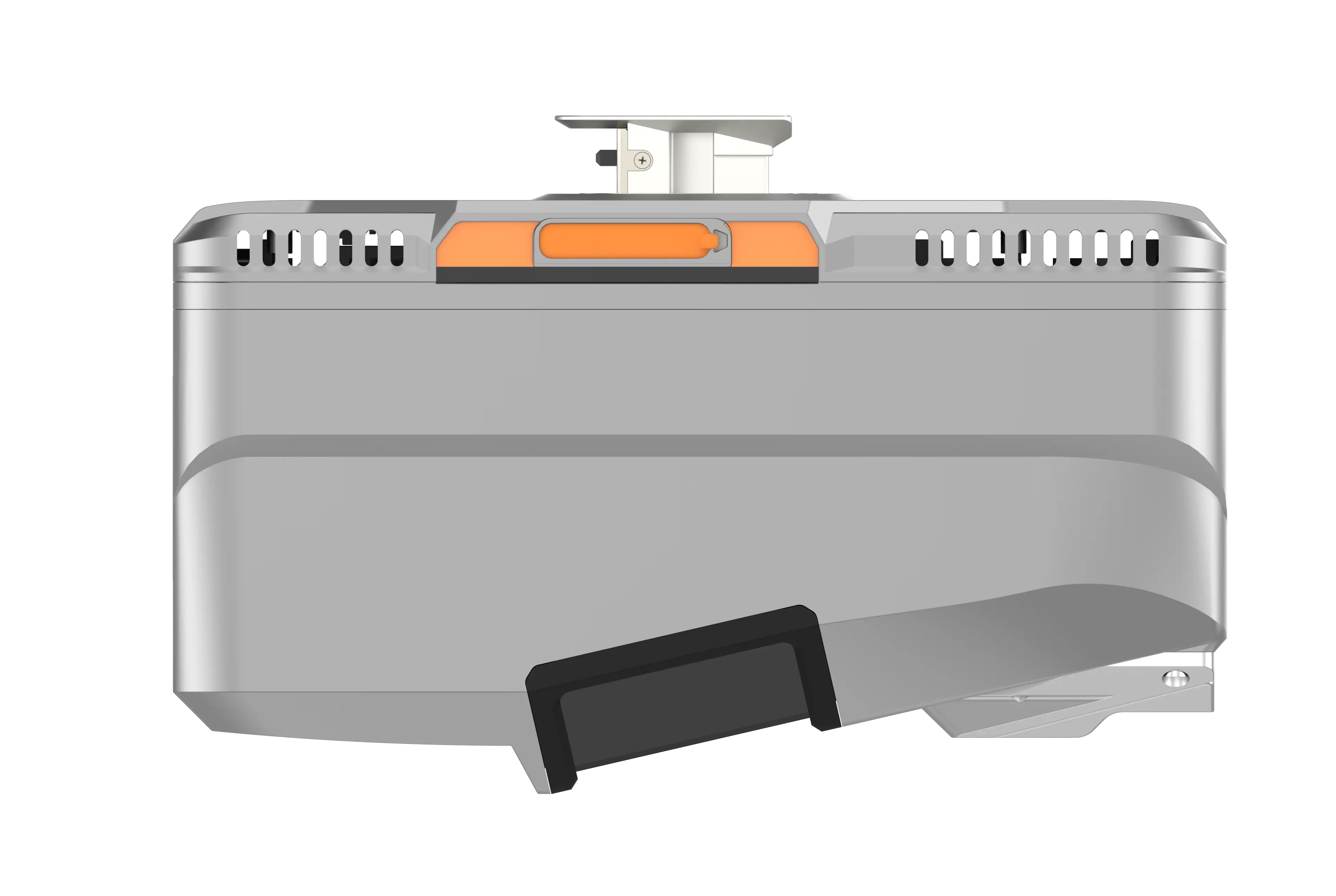

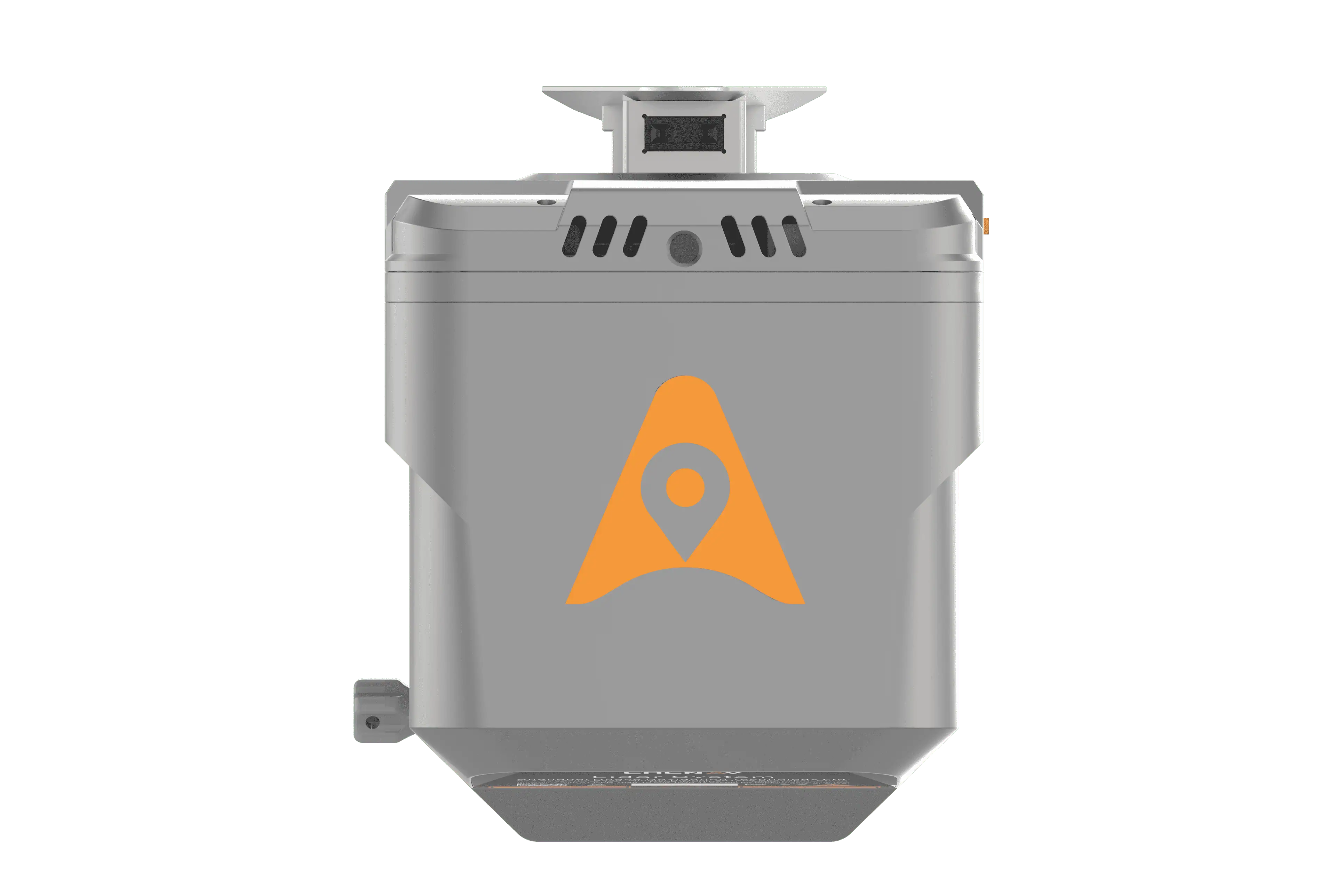

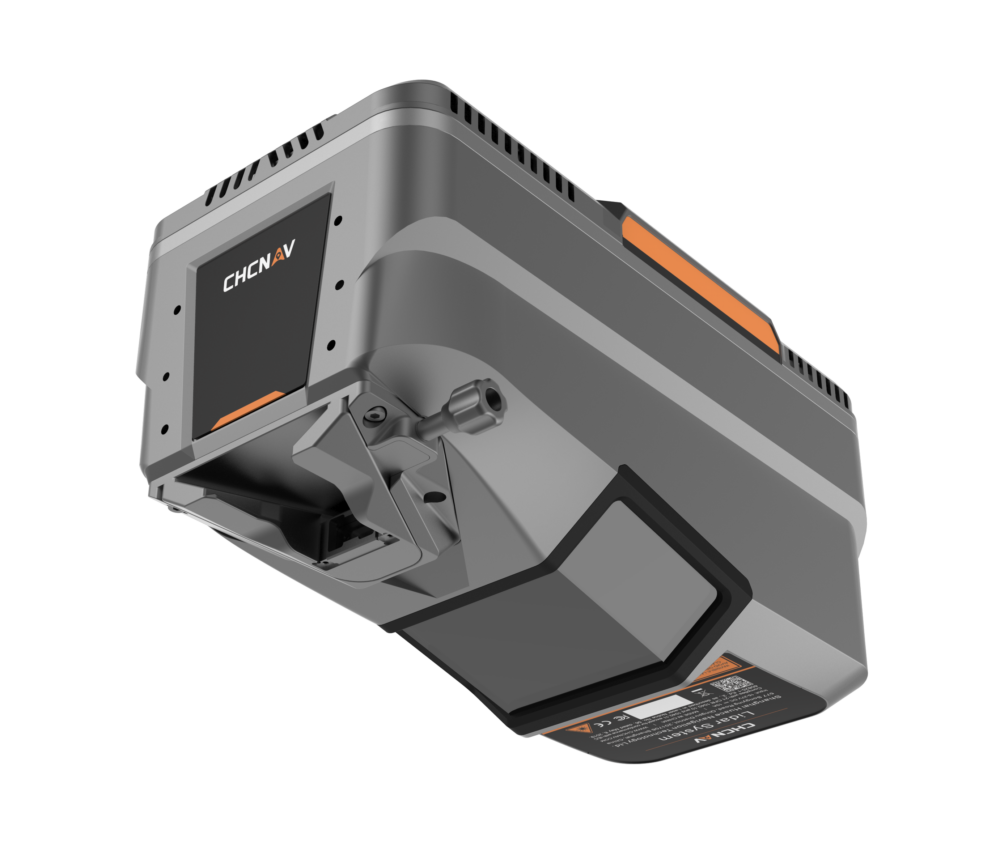

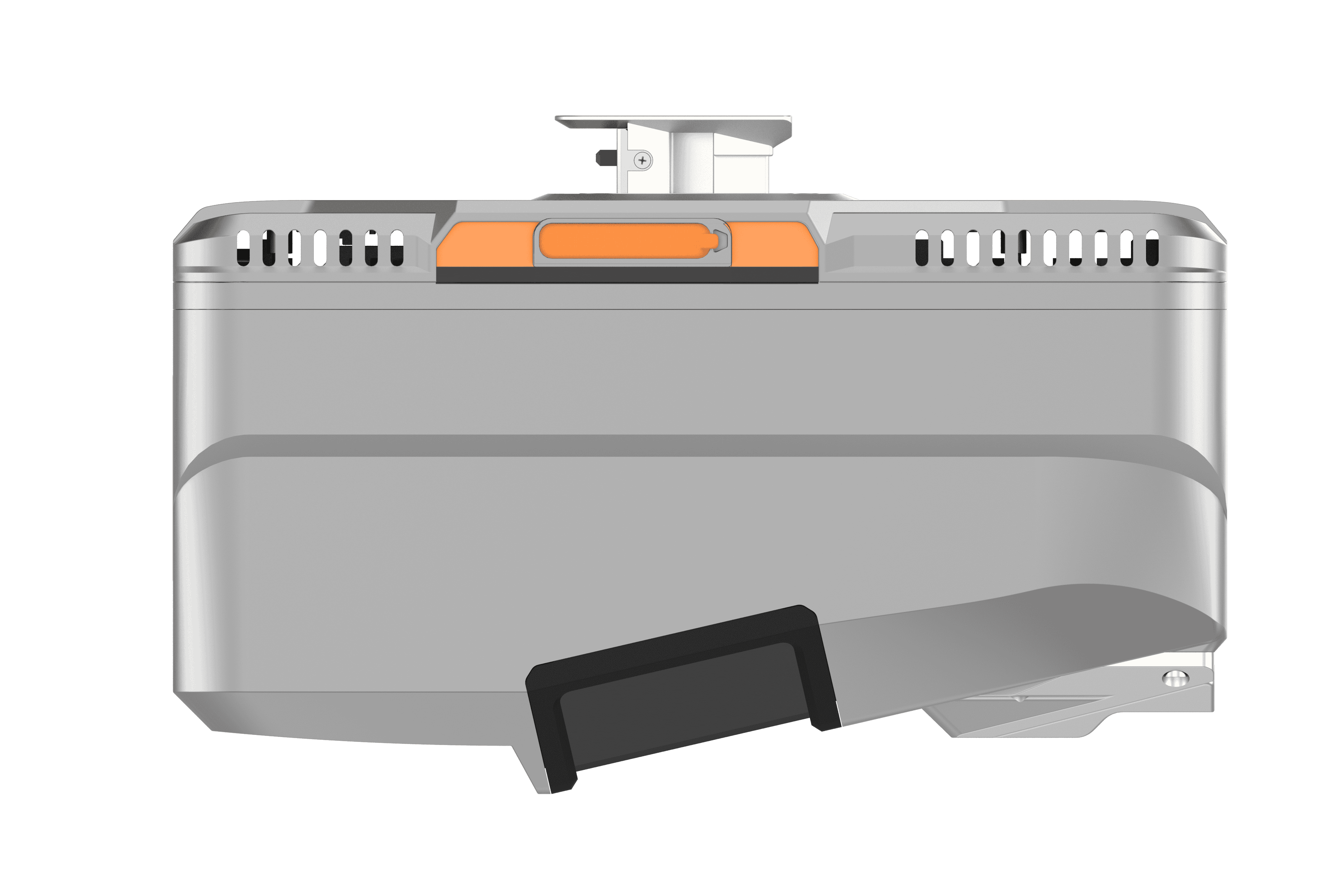

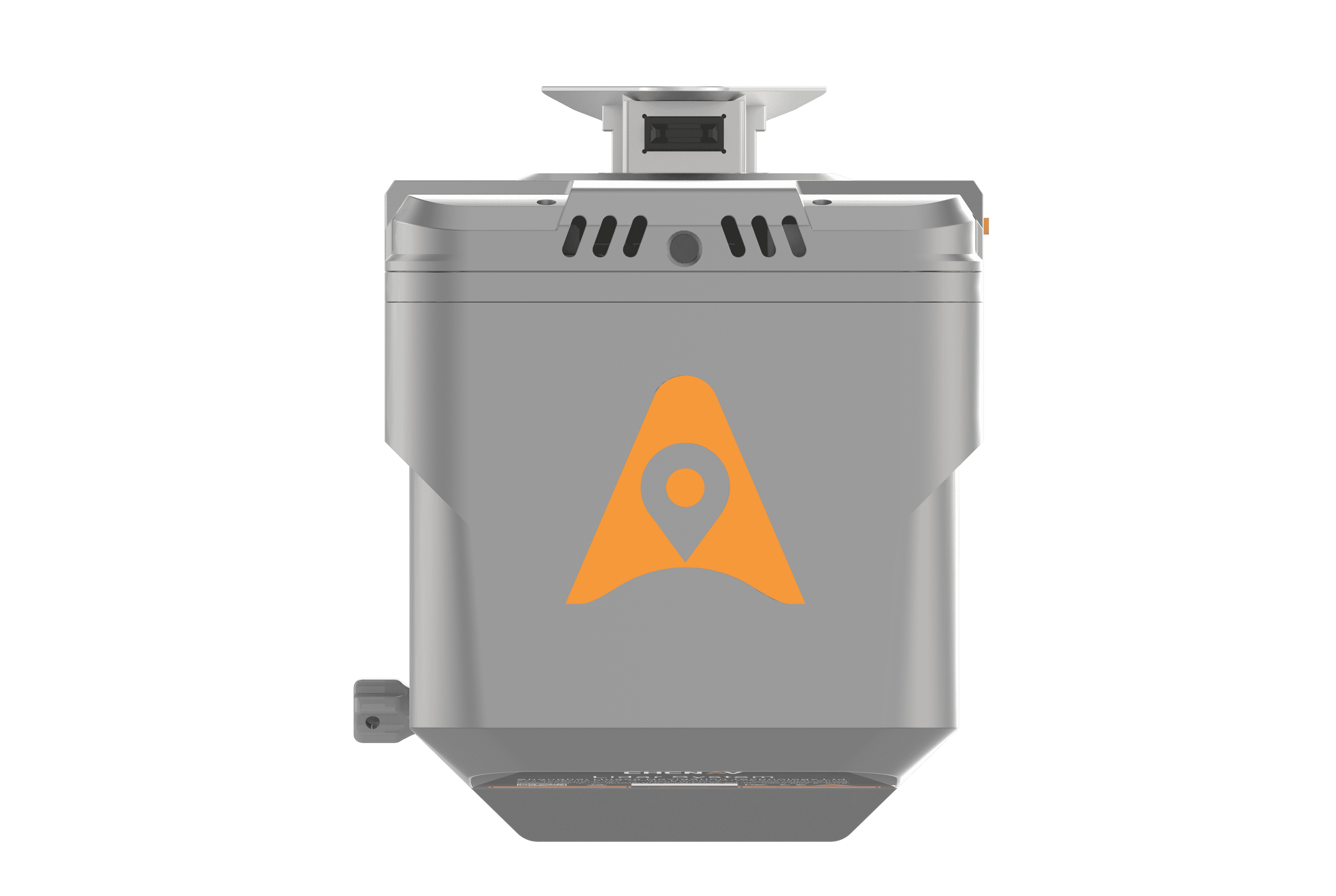

CHCNAV's AlphaAir 15 is a compact airborne LiDAR system that weighs just 2.5kg and can be integrated into a variety of fixed-wing, multirotor and helicopter UAV platforms. Providing high accuracy and extremely fast data acquisition rate, it is ideal for applications where detailed ground features need to be extracted from point cloud data, as well as for surveys in mountainous areas with significant elevation changes.
Featuring CHCNAV's patented tilted-prism technology, the AlphaAir 15 achieves scan speeds of up to 600 lines per second with up to 2 million pulses per second, resulting in extremely high-density point clouds that capture precise detail. The system can be integrated with a range of external cameras, including CHCNAV's 45 or 61 MP full-frame calibrated cameras and 130 MP half-frame oblique camera, as well as a variety of third-party options.
The AlphaAir 15 is easy to install, utilizing CHCNAV's unified Alphaport interface that provides quick and easy connection to power sources and cameras with just a single click.
Specifications:
Dimensions | 247 x 126 x 156 mm |
Weight | 2.5 kg |
Power Consumption | 60W |
Laser PRR | 100 kHz – 2 MHz |
Max Range |
1800m (100 kHz, ρ >80%) 900m (100 kHz, ρ >20%) |
Accuracy | 15 mm (1σ,@ 150 m) |
Precision | 5 mm (1σ,@ 150 m) |
FOV | 75o |
Scan Speed | 50 – 600 scans/sec (selectable) |
