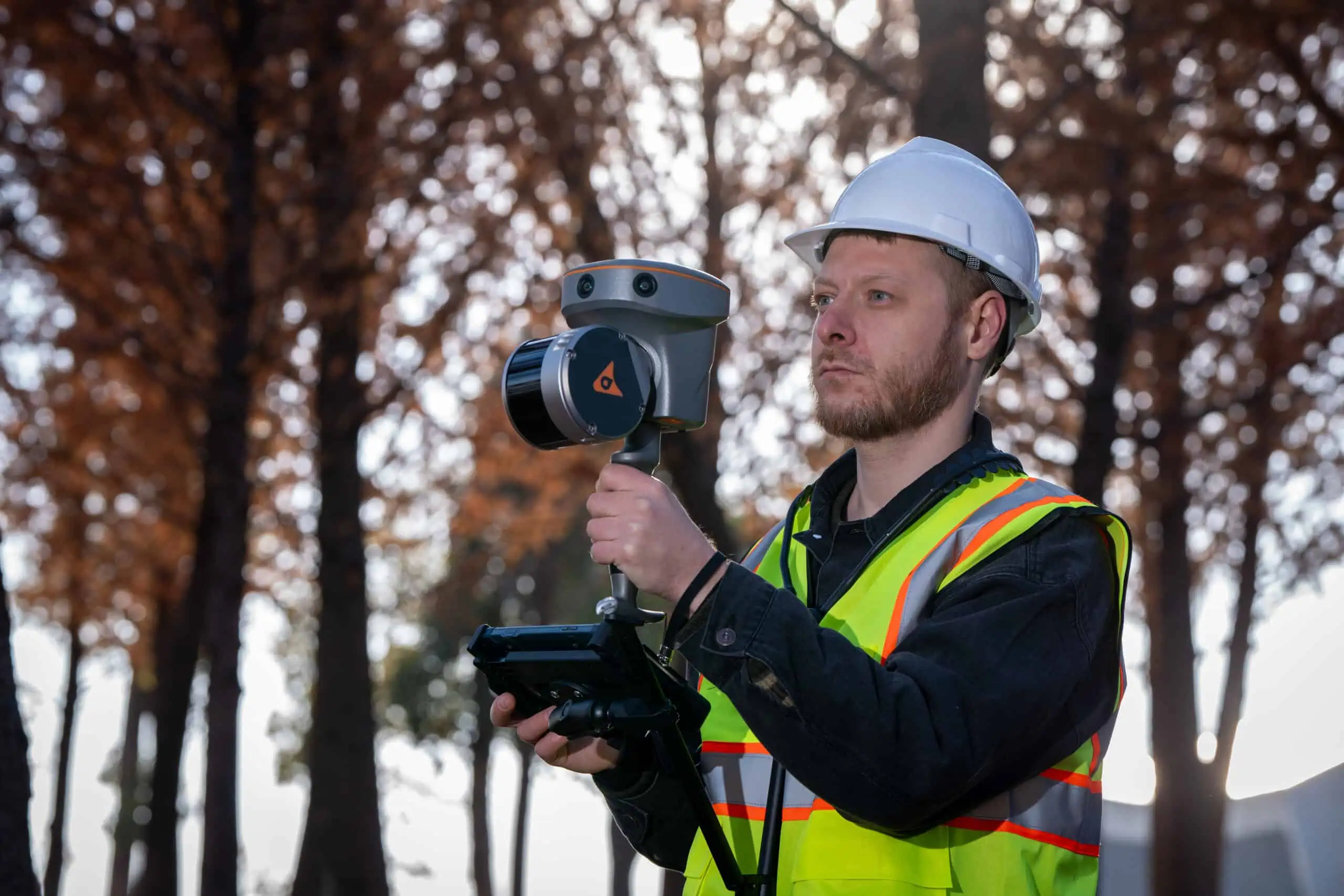

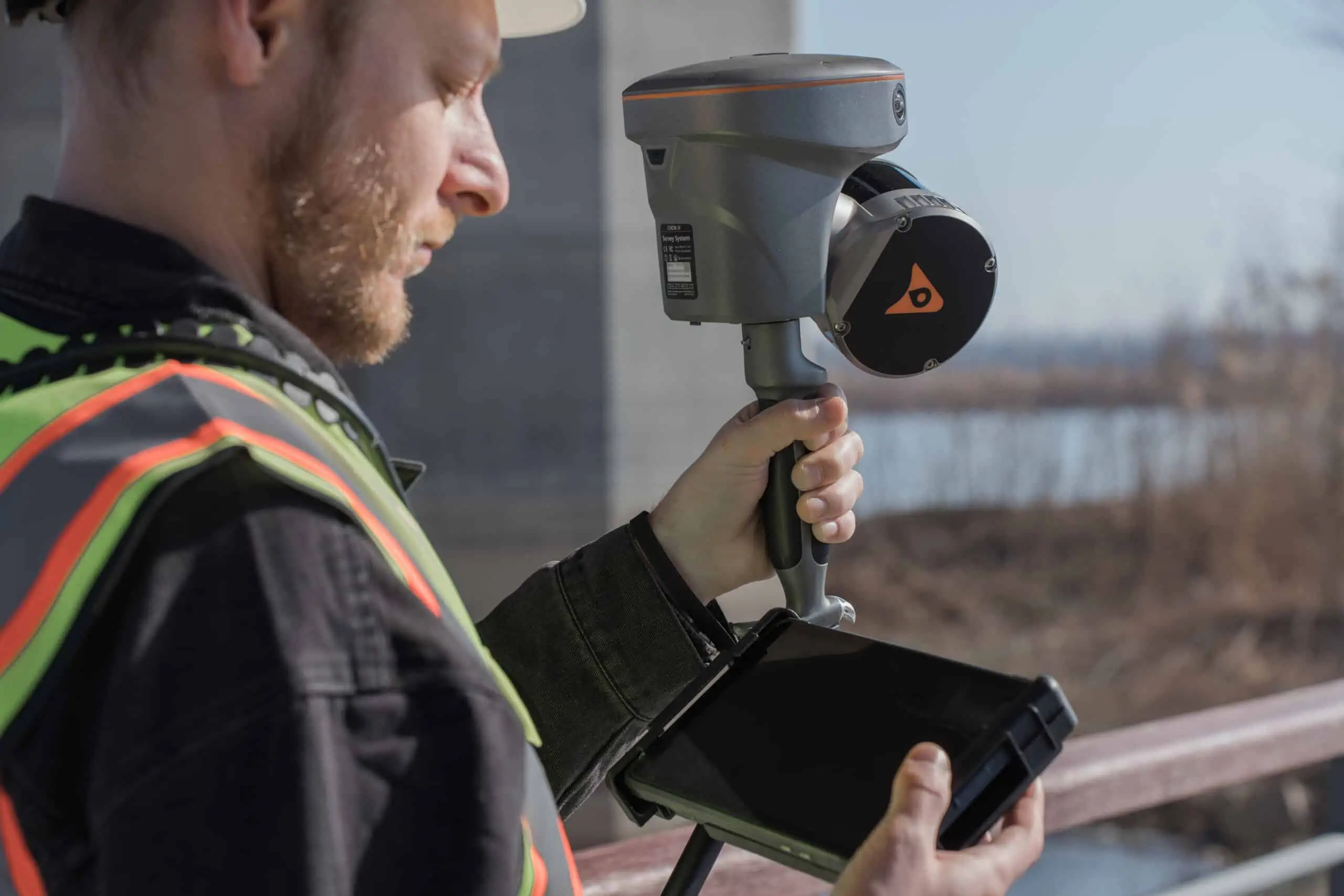

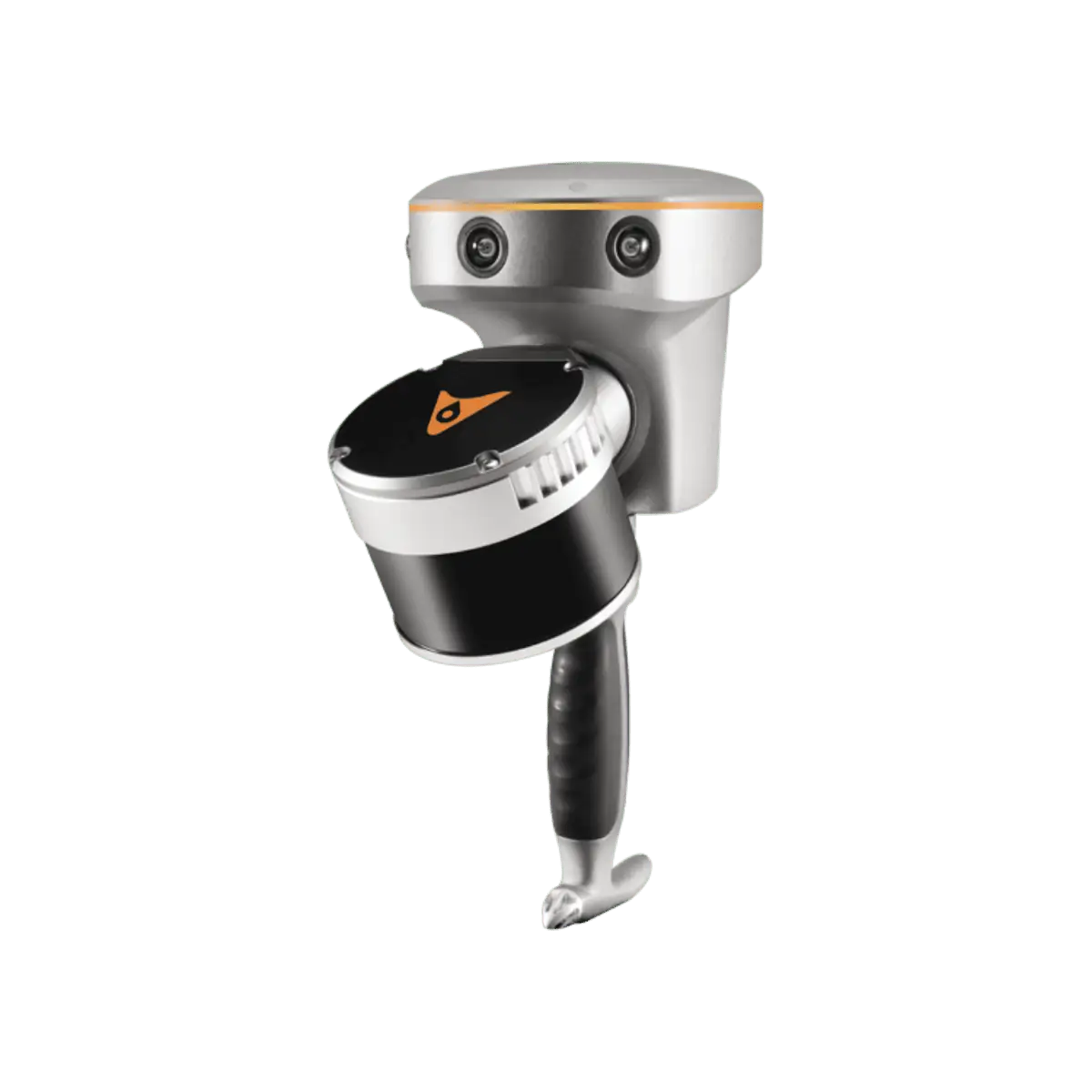

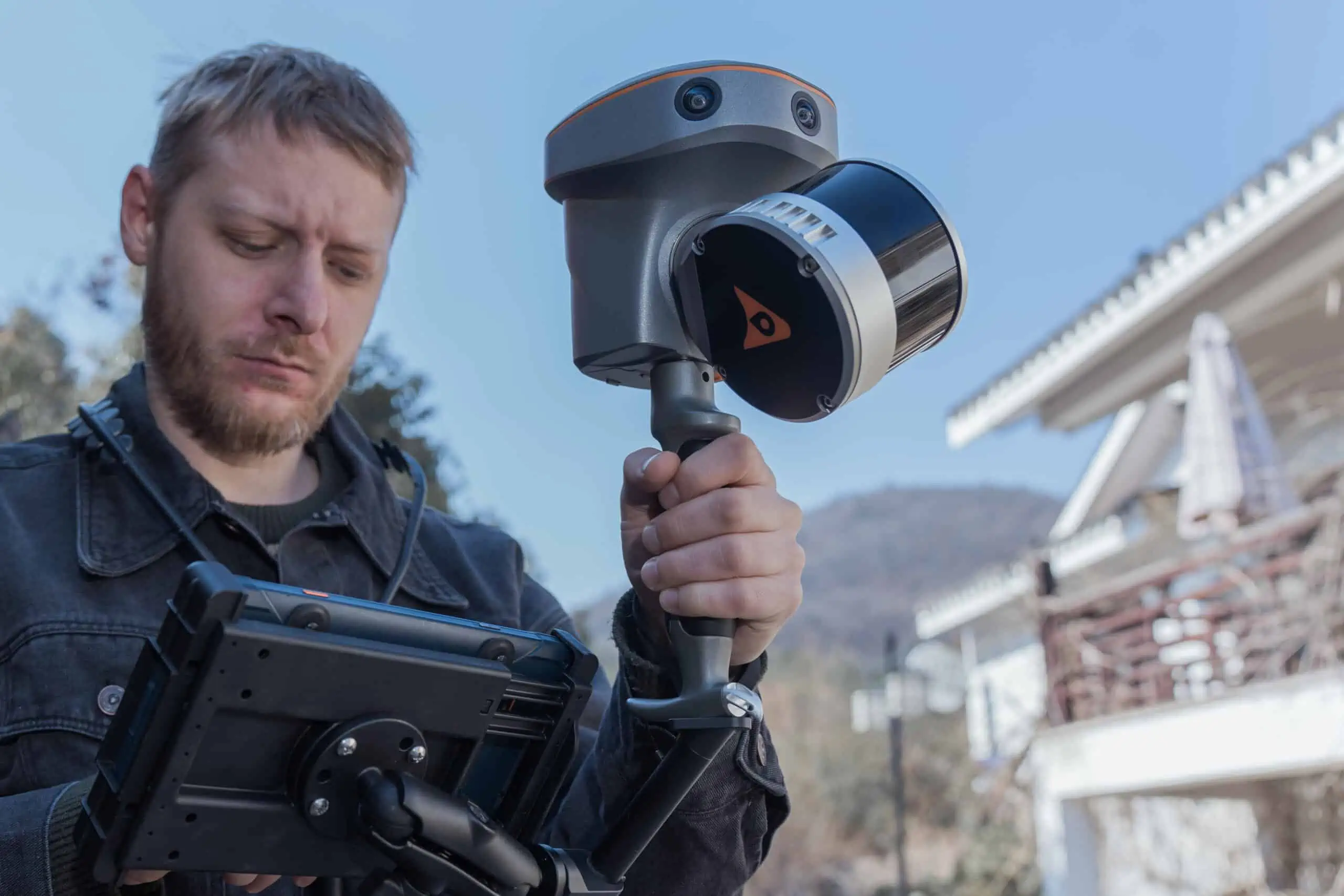

The RS10 is a revolutionary solution for geospatial surveying, which integrates GNSS RTK, laser scanning, and visual SLAM technologies into a unified system. This system is crafted to enhance the precision and efficiency of 3D scanning and surveying tasks, both indoors and outdoors. The RS10 is a versatile solution for professionals in surveying, civil engineering, and Building Information Modeling (BIM), and is equally useful in applications such as agriculture and forestry surveying, inspection of power lines, computing the volume of material piles, and gathering data in subterranean environments.

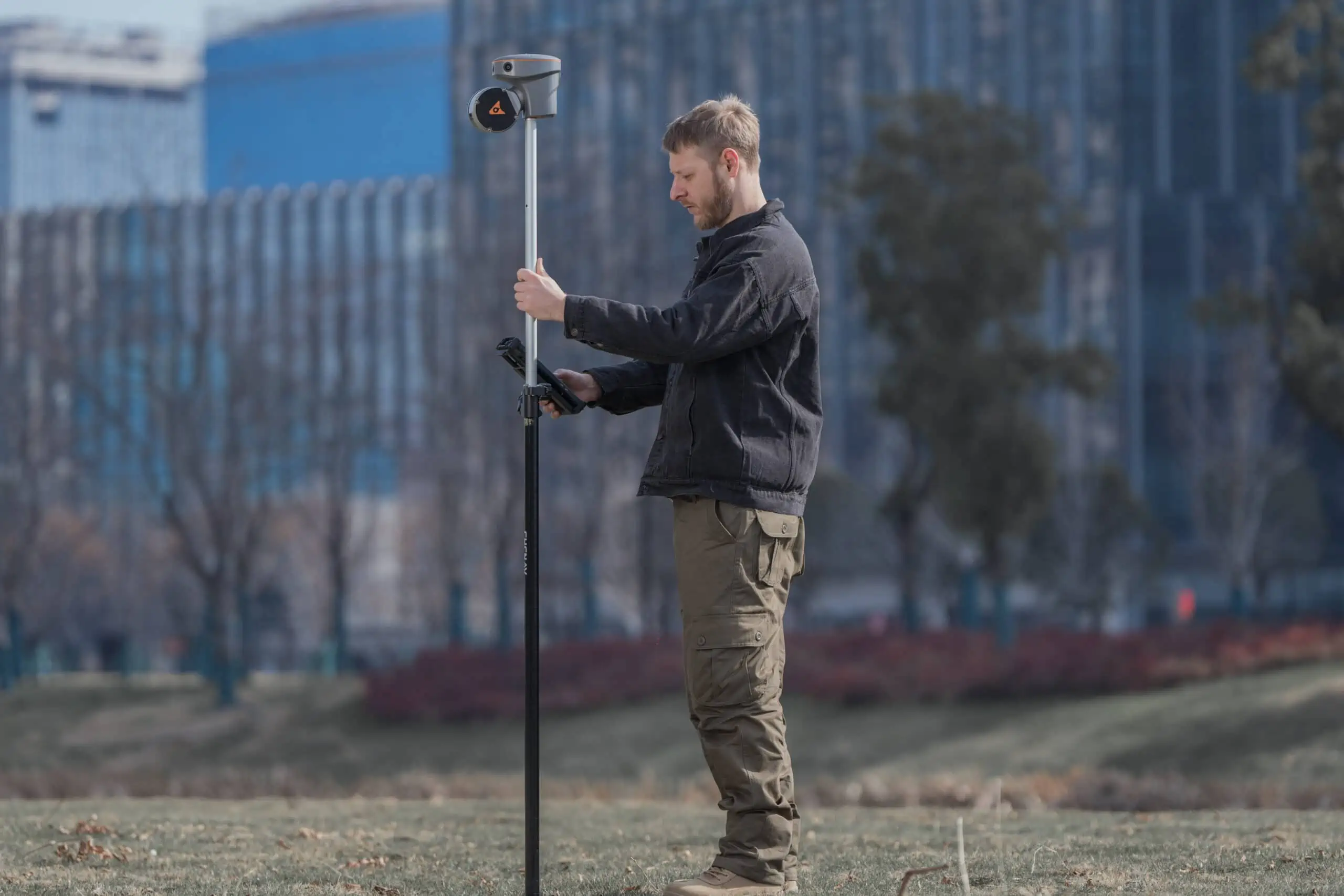

With the introduction of the RS10, surveyors now have the means to overcome surveying challenges presented by areas with weak or no GNSS signals, offering an unprecedented level of versatility and precision in their projects. The device supports both conventional GNSS RTK surveying with advanced 3D reality capture, streamlining operations and enhancing data reliability.
| General System Performance Absolute accuracy | H: < 5 cm RMS(1) V: < 5 cm RMS(1) |
| Relative accuracy | <1 cm |
| Power supply mode | Lithium battery, supports hot-swapping and portable charger |
| Working time from a single battery | 1 h |
| Data storage | 512 GB |
| Field of view | 360° × 270° |
| Weight | 1.9 kg (including RTK and battery) |
| Loop-free data acquisition | Yes |
| Real-time accuracy assessment | Yes |
| Laser Scanner Laser product classification | Class 1 Eye Safe |
| Range | 0.05 to 120 m |
| Channel | 16 |
| Point cloud thickness | 2 cm |
| Range capability | 80 m @10% reflectivity (Channels 5 to 12) 50 m @10% (Channels 1 to 4, 13 to 16) |
| FOV (Horizontal) | 360° |
| Horizontal angle resolution | 0.18° (10 Hz) |
| FOV (Vertical) | 30° (-15° to +15°) |
| Max. effective measurement rate | 320,000 points/sec |
| Selectable scan speed | 10 Hz |
| Max. Number of return pulses | 2 |
| Wavelength | 905 nm |
| GNSS Performance Channels | 1408 channels with iStar2.0 |
| GPS | L1C/A, L2C, L2P(Y), L5 |
| GLONASS | L1, L2, L3* |
| Galileo | E1, E5a, E5b, E6* |
| BeiDou | B1I, B2I, B3I, B1C, B2a, B2b |
| QZSS | L1C/A, L1C, L2C, L5, L6* |
| NavIC/IRNSS | L5* |
| PPP | B2b-PPP |
| SBAS | EGNOS (L1, L5) |
| GNSS Accuracies Real time kinematic (RTK) | H: 8 mm + 1 ppm RMS V: 15 mm + 1 ppm RMS Initialization time: 99.9% |
| Post-processing kinematic (PPK) | H: 3 mm + 1 ppm RMS V: 5 mm + 1 ppm RMS |
| PPP | H: 10 cm | V: 20 cm |
| High-precision static | H: 2.5 mm + 0.1 ppm RMS V: 3.5 mm + 0.4 ppm RMS |
| Static and rapid static | H: 2.5 mm + 0.5 ppm RMS V: 5 mm + 0.5 ppm RMS |
| Code differential | H: 0.4 m RMS | V:0.8 m RMS |
| Visual-assisted positioning | Yes |
| IMU update rate | 200 Hz |
| Auto initialization | Yes |
| Attitude accuracy after post-processing | 0.005° RMS pitch/roll, 0.010° RMS heading |
| Position accuracy after post-processing | 0.010 m RMS horizontal, 0.020 m RMS vertical |
| Number of cameras | 3 |
| Resolution | 15 MP (5 MP*3) |
| Sensor size | 2592 (H) × 1944 (V) |
| Pixel size | 2.0 µm |
| FOV | 210° × 170° |
| Operating temperature | 20°C to +50°C |
| Storage temperature | -20°C to +60°C |
| Ingress protection | IP64(according to IEC 60529) |
| Humidity (operating) | 80%, non-condensing |
| Input voltage | 9 - 20 V DC |
| Power consumption | <30 W |
| Battery capacity | 24.48 Wh |
| SmartGo software | Data acquisition control, real-time point cloud display, etc |
| CoPre intelligent processing software | POS process, Adjust & Refine, Generate point cloud, modeling, etc |
| CoProcess efficient feature extraction software | Building feature extraction, road feature extraction, volume calculation, etc |
| LandStar Field Survey APP | Topographic survey, Point stakeout, Line stakeout, Elevation check, Facade survey |
