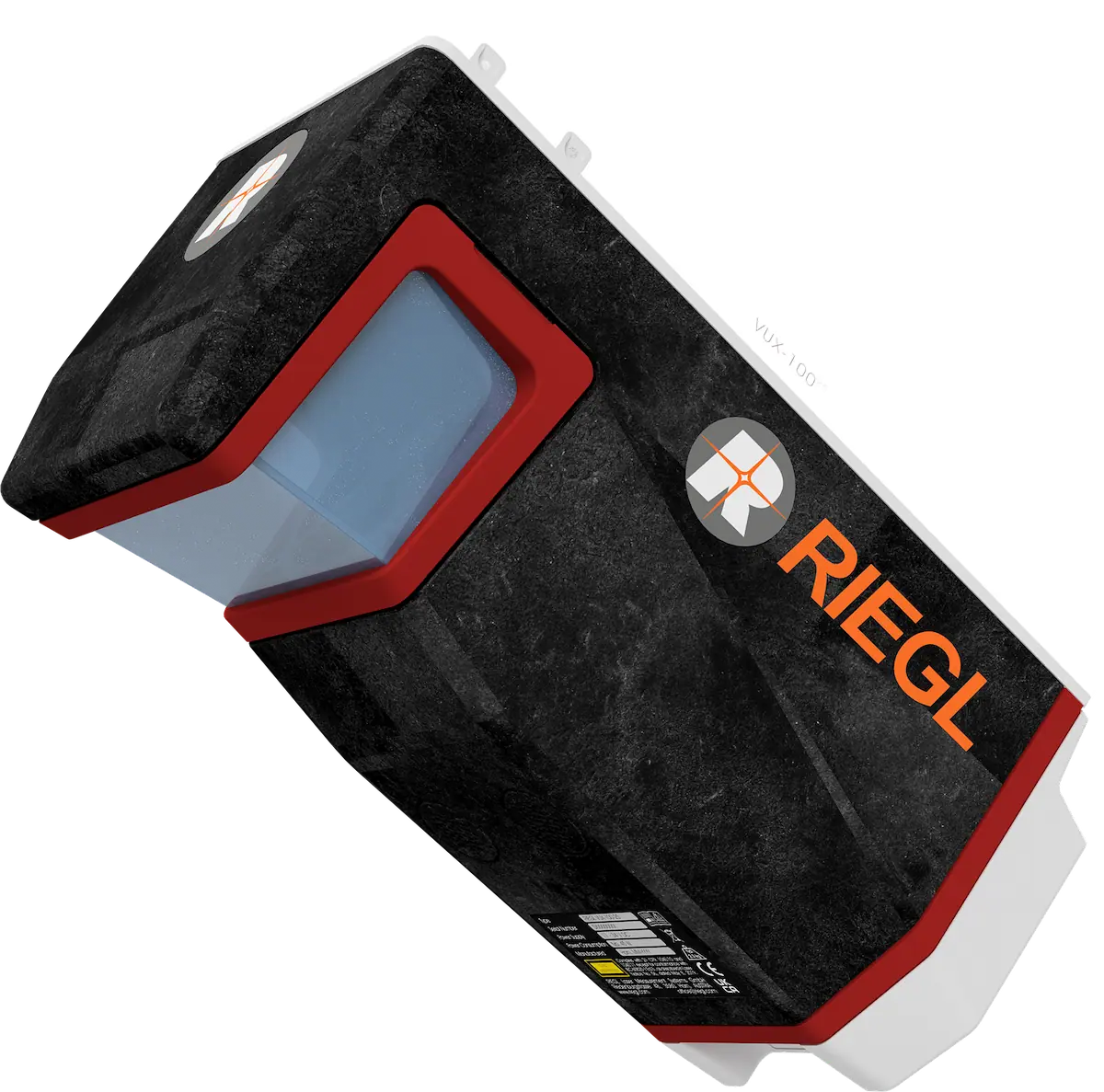

The VUX-10025 is a compact and versatile LiDAR scanner that provides an extended field of view of 160 degrees for extra-wide area coverage. Weighing just 2.2 kg, it can be integrated into a wide range of drone platforms, and is ideal for applications such as mapping of complex terrain and corridors, archaeology, agriculture and forestry.
The VUX-10025 features a high laser pulse repetition rate of up to 1,500 kHz and a scan speed of up to 200 lines per second, making it capable of delivering up to 1.3 million measurements per second. It can be deployed at altitudes of up to 360 meters (1,200 feet).
The scanner is available as standalone UAV LiDAR sensor and also in various fully-integrated UAV-based laser scanning system configurations with optional cameras and an appropriate IMU/GNSS system, like RIEGL’s RiLOC-F high-precision subsystem for localization and orientation. RiLOC-F can be either directly attached to the rear panel of the VUX-10025 or – as RiLOC-F-inside – be fully integrated in the sensor.
Specifications:
| Dimensions: |
242 x 117 x 124 mm (with interface box) 225 x 117 x 124 mm (without interface box) |
| Weight: | 2.2 kg (with interface box) |
| Power: | 11-34 VDC, 45W typical |
| Laser Pulse Repetition Rate: | Up to 1500 kHz |
| Field of View: | Up to 160o |
| Scan Speed: | 50 – 200 lines/sec |
| Accuracy: | 10 mm |
| Precision: | 5 mm |
