Aerobits is a specialised developer of miniature avionic systems, such as transponders, for unmanned aerial vehicles (UAVs) and drones. Based on patented technology, our hardware and software solutions process radio signals on very small surfaces. This concept is at the core of our OEM modules (low-level assembly function modules), which are the basic building block of miniaturized avionics.

We support global initiatives to integrate UAS into civilian airspace and develop the path towards full autonomy, and specialize in air traffic control systems, which are an important component of future UTM (unmanned traffic management) and U-Space solutions.

Our miniaturised avionics enable DAA (detect and avoid) capabilities for even the smallest drones, enhancing safety for all airspace users and providing easier UAS identification and tracking.

OEM - low level modulesOEM – low level modules
Sub-miniature ADS-B/FLARM modules for direct integration on PCB.

Plug&Play – for UASPlug&Play – for UAS
UAS-ready equipment to meet the DAA (Detect and Avoid) philosophy.

ground infrastructureGround Infrastructure
Diverse networkable solutions for future UTM/U-Space design.

OEM ADS-B Devices for Integrators

Micro-ADS-B Receiver with ADS-B OUT

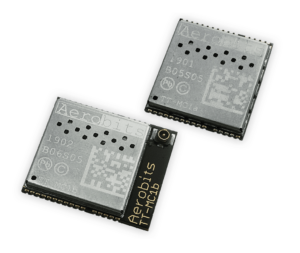

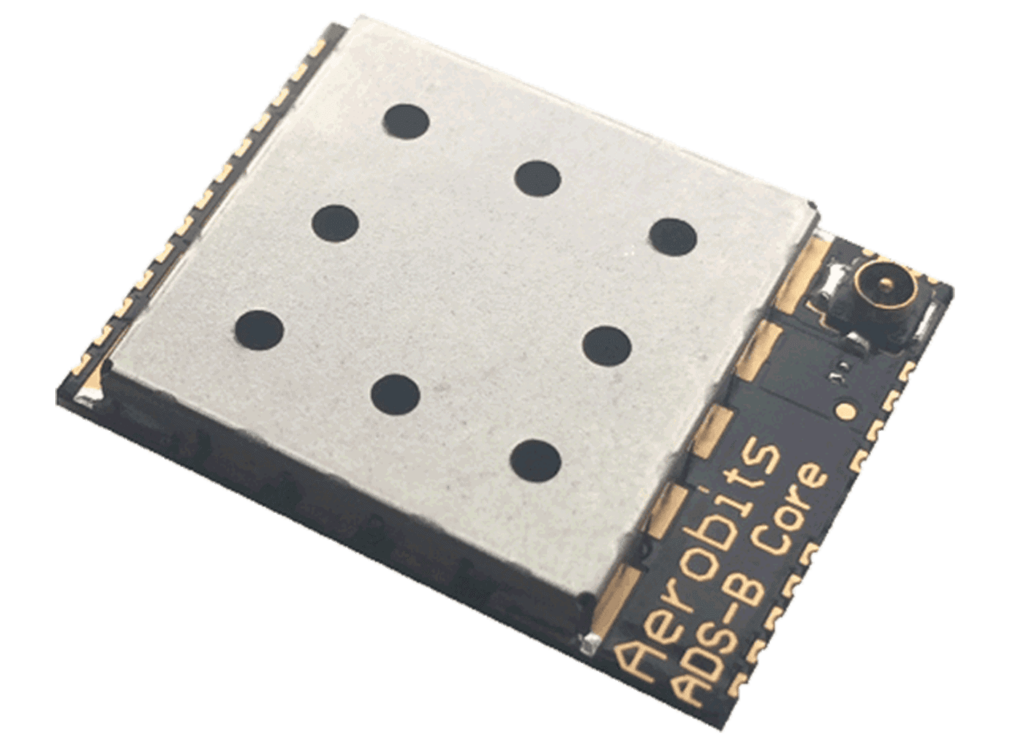

TT-MC1 – High-Performance ADS-B Solution for Ground Stations

Micro-ADS-B Receiver - TIM-MC1The TT-MC1 is a high-performance OEM ADS-B receiver designed for use in UAV ground stations. With improved frame processing rate and the addition of Mode-A/C/S, precision timestamping, extra I/O interfaces and the ability to generate digital ADS-B OUT signals, the TT-MC1 is the most technologically advanced micro-ADS-B solution on the market.

FPGA-In-The-Loop technology, combined with a high-resolution ADC providing adaptive real-time signal processing, results in a powerful aircraft tracking solution capable of receiving thousands of frames per second. RF power measurement for each frame allows distance estimation for Mode-A/C/S operation, and precision timestamping provides multilateration capability.

Weighing just 2 grams and with a surface area of 4 cm2, the TT-MC1 is an ideal solution for a range of unmanned aircraft applications, including SAA/DAA (Sense and Avoid / Detect and Avoid), surveillance, traffic analysis, and unmanned traffic management (UTM) systems.

Miniature ADS-B Receiver

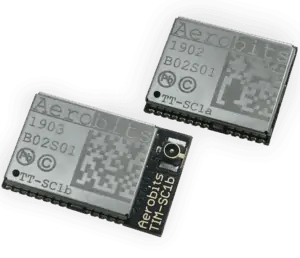

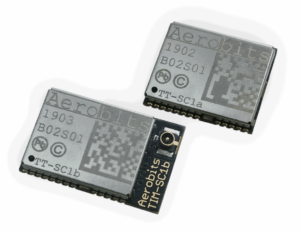

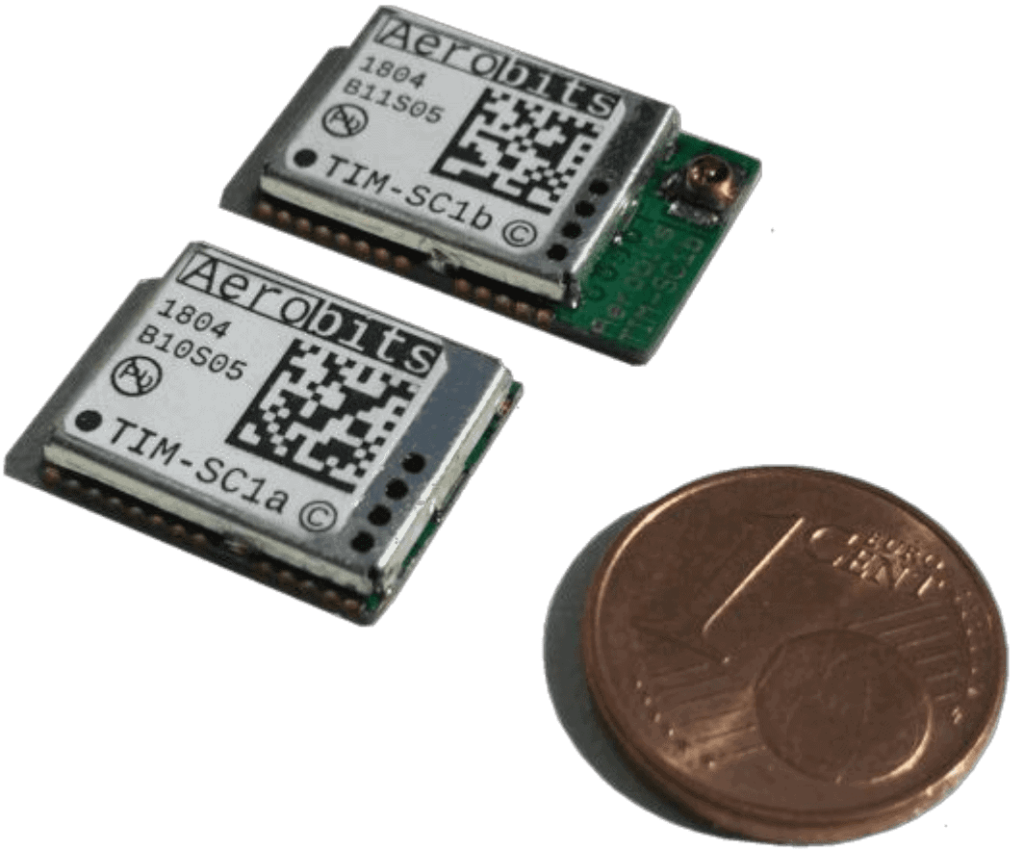

TT-SC1 – Low-Cost UAV ADS-B Receiver

UAV ADS-B Receiver - TIM-SC1The TT-SC1 is a low-cost OEM receiver designed for UAV detect-and-avoid (DAA) applications. With ADS-B capabilities, it has the ability to track up to 100 aircraft.

A high sensitivity front-end provides jamming and ESD protection with ranges of over 120 miles.

The TT-SC1 weighs 1.5g and has a surface area of 2 cm2, making it ideal for SWaP-conscious unmanned aircraft.

OEM UAV ADS-B Receiver

TT-SC1-EXT – ADS-B and Mode A/C/S Receiver

OEM-TT-SC1 UAV ADS-B ReceiverThe TT-SC1-EXT is a high-performance OEM receiver for UAV collision avoidance applications and UTM/U-space systems. It can receive ADS-B and Mode A/C/S and features built-in RF signal strength/quality analysis.

The scalable OEM solution is easy to integrate and can be configured via UART interface and AT commands.

With a weight of just 1.5g, current consumption of 70mA and a surface area of 2 cm2, it is ideal for SWaP-conscious unmanned aircraft.

Miniature ADS­B/GNSS/FLARM Transceiver

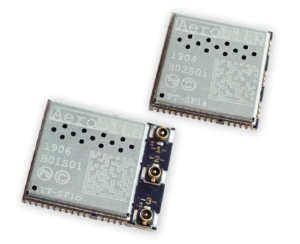

TT-SF1 – Drone Detect-and-Avoid Transceiver

TT-SF1 - Drone Detect-and-Avoid TransceiverThe TT-SF1 is a high-performance OEM transceiver combining ADS-B, GNSS and FLARM capabilities. Based on proven FPGA-In-The­Loop technology, it allows high-speed RF data processing with a significantly reduced number of electronic components.

The module supports a variety of protocols including AERO and MAVLink, and can be easily configured via UART and AT commands.

With best-in-class aircraft tracking, it is ideal for drone detect-and avoid applications and UAS ground stations.

OEM ADS-B/GNSS Receiver

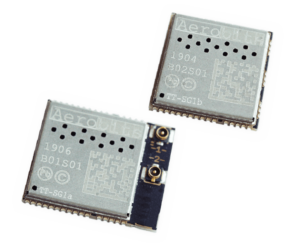

TT-SG1 – UAV Sense-and-Avoid Receiver

TT-SG1 – UAV Sense-and-Avoid ReceiverThe TT-SG1 is a high-performance OEM receiver providing both ADS-B and GNSS capabilities. Based on proven FPGA-In-The­Loop technology, the miniaturized module allows high-speed RF data processing with a significantly reduced number of electronic components.

The module is easily integrated into almost any system, and can be easily configured via UART and AT commands. The flexible device can be customized with non­standard functions.

With best-in-class aircraft tracking, it is ideal for detect-and avoid systems, UAS ground stations and UTM/U-Space applications.

Compare OEM ADS-B Device Specifications:

TT-MC1 TT-SC1 TT-SC1-EXT TT-SG1 TT-SF1
Dimensions (mm): 18 × 19 × 2.65 20 × 13 × 2.65 16 × 13 × 2.65 19 × 22.5 18 × 19 × 2.65
Weight (g): 2.0 1.5 1.5 2.0 2.0
Carrier Frequency (MHz): 1090 1090 1090 1090 ADS-B 1090
FLARM 868
RX Sensitivity: -90 dBm -85 dBm -80 dBm approx.-90 dBm ADS-B -80
FLARM -95
GNSS -167 dBm
MODE A/C/S: [tick] [cross] [tick] [tick] [tick]
Built-In GNSS: [cross] [cross] [cross] [tick] [tick]
Current Consumption: 220 mA 40 mA 70 mA 130 mA 130 mA

ADS-B Evaluation Kits

Evaluation Kits for High-Performance ADS-B Modules

ADS-B Evaluation

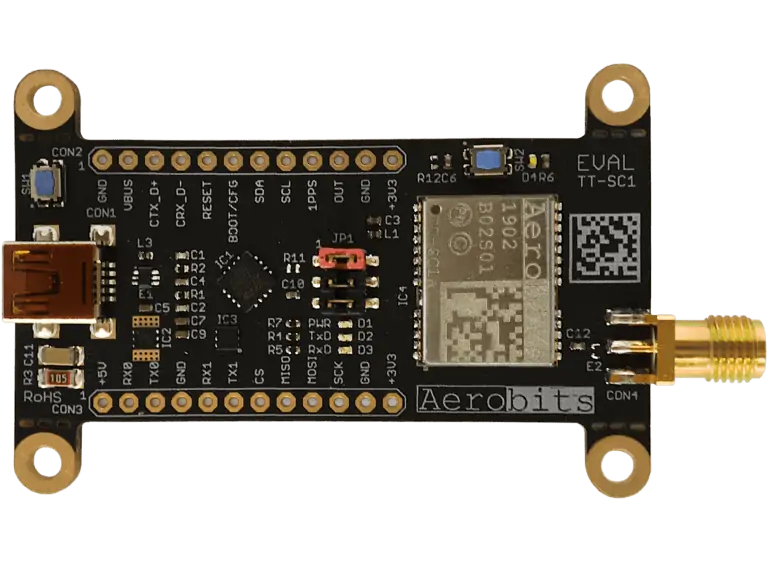

EVAL-TT-SC1 – Evaluation Kit for TT-SC1 Module

Our evaluation kits allow OEM developers to quickly get up to speed with our high-performance ADS-B modules, and include a 1090MHz band receiver with an integrated ADS-B decoder, conforming to MOPS specified in TSO-C199.

Powered by USB or external 5V supply and connected via a Virtual COM port, the boards provide an easy interface to the OEM modules, with convenient extension headers and dedicated software. They are ideal for quickly creating prototype ADS-B applications such as UAV ground stations and unmanned traffic management systems.

ADS-B Evaluation
EVAL-TT-SC1-EXT evaluation kit for the TT-SC1­-EXT module
EVAL-TT-MC1
EVAL-TT-MC1 – Evaluation Kit for TT-MC1 Module
EVAL-TT-SG1
EVAL-TT-SG1 – Evaluation Kit for TT-SG1 Module
EVAL-TT-SF1
EVAL-TT-SF1 – Evaluation Kit for TT-SF1 Module

Plug & Play ADS-B Drone Technology

Plug&Play ADS-B Receiver

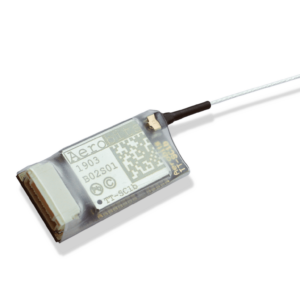

Aero – Ultra-Low Weight ADS-B Receiver

Plug&Play ADS-B Receiver for UASAero is the world’s smallest and lightest Plug&Play ADS-B receiver and has been developed for civil and commercial UAS/UAVs.

The Aero module operates on 1090MHz, tracking nearby manned air traffic (equipped with ADS-B technology) in real-time. Simply plug&play with MAVLink devices for easy integration.

The module weighs just 2.8g (with antenna) and has a low power consumption, making it ideal for SWaP constrained UAVs. The unit costs just €159.

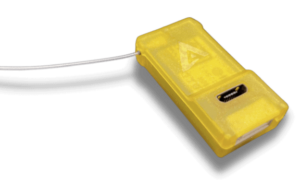

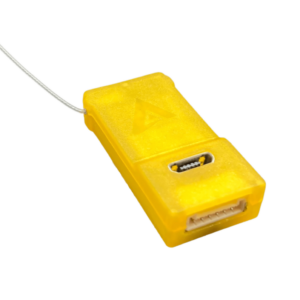

Aero Pro – Compact ADS-B Receiver with Multiple Protocols

Aero Pro Compact ADS-B Receiver with Multiple ProtocolsThe Aero Pro is an ultra-lightweight and compact plug & play ADS-B receiver specifically designed for civil and commercial UAS/UAVs. It provides compatibility with MAVLink devices as well as CSV, GDL90 and ASTERIX protocols.

Operating on 1090MHz, it provides real-time tracking of nearby manned air traffic equipped with ADS-B technology.

The low-power module is ideal for SWaP-constrained UAVs, and features a USB port for easy and convenient firmware updating.

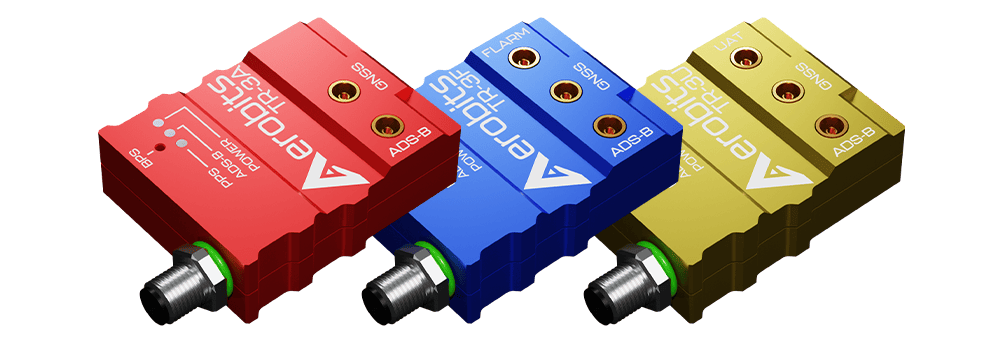

Next-Generation Miniature ADS-B Transceiver with Integrated GNSS

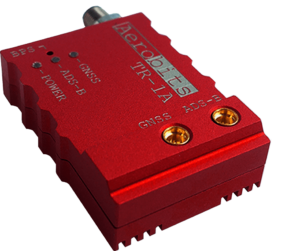

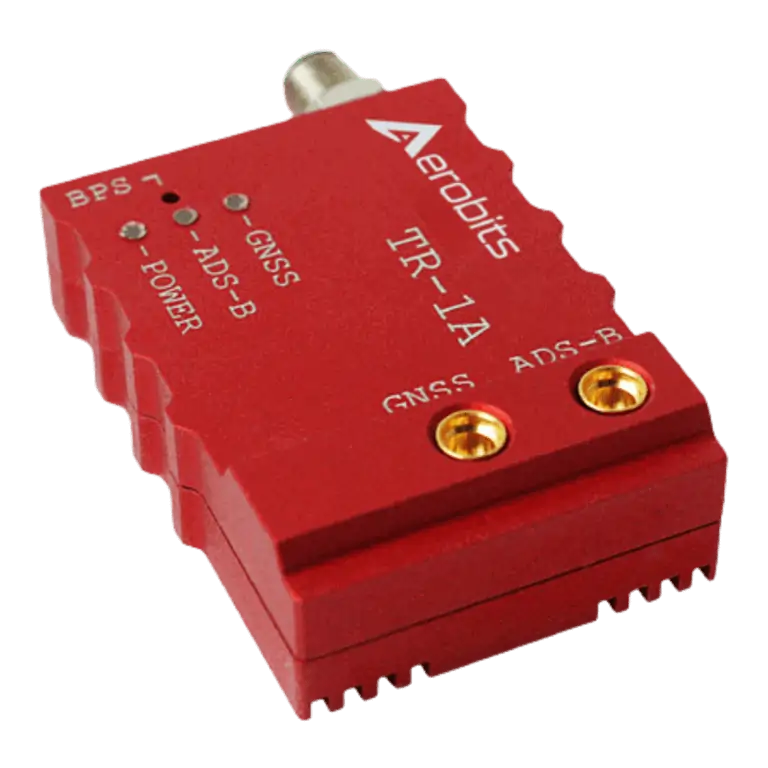

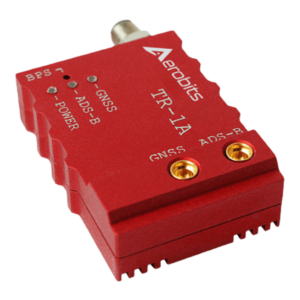

TR-1A – Drone Detect-and-Avoid Transceiver

TR-1A – Drone Detect-and-Avoid TransceiverThe TR-1A is our second-generation miniature ADS-B transceiver for civil and commercial UAS. Weighing just 14 grams and incorporating a high-quality GNSS receiver and barometric altitude sensor, it requires no external hardware and is ideal for implementation of drone detect-and-avoid algorithms.

The module provides real-time position broadcasting and aircraft tracking on the 1090 MHz frequency, with defined output power levels of 0.25, 0.5 or 1W.

The TR-1A is designed around our patented FPGA-In-The-Loop technology and is capable of receiving thousands of frames per second, with built-in support for MAVLink and AERO communications protocols. The module is encased in a rugged aluminium housing with ESD protection, providing reliable operation even in demanding environments.

ADS-B and FLARM Transceiver with Integrated GNSS

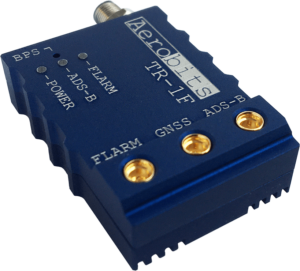

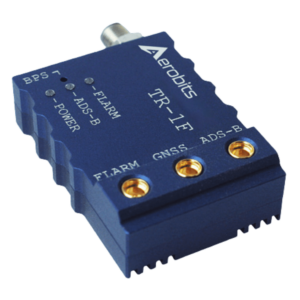

TR-1F – Detect-and-Avoid Transceiver for UAS

The TR-TR-1F – DAA Transceiver for UAS1F is a miniature transceiver supporting both ADS-B and FLARM, providing DAA/SAA capabilities for civil and commercial UAS and paving the way for safe integration of drones into non­segregated airspace.

The module operates on both 1090MHz and 868 MHz frequencies, and allows transmitting and receiving of ADS-B and FLARM data, with defined 0.25, 0.5 or 1W output power for ADS­B and 0.025W for FLARM.

Designed around our patented FPGA-In-The-Loop technology and capable of receiving thousands of frames per second, the TR-1F features an integrated multi-GNSS receiver and pressure sensor, and requires no external hardware. The rugged aluminium housing and ESD protection make the unit ideal for operation in challenging conditions.

Compare Plug&Play Device Specifications:

Aero Aero Pro TR-1A TR-1F
Dimensions (mm): 27 × 14 × 5.5 31.5 x 15.5 x 7.3 35 × 25 × 8.5 35 × 25 × 8.5
Weight (g): 28 4 14 14
ADS-B in: [tick] [tick] [tick] [tick]
ADS-B (in/out): [cross] [cross] [tick] [tick]
FLARM in/out: [cross] [cross] [cross] [tick]
Built-In GNSS: [cross] [cross] [tick] [tick]
Built-In Pressure Sensor: [cross] [cross] [tick] [tick]

UAV/Drone Tracking Transponders

UAS Tracking Transponder with LTE Modem and FLARM

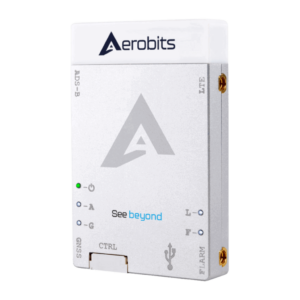

Hook-On-Device – Drone Tracking for UTM

UAS Tracking Transponder with LTE Modem and FLARMThe Hook-On-Device is a compact and lightweight UAS transponder with integrated LTE modem and SIM card that transmits its current GNSS position via FLARM to the leading Unmanned Traffic Management (UTM) system developed by DFS. The highly integrated multi-band transceiver provides a comprehensive, future-proof UTM and U-Space solution for tracking, Remote ID and collision avoidance.

The module can also receive FLARM and ADS-B broadcasts from surrounding air traffic, and can add this data to the location data transmitted to the UTM system. A web-based UTM interface allows drone pilots and air traffic controllers to easily view the positions of both the drone and other aircraft in the vicinity.

Specifications:

Dimensions: 58.0 x 38.0 x 9.5 mm
Weight: 149g (with all antennas and power bank)
Frequencies: ADS­B ­ 1090MHz
FLARM ­ 868 MHz
ADS-B Range: Approx. 25 km
Current Consumption: <400 mA

ASTM-Compliant UAS Remote ID and Tracking

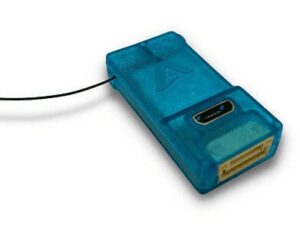

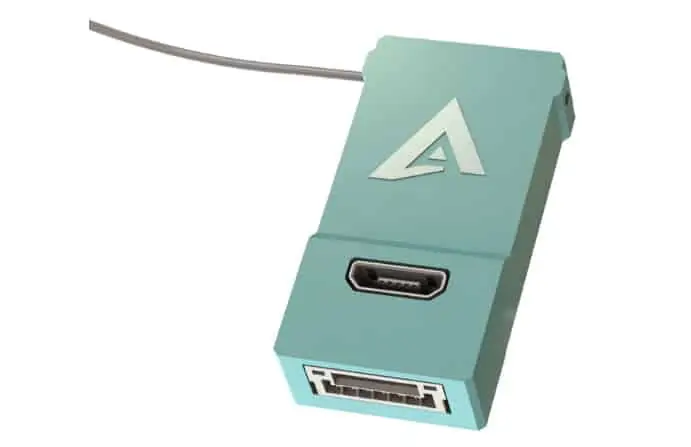

idME – Drone Identification and Tracking Module

idME remote id & trackingThe idME is a low-SWaP module that has been designed to meet the standards for remote drone identification and localization as set out by ASTM International (F3411 − 19). It uses BLE (Bluetooth Low Energy) to provide surveillance information and easy drone and operator identification capabilities.

Data can be displayed on a mobile device such as a smartphone or tablet, and the device itself can be easily interfaced with a Pixhawk drone controller via a JST connector. An external position source can be connected to provide data using the MAVLink protocol.

The module can be programmed to deliver custom broadcast messages that provide information such as drone identification number and type of aircraft.

Specifications:

Dimensions: 27 × 14 × 5.5 mm
Weight: 28 g
Power Supply: 5V
Current Consumption: 20 mA average
Bluetooth TX Power: +8 dBm

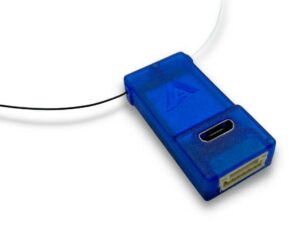

idME+ – Drone Remote ID with Integrated GNSSidME+ Drone Remote ID with Integrated GNSS

The idME is a low-SWaP drone Remote ID module that includes a built-in high-quality multi-GNSS receiver and barometric altitude sensor. It can be easily interfaced with a Pixhawk controller via JST, or operate as a completely independent device that requires only a power connection to run.

Designed to meet the standards for remote drone identification and localization as set out by ASTM International (F3411 − 19), it uses BLE (Bluetooth Low Energy) to provide surveillance information and easy drone and operator identification capabilities.

Data can be displayed on a mobile device such as a smartphone or tablet, and the module can be programmed via AT commands to configure broadcast messages with info such as drone identification number or type of aircraft.

Specifications:

Dimensions: 31.5 x 15.5 x 7.3 mm
Weight: 6 g
Power Supply: 5V
Current Consumption: 60 mA average
Bluetooth TX Power: +8 dBm

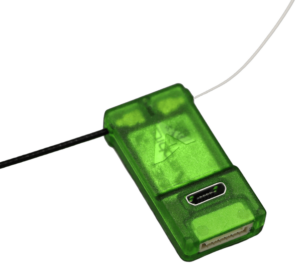

idME PRO – Drone Remote ID with Wi-Fi & BLE

idME PRO – Drone Remote IDThe idME PRO is our most advanced Remote ID module for UAS, designed to meet the newest standards set out by ASTM and ASD-STAN. Utilizing both Wi-Fi and BLE (Bluetooth Low Energy), it delivers surveillance and drone operator identification capabilities and is also equipped with a GNSS antenna.

The module can be easily connected to a Pixhawk controller and supports the latest MAVLink protocol. AT commands allow users to easily configure elements of broadcast messages such as drone identification number and type of aircraft.

Specifications:

Dimensions: 32 x 16.7 x 7.5 mm
Weight: 5 g
Power Supply: 5V
Current Consumption: 20 mA average
Bluetooth TX Power: +18 dBm
Wi-Fi Output Power: +20 dBm

Ground Infrastructure

PoE ADS-B Receiver Station with MLAT

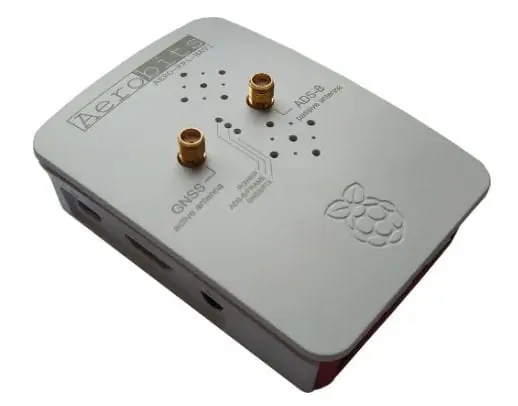

AERO-RPi-HAT – ADS-B Receiver with Integrated GNSS

Aerobits AERO-RPi-HAT ADS-B receiverBased on the well-known Raspberry Pi single-board computer, the AERO-RPi-HAT is designed for UAS ground stations, unmanned traffic management/U-space proof-of-concept projects, and UAS data collection applications.

The unit is based around the TT-MC1a 1090MHz receiver, and features integrated GNSS technology that allows users to mark frames with an accurate timestamp for multilateration purposes.

Output data is available in Aero ASCII protocol, raw format (with or without signal strength), Asterix, or MAVLink. The AERO-RPi-HAT can also be customized upon request to output in a user’s own protocol.

Easy outdoor installation is facilitated by PoE (Power-over-Ethernet) technology, and the AERO-RPi-HAT also includes an integrated temperature and air quality sensor.

Omni-directional ADS-B & FLARM Ground Station

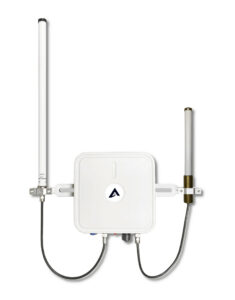

OGS Station – ADS-B and FLARM receiver station with multi­-constellation GNSS

The OGS Station is an omni-directional ground receiver station with ADS-B, FLARM and GNSS capabilities. Featuring LTE connectivity for versatile operation with reduced cabling, it has a range of up to 500 km for ADS-B and 70 km for FLARM.

Enclosed in an IP67-rated weather-resistant housing, it is ideal for persistent airspace monitoring and safety-critical BVLOS drone applications.

Omni-directional Ground Station

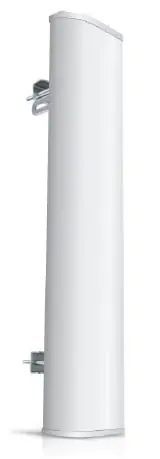

Sector Antenna for FLARM and ADS-B

High-gain antenna for UTM and U-Space implementations

Our high-gain Sector Antenna is ideal for the design of ADS-B and FLARM systems requiring high-sensitivity receivers for drone tracking in UTM and U-Space applications.

Featuring an integrated multi-GNSS receiver for precision time-stamping, the durable and watertight Sector Antenna can be easily networked via Ethernet/PoE or LTE.

Specifications:

Dimensions: 129 x 29 x 13.4cm
Weight: 13 kg
Frequencies: ADS­B ­ 1090 MHz
FLARM ­ 868 MHz
Sensitivity: ADS­B ­ -100 dBm
FLARM ­ -130 dBm
Range: ADS­B ­ 500 km
FLARM ­ 70 km
Sector Antenna for FLARM and ADS-B

All-in-one LTE/GNSS/ADS­B/FLARM ground station

Mobile Ground Station

Mobile Ground StationThe Mobile Ground Station provides LTE, GNSS, ADS­B and FLARM capabilities in a single sturdy package. With a high gain single piece sector antenna for reliable airspace monitoring, it has a range of up to 500 km for ADS-B and 70 km for FLARM.

Designed to be easily installed in less than five minutes, it is ideal for safety-critical operations and conducting multiple BVLOS missions.
