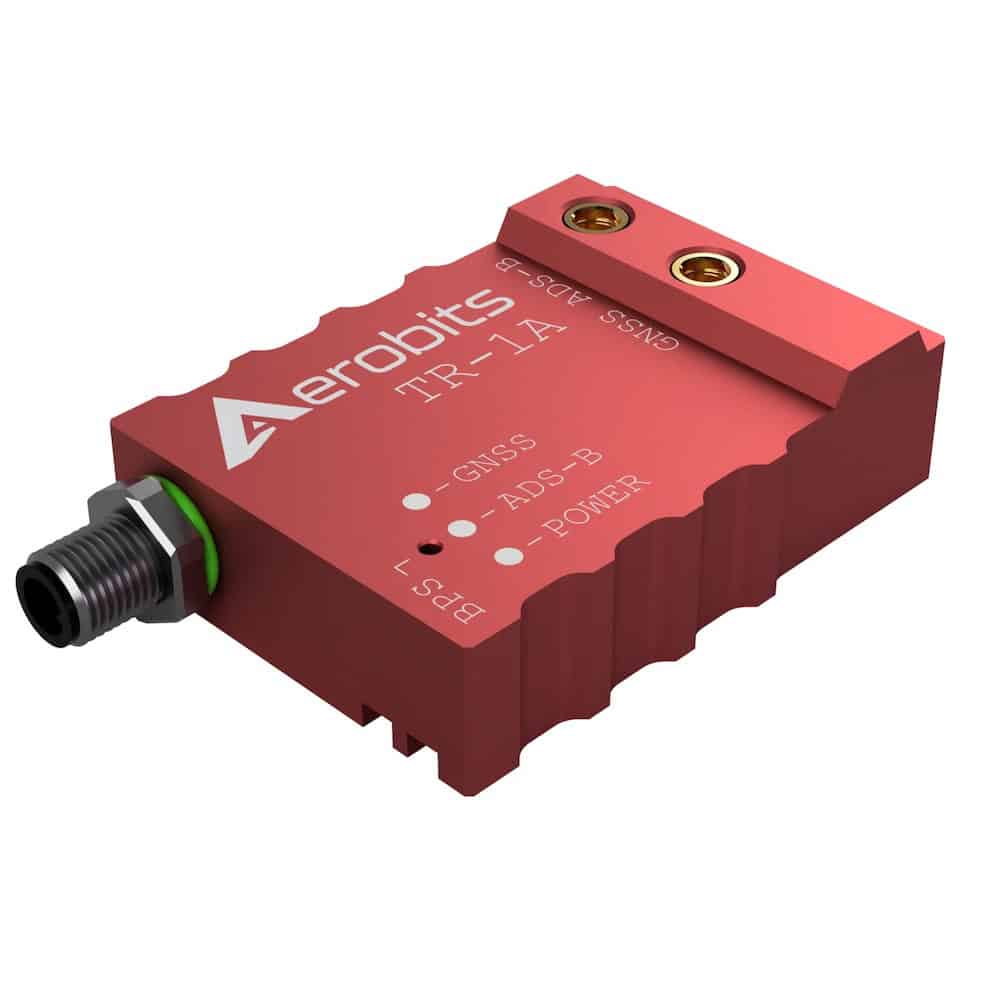

TR-1A ADS-B Transceiver

TR-1A belongs to the second generation of the smallest ADS-B transceivers on market and has been developed for civil and commercial Unmanned Aircraft Systems (weight and size reduced by 33%).

The device operates on 1090MHz and allows receiving and transmit ADS-B data with defined 0.25, 0.5 or 1 Watt output power. The transceiver does not require external devices to operate. It is equipped with a high-quality multi-GNSS receiver and a pressure sensor.

The aluminum housing and ESD protection guarantee the high resistance of the device to work in difficult conditions. TR-1A opens the way to the implementation of the Detect and Avoid algorithms, supporting the integration of UAS into the airspace.

Features:
  • Real-time aircraft tracking on 1090 MHz band
  • Patented FPGA-In-The-Loop technology with the capability of receiving thousands of frames per second
  • Integrated high-quality GNSS position source and barometric altitude sensor
  • 0.25, 0.5 or 1 Watt RF output power
  • Implemented MAVLink and AERO protocol
  • Low-power consumption and low weight design
  • Simple plug&play operation
  • Programming via AT commands
  • Designed to meet MOPS DO-260B (except the output power)
  • Dimension: 35.0 x 25.0 x 8.5 mm
Applications:
  • On-board traffic monitoring
  • Position broadcasting
  • Implementation of Detect and Avoid algorithms
