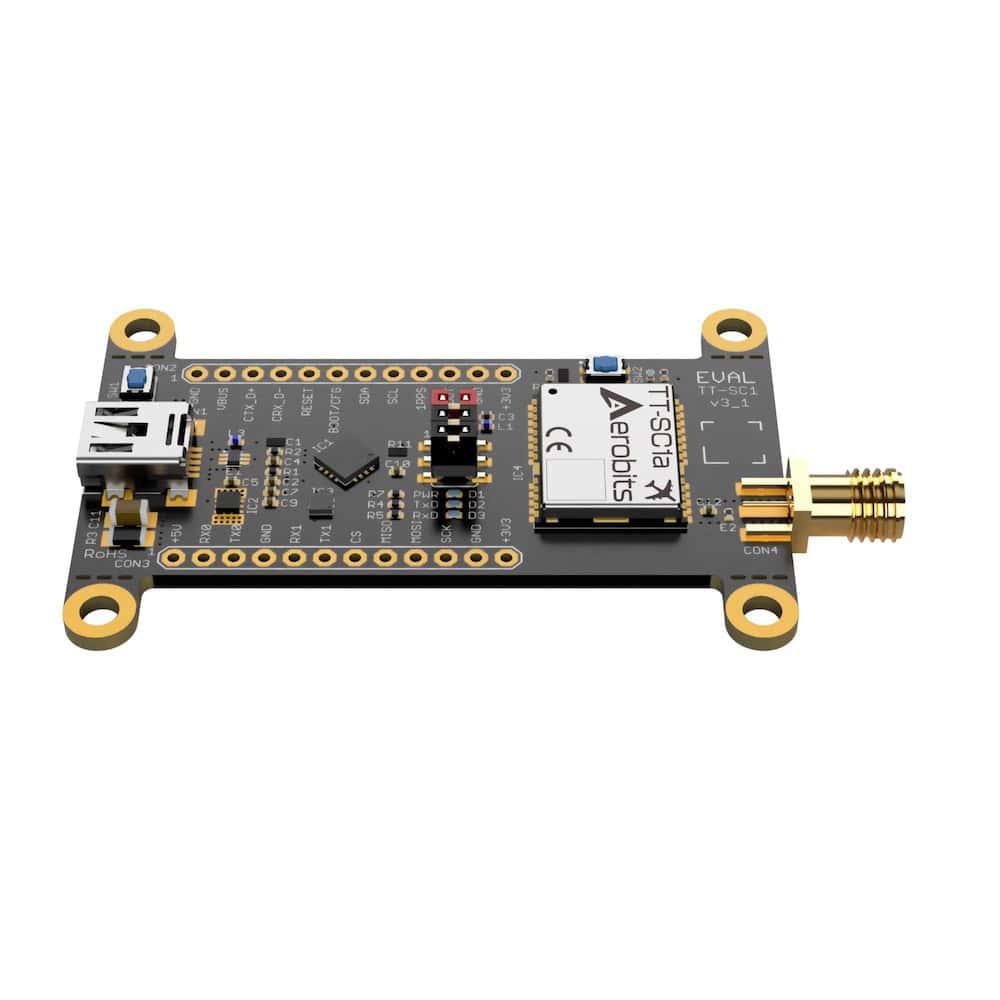

EVAL-TT-SC1 Evaluation Board for the TT-SC1

The evaluation kit provides a quick introduction to the TT-SC1 module. It is a high-quality 1090MHz band receiver with an integrated ADS-B (Automatic Dependent Surveillance-Broadcast) decoder, conforming to MOPS specified in TSO-C199.

EVAL-TT-MC1 with the dedicated software allows the user to discover the module properties within a short time, paving the way towards quick prototyping, through tabular and 3D views.

Features
  • Quick start with the OEM TT-SC1 module
  • Designed to be powered by USB or an external 5V supply
  • Two LED for USB communication and one LED for internal functions
  • Virtual COM port with simple firmware update capability
  • Extension header for external power supply and communication)
  • ESD protection
  • All necessary components in the box (antenna, USB cable, etc.)
  • Dedicated software available
Applications
  • Evaluation board
  • Wideband antenna (0-1dBi) 3 m
  • fl / SMA adapter 10.5 cm
  • USB cable 30 cm
  • 2 x Pinheader for extensions connector
