TT-RW1 OEM Remote ID module with GNSS & Wi-Fi

OEM Remote ID module with GNSS & Wi-Fi

Visit Website Contact

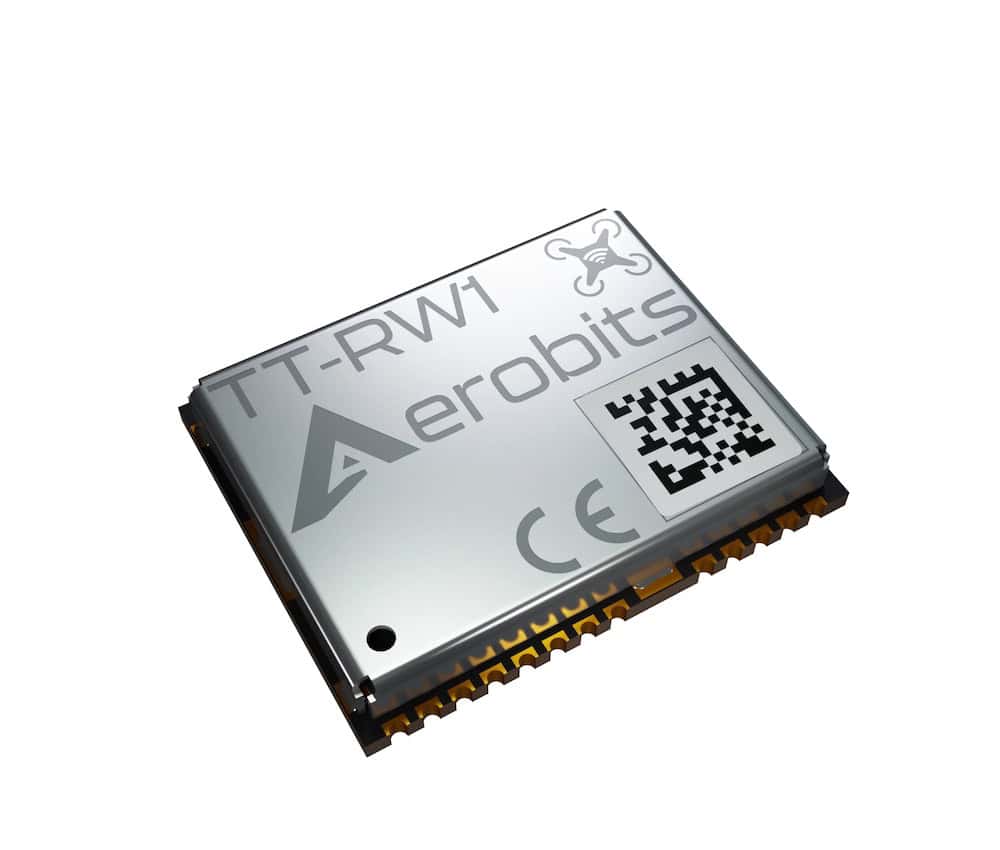

The TT-RW1 is a miniature OEM Remote ID module that has been designed in accordance with ASTM and ASD-STAN standards requirements for remote drone identification and localization. Using BLE (Bluetooth Low Energy) broadcast technology, it provides surveillance and drone operator identification information that can be picked up using smartphones, tablets and other mobile devices. It also features an integrated multi-frequency GNSS receiver and a barometric altitude sensor, as well as Wi-Fi connectivity.

The TT-RW1 is ideal for meeting mandatory Remote ID requirements, and for SAA / DAA (Sense and Avoid / Detect and Avoid) and UTM (unmanned traffic management)/U-space applications.


Dimensions 16 x 13 x 2.4 mm
Current consumption 70 mA
Bluetooth Carrier Frequency 2400-2485 MHz
Bluetooth RX Sensitivity -85 dBm
Bluetooth TX Power 18 dBm
GNSS RX Sensitivity -167 dBm
Wi-Fi TX Power 20 dBm
