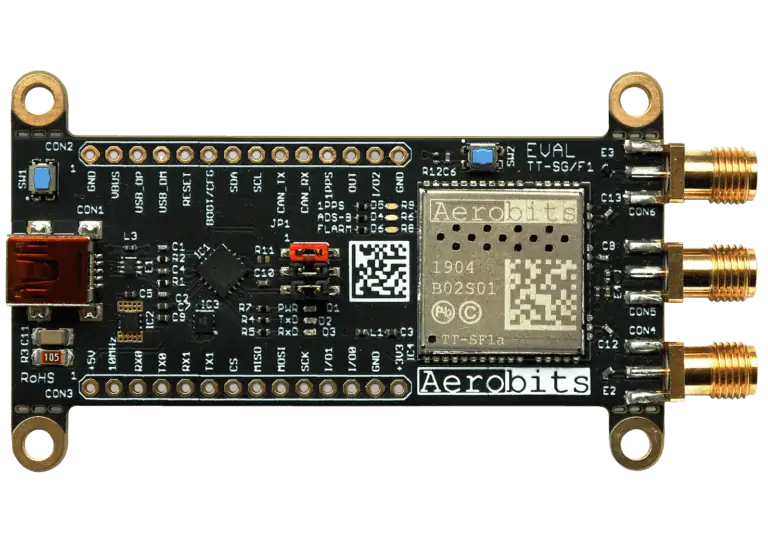

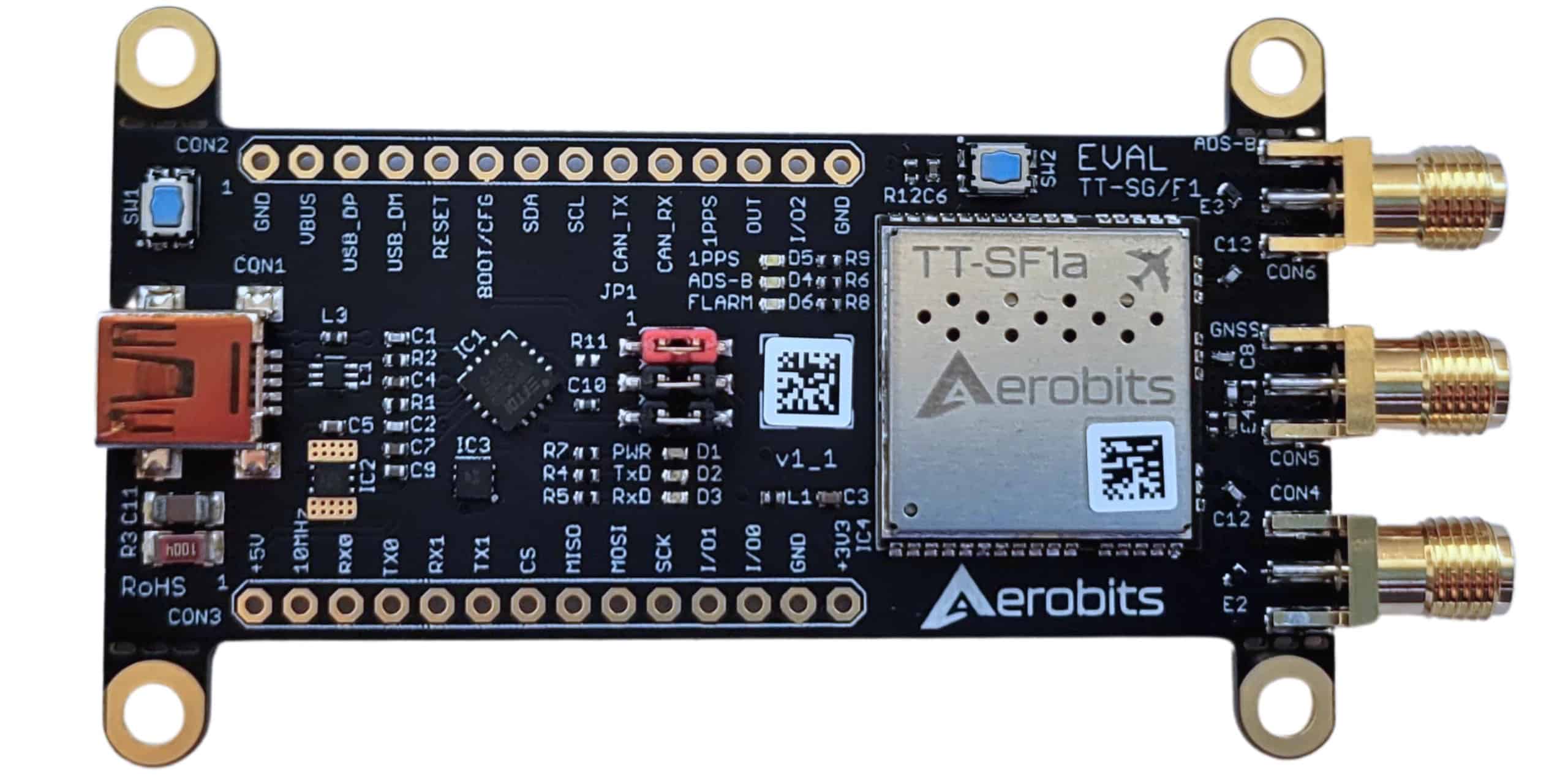

EVAL-TT-SF1 Evaluation Board for the TT-SF1
The evaluation kit provides a quick introduction to the TT-SF1 module. It is a high quality 1090MHz band receiver with an integrated ADS-B (Automatic Dependent Surveillance-Broadcast) decoder, conforming to MOPSs specified in TSO-C199.
EVAL-TT-SF1 with the dedicated software allows the user to discover the module properties within a short time, paving the way towards quick prototyping. The software allows simple configuration of the module and data visualization in various modes, from raw data, through tabular and 3D views.
Notice: price includes a life-long FLARM license.
Features- Quick start with the OEM TT-SF1 module
- Designed to be powered by USB or an external 5V supply
- Two LED for USB communication and one LED for internal functions
- Virtual COM port with simple firmware update capability
- Extension header for external power supply and communication
- ESD protection
- All necessary components in the box (antenna, USB cable, etc.)
- Dedicated software available
- Evaluation board
- Wideband antenna (0-1dBi) 3 m
- U.fl / SMA adapter 10.5 cm
- USB cable 30 cm
- 2 x Pinheader for extensions connector
