High quality, low price OEM ADS-­B/GNSS receiver series operating at a frequency 1090MHz

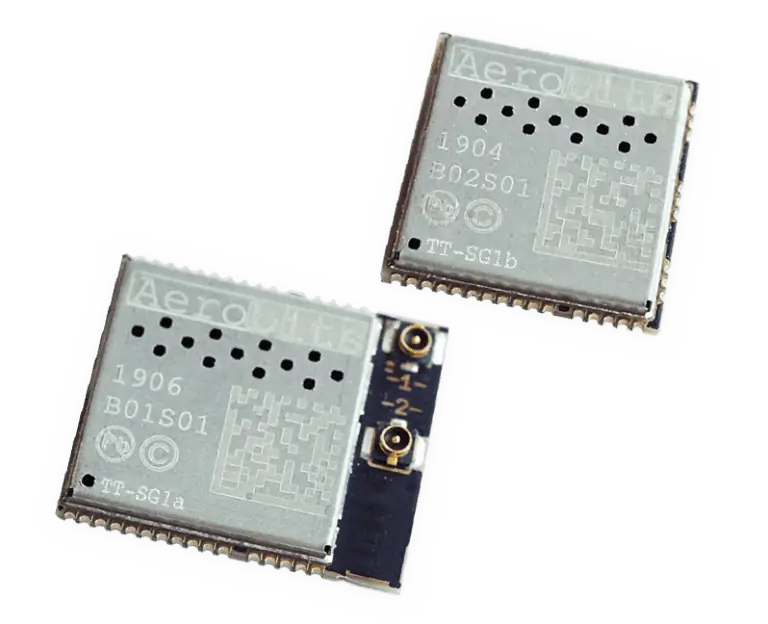

TT-SG1 ADS­-B/GNSS Receiver

• High quality and low price OEM ADS-­B/GNSS receiver series operating at a frequency 1090MHz. It is based on the proven FPGA­In­The­Loop technology, which is a unique combination of a single-core processor and FPGA.
• The patented solution allows high-speed RF data processing with a significantly reduced number of electronic components. Simultaneous miniaturization of the module and its OEM nature opens a wide range of possible applications.
• Fast UART interface and easy configuration with AT­commands allows for the simple integration of the module with the user’s system. In addition, extra interfaces open the way to customize the firmware and extend the module with non­standard functions. There are several communication interfaces, protocols and special functionalities available on request.

Features:

• Fastest ADS-B implementation on a surface of <4cm2
• Receiving of ADS-B, Mode-A/C/S with RF signal
• Strength/quality analysis
• Timestamp for multilateration
• Best-in-class aircraft tracking
• Multiple supported protocols: AERO, MAVLink
• Scalable OEM solution with the enormous customization potential
• Firmware update capability
• Weight < 2g
• Designed to meet MOPS defined in TSO-C199
• Evaluation kit available

Applications:

• SAA / DAA (Sense and Avoid / Detect and Avoid)
• UAS ground stations and high-density traffic surveillance
• UTM / U-Space construction (traffic surveillance network)
• Traffic-flow analysis and statistics
• Monitoring of 1090MHz band (signal integrity check)
• ADS-B/In/Out devices that meet the NextGen/SESAR philosophy
