Miniature ADS-B Technology (Transceivers/Receivers) and Drone Tracking Transponders for sUAS & UTM/U-Space
trkME trkME: Reliable and versatile Multi-system Tracking​
trkME

trkME: Reliable and versatile Multi-system Tracking​

The trkME is a versatile transceiver designed for multi-system tracking. It features an integrated GNSS receiver, Bluetooth, and Wi-Fi, ensuring reliable connectivity and precise location tracking. Its compact size and lightweight design make it ideal for various applications where high sensitivity and low power consumption are essential. Visit Website Contact
Saved
Save
trkME

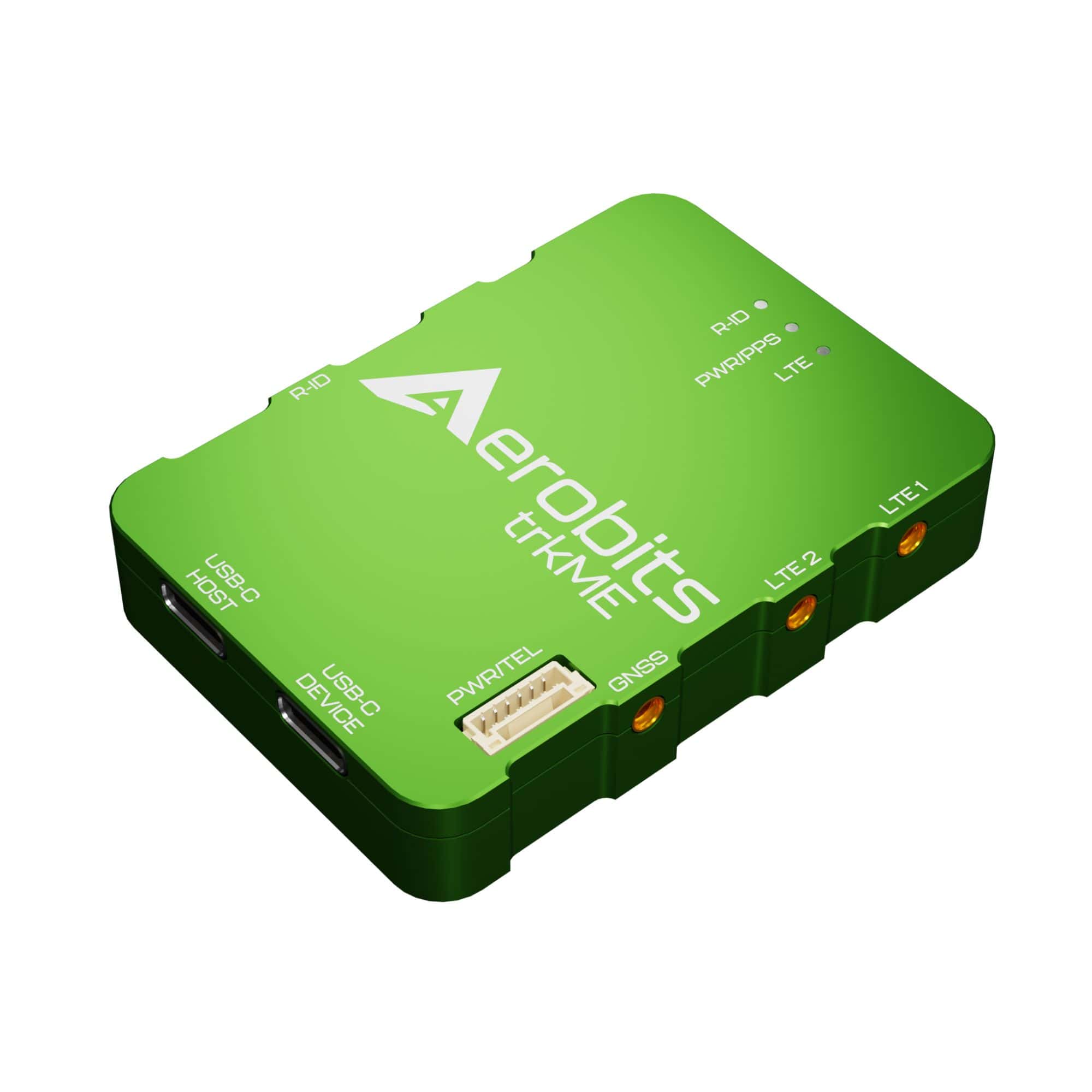

trkME is a compact and lightweight drone tracking module designed to support the safe and effective integration of UAS into shared airspace. Featuring multi-system tracking with a suite of capabilities including FLARM, Remote ID via Bluetooth, and a built-in GNSS receiver, the versatile plug-and-play module meets the requirements of modern UTM and U-space ecosystems and is ideal for applications requiring high sensitivity and low power consumption.

The module includes an integrated pressure sensor, as well as UART and USB interfaces for versatile integration capabilities.

Specifications:

Dimensions: 65 x 46 x 12 mm
Weight: 50g
Power: 5V, 320 mA
Receiver Sensitivity (dBm): -167 (GNSS)
-97 (BT)
-98 (Wi-Fi)
Transmitter Power (dBm): +20 (BT)
+20 (Wi-Fi)
