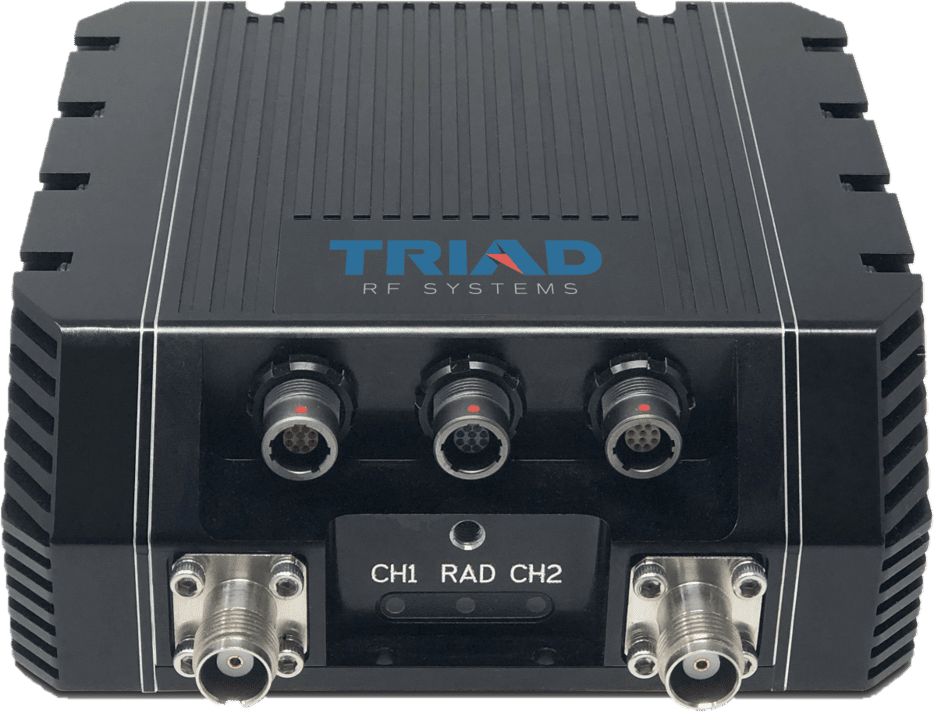

THPR1021 High Power Radio
Longer Range | Higher Data Rates | Lowest SWaP
The THPR1021 High Power Radio contains a Silvus Streamcaster SC4210P-467-O OEM radio at its core and combines with our high-power RF subsystems in a low SWaP package. This 2 channel, C-band amplified radio integrates the necessary RF amplification, control circuitry, and interfaces to achieve higher RF output power, greater throughput, and longer link distances than the stand-alone radio. Offering +10 to +32 VDC, this fully integrated high power radio contains BDAs, RF filtering, and innovative SoC-based monitoring and controls, with link diagnostics.
FEATURES
- Fully Integrated High-Power RF Sub-System & Radio
- Extended Range/Data Rate over Stand-Alone Radio
- Wide Input Voltage, Single DC Supply
APPLICATIONS
- Long Distance High Data Rate ISR Links
- UAS, UGV, and USV Video/Data Links
- Military MANET
- Maritime High-Throughput LOS/NLOS Systems
- Point-To-Point and Mesh Networking
SPECIFICATIONS
| Dimensions (L x W x H) | 4.86″ x 4.81″ x 1.78″ (123.444mm x 122.174mm x 45.212mm) |
| Weight | 32oz (907.19g) |
| RF Connectors | TNC-F |
| Operating Frequency | 4400‐4940 MHz |
| Power output per Channel | Low Data Rate: 10 W High Data Rate: 2 W |
| Operating Temperature | -40 to +40 °C |
| Shock / Vibration | Designed to MIL-STD-810 and Equivalents |
| Ingress Protection Rating | IP68 |
