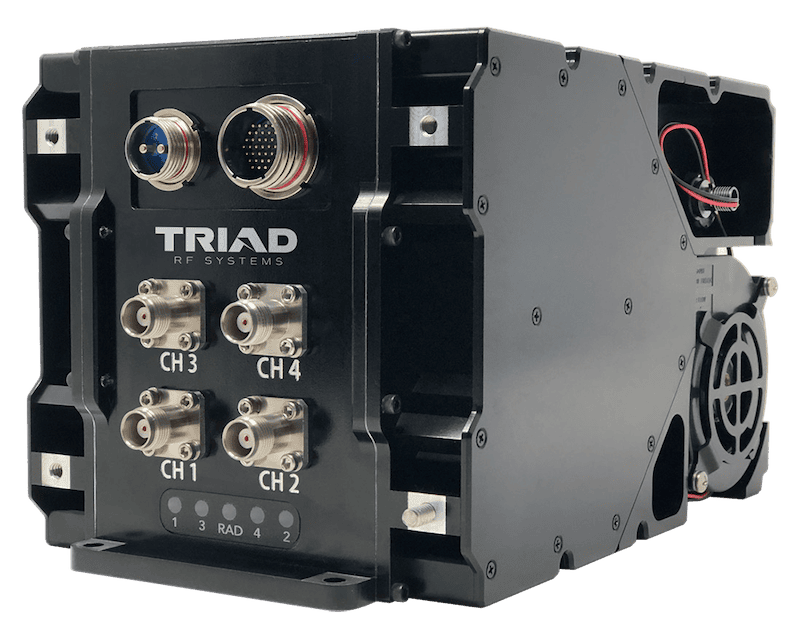

The THPR1070 Triad High Power Radio integrates a Silvus StreamCaster SC4410-467-O radio core with Triad high-power RF subsystems in a low-SWaP package. This four-channel C-band amplified radio operates from 4700 to 5000 MHz and combines the Silvus radio with RF amplification, filtering, control circuitry, and system interfaces. The integrated architecture is designed to provide higher RF output power, greater throughput, and longer link distances than the stand-alone radio.
Operating from a +22 to +32 VDC input, the THPR1070 incorporates bidirectional amplifiers, SoC-based monitoring and control functions, real-time power measurement, and link diagnostics. With 80 W of total THPR power and a 9.21 × 5.77 × 5.35-inch enclosure, the system consolidates radio, amplification, filtering, monitoring, and control hardware for integration into uncrewed platforms.
| Model: | THPR1070 |
| Radio core: | Silvus |
| Band: | C |
| MIMO streams: | 4 |
| Frequency low: | 4700 MHz |
| Frequency high: | 5000 MHz |
| Total THPR power: | 80 W |
| Size: | 9.21 × 5.77 × 5.35 in |
