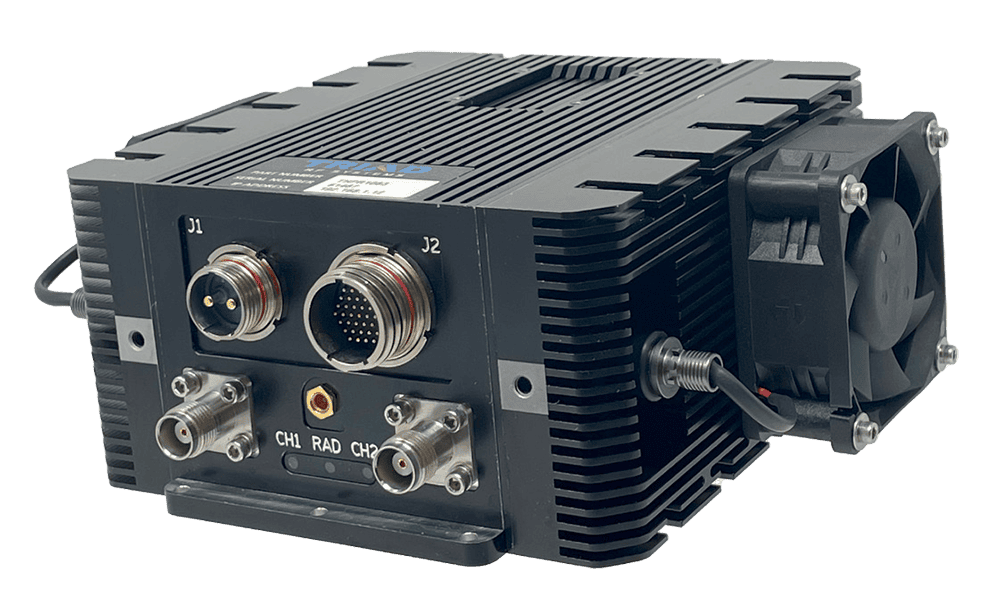

The THPR1078 Triad High Power Radio integrates a Silvus StreamCaster SC4210-139-O radio with Triad high-power RF subsystems in a low-SWaP assembly. This two-channel L-band amplified radio operates from 1350 to 1440 MHz and combines the Silvus radio core with bidirectional amplifiers, RF filtering, control circuitry, and system interfaces. Compared with the stand-alone radio, the integrated configuration is designed to provide increased RF output power, greater throughput, and longer link distances.
Operating from a +16 to +32 VDC input, the THPR1078 incorporates SoC-based monitoring and control functions alongside real-time power measurement and link diagnostics. With 40 W total THPR power and a 5.5 × 5.42 × 2.8-inch footprint, the system brings radio, amplification, filtering, monitoring, and control hardware together in one package for integration into uncrewed platforms.
| Model: | THPR1078 |
| Radio core: | Silvus |
| Band: | L |
| MIMO streams: | 2 |
| Frequency low: | 1350 MHz |
| Frequency high: | 1440 MHz |
| Total THPR power: | 40 W |
| Size: | 5.5 × 5.42 × 2.8 in |
