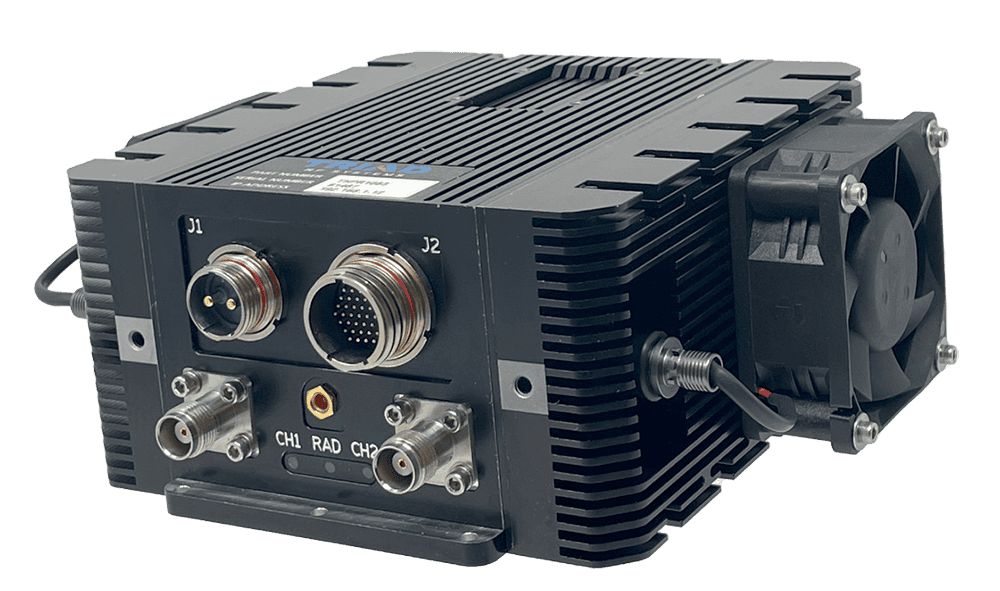

The THPR1079 Triad High Power Radio integrates a Silvus StreamCaster SC4210P-235-O radio core with Triad high-power RF subsystems in a low-SWaP package. This two-channel S-band amplified radio operates from 2200 to 2500 MHz and combines the Silvus radio with RF amplification, control circuitry, filtering, and system interfaces. The integrated architecture is designed to provide higher RF output power, increased throughput, and longer link distances than the stand-alone radio.
Powered from a +16 to +32 VDC input, the THPR1079 incorporates bidirectional amplifiers together with SoC-based monitoring and control functions. Real-time power measurement and link diagnostics provide visibility into radio-link performance, while the 40 W configuration and 5.5 × 5.42 × 2.8-inch enclosure consolidate the required RF and control hardware for integration into uncrewed systems.
| Model: | THPR1079 |
| Radio core: | Silvus |
| Band: | S |
| MIMO streams: | 2 |
| Frequency low: | 2200 MHz |
| Frequency high: | 2500 MHz |
| Total THPR power: | 40 W |
| Size: | 5.5 × 5.42 × 2.8 in |
