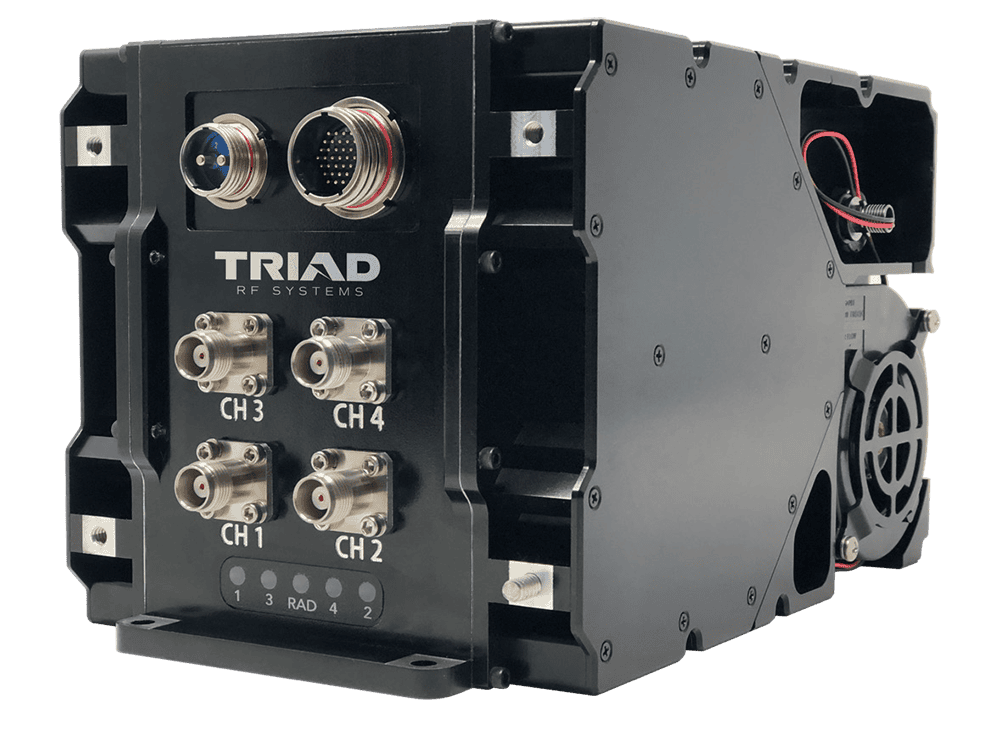

The THPR1053 Triad High Power Radio integrates a Silvus StreamCaster SC4410-139-O radio core with Triad high-power RF subsystems in a low-SWaP enclosure. This four-channel L-band amplified radio operates from 1350 to 1440 MHz and combines the Silvus radio, bidirectional amplifiers, RF filtering, control electronics, and system interfaces. The integrated configuration is designed to deliver higher RF output power, increased throughput, and longer link distances than stand-alone radios.
Powered from a +22 to +32 VDC input, the THPR1053 provides 80 W of total THPR power while incorporating SoC-based monitoring and control functionality. Real-time power measurement and link diagnostics give operators additional visibility into RF system performance, while the 9.212 × 5.773 × 5.35-inch package consolidates amplification, filtering, radio, monitoring, and control functions for integration into uncrewed platforms.
| Model: | THPR1053 |
| Radio core: | Silvus |
| Band: | L |
| MIMO streams: | 4 |
| Frequency low: | 1350 MHz |
| Frequency high: | 1440 MHz |
| Total THPR power: | 80 W |
| Size: | 9.212 × 5.773 × 5.35 in |
