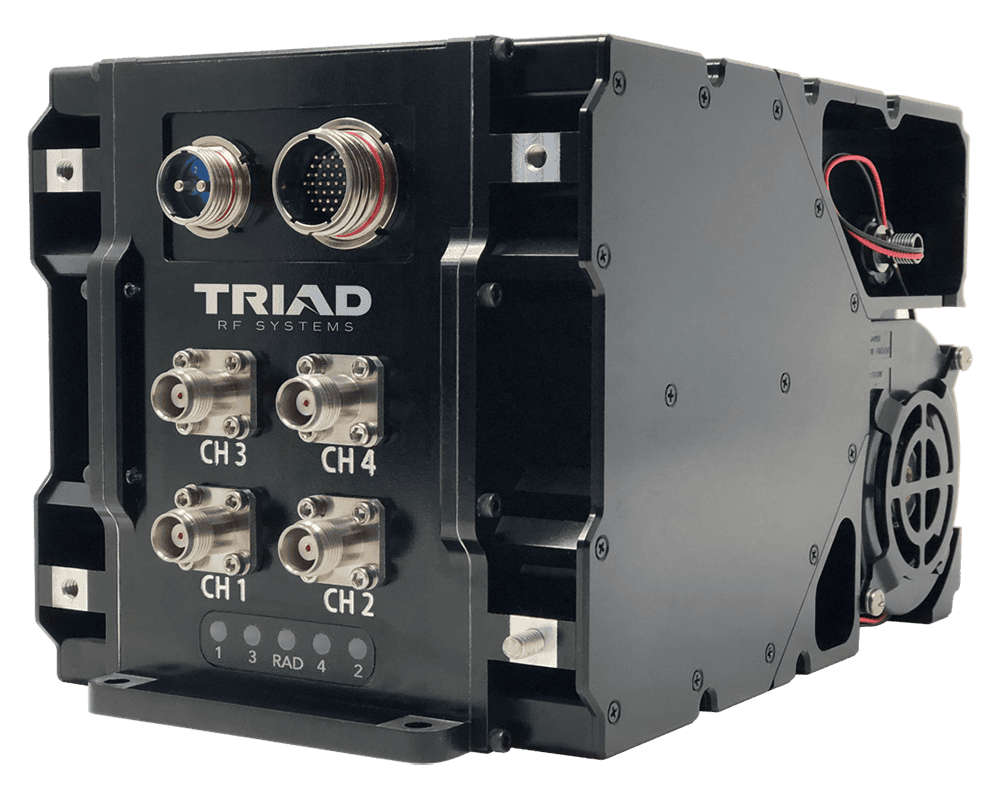

The THPR1060 Triad High Power Radio integrates a Silvus StreamCaster SC4410-235-O radio core with Triad high-power RF subsystems in a low-SWaP package. This four-channel S-band amplified radio operates from 2200 to 2500 MHz and combines the Silvus radio, RF amplification, filtering, control circuitry, and system interfaces. The integrated design is intended to provide higher RF output power, greater throughput, and longer link distances than the stand-alone radio.
Operating from a +22 to +32 VDC input, the THPR1060 delivers 120 W of total THPR power and incorporates bidirectional amplifiers alongside SoC-based monitoring and control functions. Real-time power measurement and link diagnostics provide visibility into RF performance, while the 9.21 × 5.77 × 5.35-inch enclosure consolidates the radio and supporting RF hardware for integration into uncrewed platforms.
| Model: | THPR1060 |
| Radio core: | Silvus |
| Band: | S |
| MIMO streams: | 4 |
| Frequency low: | 2200 MHz |
| Frequency high: | 2500 MHz |
| Total THPR power: | 120 W |
| Size: | 9.21 × 5.77 × 5.35 in |
