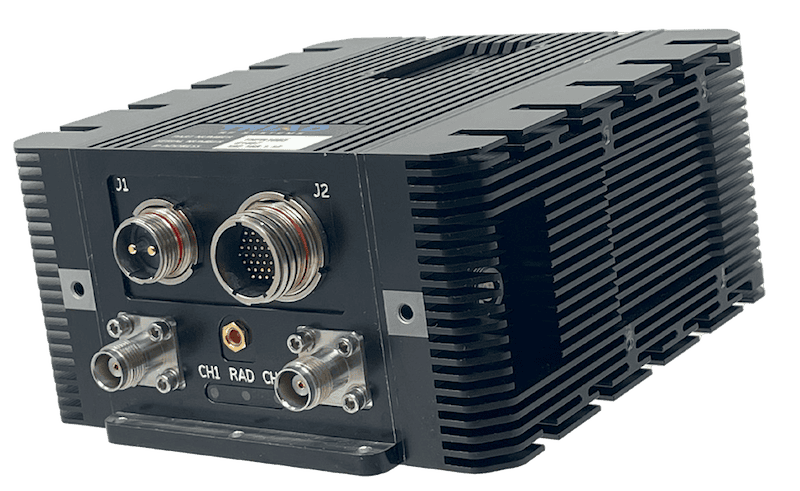

The THPR1083 Triad High Power Radio combines a DTC SOL8SDR-C-234043 radio core with Triad high-power RF subsystems in a low-SWaP package. This two-channel S-band amplified radio operates from 2200 to 2500 MHz and integrates the DTC radio with RF amplification, filtering, control circuitry, and system interfaces. The combined architecture is designed to increase RF output power, improve throughput, and extend link distance compared with the stand-alone radio.
Operating from a +16 to +32 VDC input, the THPR1083 incorporates bidirectional amplifiers, SoC-based monitoring and control functions, real-time power measurement, and link diagnostics. Its 40 W total THPR power rating and 5.5 × 5.42 × 2.8-inch footprint consolidate radio, amplification, monitoring, filtering, and control functions for integration into uncrewed systems.
| Model: | THPR1083 |
| Radio core: | DTC |
| Band: | S |
| MIMO streams: | 2 |
| Frequency low: | 2200 MHz |
| Frequency high: | 2500 MHz |
| Total THPR power: | 40 W |
| Size: | 5.5 × 5.42 × 2.8 in |
