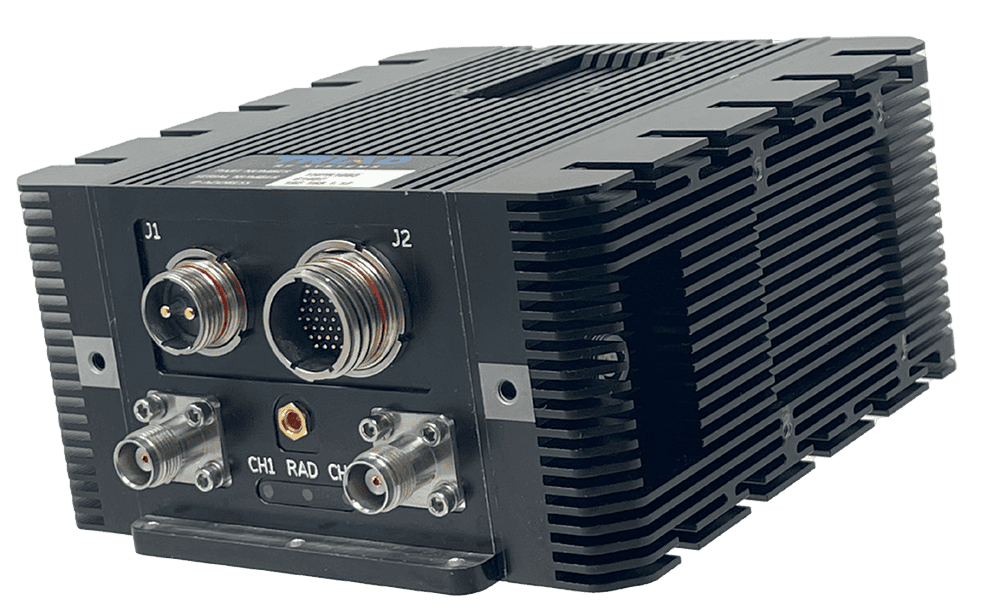

The THPR1076 Triad High Power Radio combines a DTC SOL8SDR-C-132043 radio core with Triad RF amplification hardware in a compact, low-SWaP package. Built as a two-channel L-band system spanning 1140–1450 MHz, it integrates the radio, bidirectional amplifiers, RF filtering, control electronics, and required interfaces within one assembly. The resulting architecture increases RF output, data throughput, and achievable link distance compared with operation of the stand-alone DTC radio.
Designed for +16 to +32 VDC input power, the THPR1076 incorporates SoC-based monitoring and control capabilities alongside real-time RF power measurement and link diagnostics. Its integrated 40 W configuration and 5.5 × 5.42 × 2.8-inch footprint provide uncrewed-system integrators with an amplified radio solution that consolidates multiple RF and control functions into a single package.
| Model: | THPR1076 |
| Radio core: | DTC |
| Band: | L |
| MIMO streams: | 2 |
| Frequency low: | 1140 MHz |
| Frequency high: | 1450 MHz |
| Total THPR power: | 40 W |
| Size: | 5.5 × 5.42 × 2.8 in |
