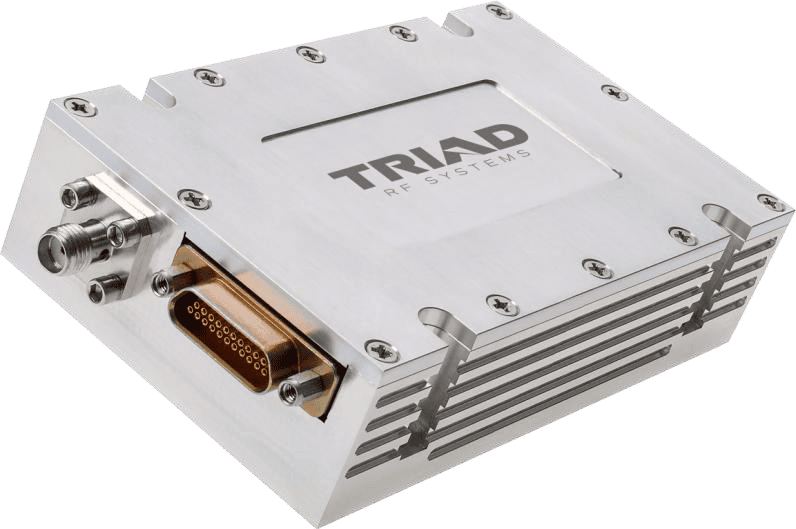

The TA1216 is a 300–6000 MHz, 32 W SISO power amplifier built around class AB GaN technology for wideband RF systems. It delivers 55 dB transmit gain, typical P1dB performance of 42 dBm, and typical saturated output power of 45 dBm from a +12 to +30 VDC supply. The amplifier supports varied signal types and modulation formats, giving integrators a single wide-frequency module for radio architectures that demand substantial RF output across a broad operating span.
Its compact 3.755 × 2.3 × 0.95-inch package is intended for military and commercial systems where power density, efficiency, linearity, and reduced size, weight, and power demand are important design considerations. For uncrewed-system integration, the TA1216 provides a high-output RF amplification option without restricting the platform to a particular waveform or modulation scheme.
| Model: | TA1216 |
| Frequency low: | 300 MHz |
| Frequency high: | 6000 MHz |
| P1dB, typical: | 42 dBm |
| Tx gain: | 55 dB |
| Supply voltage: | 12–30 VDC |
| Psat, typical: | 45 dBm |
| Size: | 3.755 × 2.3 × 0.95 in |
