Actuators are components that convert energy into mechanical motion in order to move or control a mechanism or system. They rely on an energy source such as electrical current, hydraulic pressure or pneumatic pressure, and are activated by a control signal such as voltage, current, pressure or human exertion. Actuators can be found in many subsystems of unmanned aerial vehicles (UAVs) and other robotic vehicles.
Actuators may commonly be linear, converting energy into a straight line motion, or rotary, which use a servo or brushless motor to produce rotational motion and provide mechanical torque.

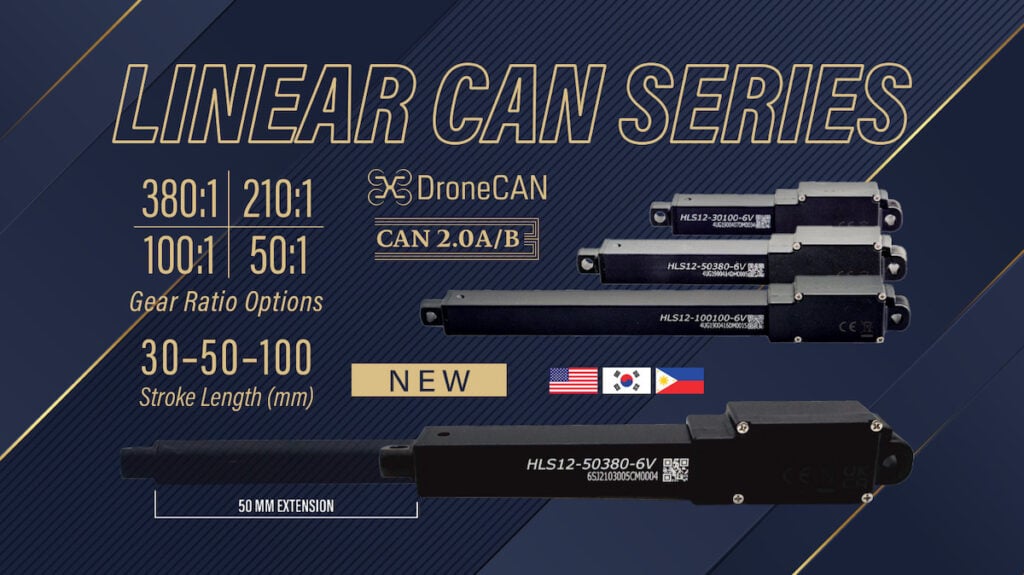

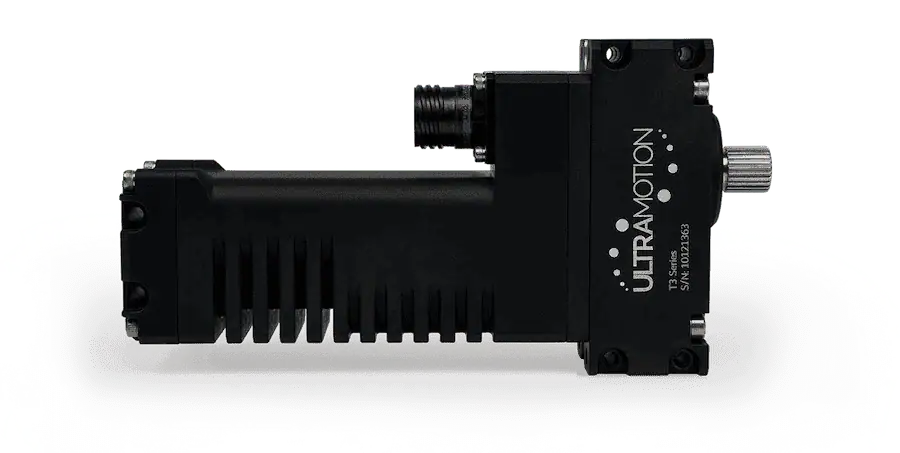

Rotary actuators will either provide a limited angular stroke, or be capable of continuous rotation, which is useful for electro-optical targeting and other positioning and scanning systems on UAVs.
Flight Control Actuation Systems

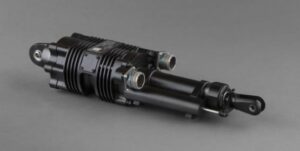

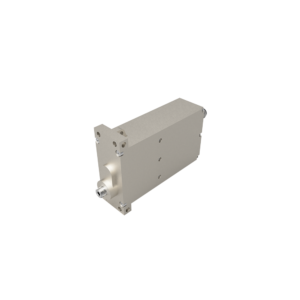

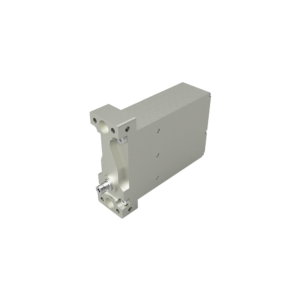

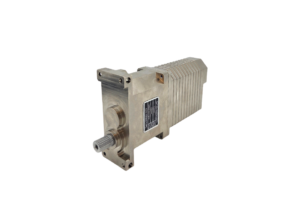

Actuators are also commonly used to move flight and attitude control surfaces on UAVs, such as the elevator, ailerons, flaps and nose wheel. Other unmanned aircraft applications include opening and closing the throttle valve on combustion engines, as well as doors and hatches.
Actuators can be combined with an electromagnetic clutch which can be manually engaged or disengaged. Such a system can be found in Optionally Piloted Vehicles (OPVs), allowing the pilot to switch between unmanned and manned flight modes.
Underwater Actuators for AUVs, ROVs

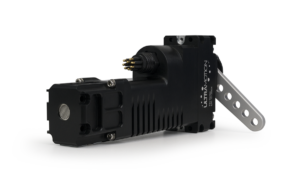

For deep-sea and submersible applications, waterproof actuators can be housed in marine bronze or saltwater-resistant aluminium casings. These actuators are designed to operate under extremes of pressure and submersion and can be found on Remotely Operated Vehicles (ROVs), Autonomous Underwater Vehicles (AUVs) and other underwater robotics.

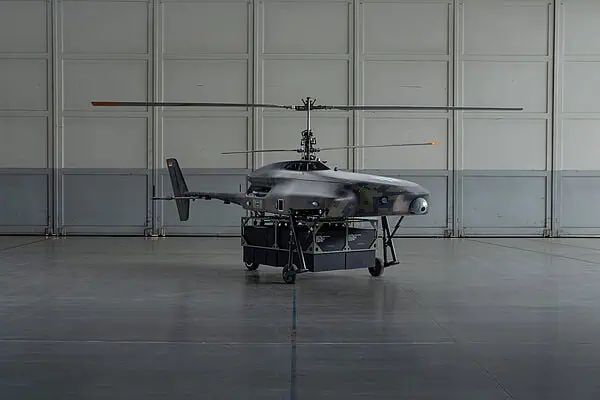

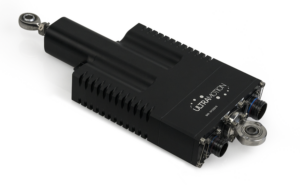

Actuation systems may provide redundancy by incorporating multiple motors, controllers, power sources and other components, thus creating a system architecture tolerant of single points of failure. These systems are important for safety-critical applications such as unmanned helicopters.

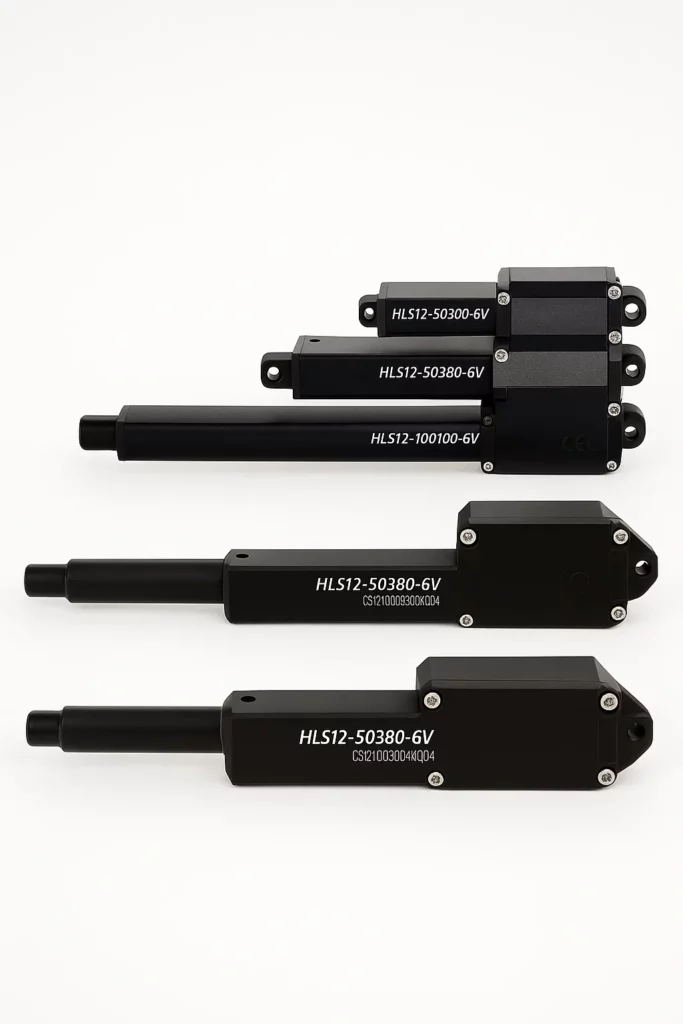

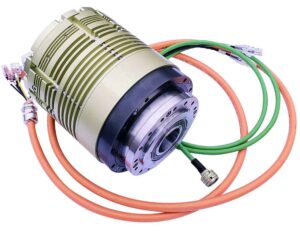

Electric actuators are motor-driven devices that convert electric current input into mechanical motion, either linear or rotary. Linear motion is provided via a screw assembly that may be direct-, belt- or gear-driven, whereas rotary actuators use the output motion of the motor to provide torque.
Electric actuators are compact, relatively quiet and easier to interface into electrical systems than pneumatic or hydraulic actuators. They offer very precise positioning and high repeatability. Encoders can be used to provide complete control over position, velocity, torque, and applied force.
Depending on the design, initial costs of electric actuators may be higher than that of pneumatic and hydraulic actuators. They may also be unsuitable for certain environments such as flammable or electromagnetically sensitive areas.
The different motor types used in electric actuators include: DC, DC servo, DC brushless, DC brushless servo, AC, AC servo, and stepper.

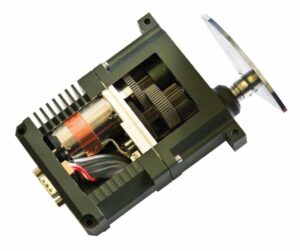

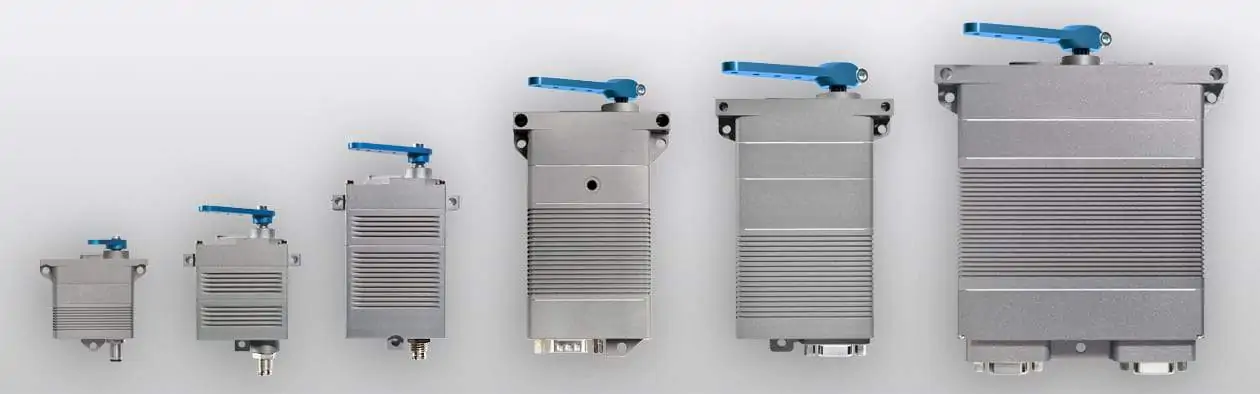

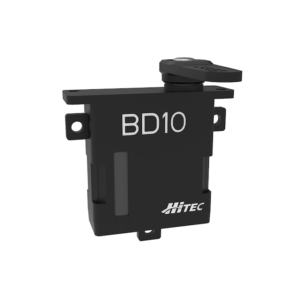

Servo actuators are electric actuators that use additional circuitry and a closed-loop feedback mechanism to provide additional precision and control. The feedback signal is usually generated by a potentiometer or rotary encoder and is produced by comparing the servo’s output signal with a reference input signal.
Servos allow for precise control of position and velocity even while the motor is in motion. The direction of motion can be changed without having to reverse the polarity of the power supply.
Pneumatic actuators use compressed air or other gases from an external compressor or a manual pump to move a piston within a cylinder. They may be single-acting, in which the piston returns to its original position by means of a spring, or double-acting, in which compressed air can be applied to either side of the piston.
Pneumatic actuators have a relatively simple construction and require little maintenance. However, due to pressure losses and air compressibility they are less efficient than other methods of generating linear motion. They also require a compressor to continually run and generate pressure even when no motion is required.
Hydraulic actuators are similar in operation to pneumatic actuators, but use liquid to move a piston instead of gas. Because of the incompressibility of liquid, hydraulic actuators can provide greater output force than pneumatic actuators of the same size.
Hydraulic actuators may suffer loss of efficiency due to fluid leakage. They also require many auxiliary parts, making them bulky and more complicated to maintain.
