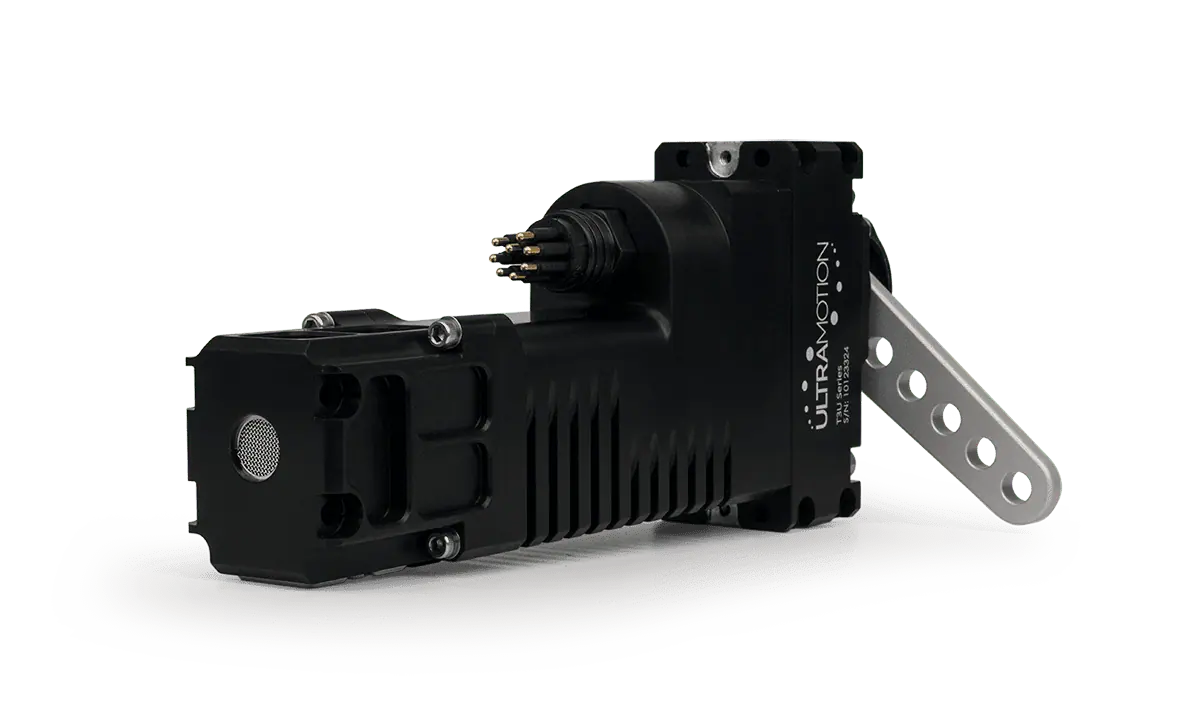

The T3U is a high-performance rotary servo actuator specifically designed for challenging subsea deployments at depths of down to 6000 meters. Featuring a rugged pressure-compensated and oil-filled construction with best-in-class materials and components, it is ideal for a variety of USV and UUV applications including rudder and moving surface control and valve actuation.
The high-torque actuator features integrated brushless DC control electronics and contactless absolute position feedback, and utilizes a unique gearing setup that allows it to handle high transient loads without structural failure. It can be integrated into subsea robotic platforms via a number of interface options including CAN 2.0B, RS-485 serial, or optically-isolated RC PWM, and feeds back a variety of vital information such as absolute position, motor phase current, temperature, bus voltage, and actuator health.
| Allowable Rotation | 360° electronically limited Continuous rotation modes possible |
| No-Load Speed (@ 28 VDC) | 500o/sec peak 310o/sec continuous |
| Continuous Torque | 108 in-lbf |
| Intermittent Torque | 132 in-lbf |
| Peak Static Holding Torque | 172 in-lbf |
| Unpowered Backdrive Torque | 10 in-lbf |
| Nominal Backlash | 0.6o |
