HLS12 Precision Linear Actuators

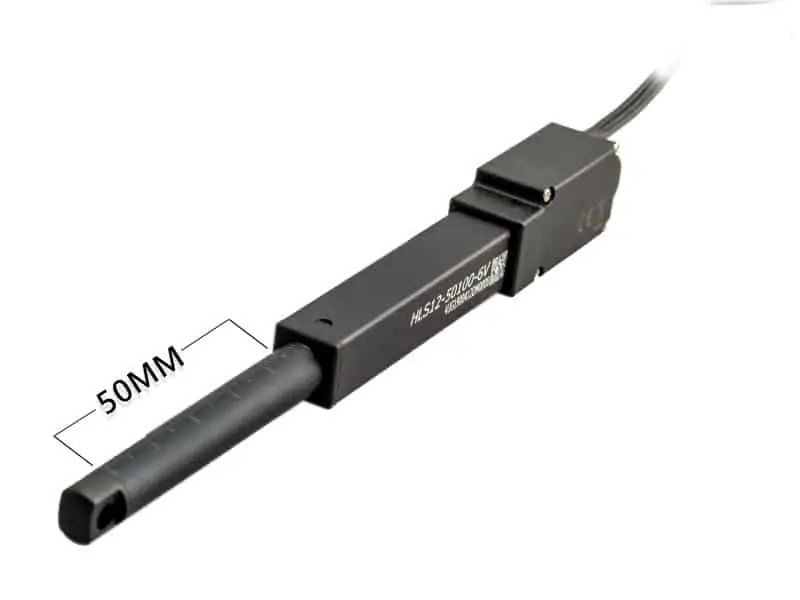

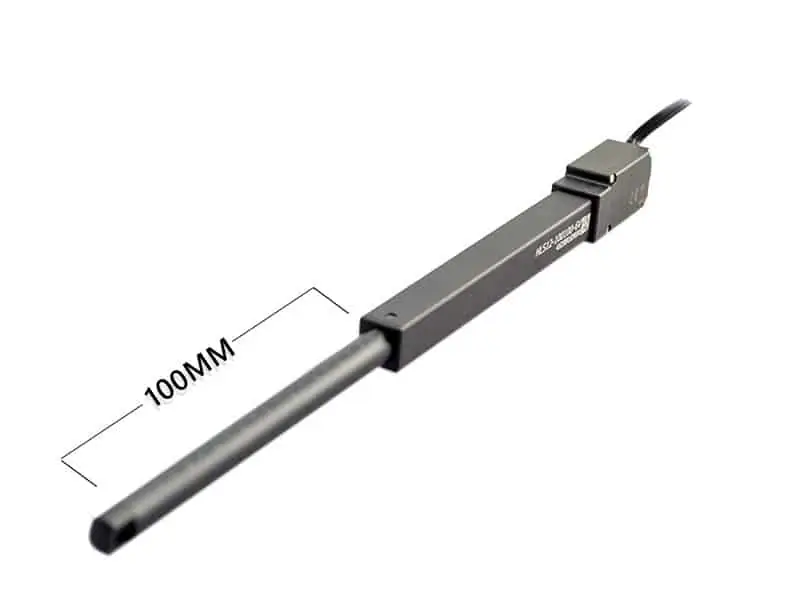

The HLS12 series of precision linear actuators features accurate repeatability and a range of versatile programmable functions in three different stroke lengths.
| 30mm | 50mm | 100mm | |
| Operating Voltage Range | 4.8 – 7.4 VDC | ||
| No Load Speed | 10mm/s @ 4.8V, 13mm/s @ 6.0V, 15mm/s @ 7.4V | ||
| Idle Current | 45 mA @ 4.8V, 50 mA @ 6.0V, 55 mA @ 7.4V | ||
| No Load Current | 75 mA @ 4.8V, 80 mA @ 6.0V, 90 mA @ 7.4V | ||
| Load Speed @ 1.7Kg (17N) | 8mm/s @ 4.8V, 11mm/s @ 6.0V, 13mm/s @ 7.4V | ||
| Load Speed @ 3.1Kg (31N) | 4mm/s @ 4.8V, 7mm/s @ 6.0V, 12mm/s @ 7.4V | ||
| Load Speed @ 4.2Kg (42N) | 3mm/s @ 4.8V, 5mm/s @ 6.0V, 9mm/s @ 7.4V | ||
| Load Current @ 1.7Kg (17N) | 200 mA @ 4.8V, 210 mA @ 6.0V, 220 mA @ 7.4V | ||
| Load Current @ 3.1Kg (31N) | 290 mA @ 4.8V, 300 mA @ 6.0V, 310 mA @ 7.4V | ||
| Load Current @ 4.2Kg (42N) | 390 mA @ 4.8V, 400 mA @ 6.0V, 410 mA @ 7.4V | ||
| Max Static Load | 200 N | ||
| Repeatability | ±0.2mm | ±0.3mm | ±0.5mm |
| Dimensions | 82 x 15 x 18mm 3.23 x 0.60 x 0.70 in |
102 x 15 x 18mm 4.02 x 0.60 x 0.70 in |
152 x 15 x 18mm 5.98 x 0.60 x 0.70 in |
| Weight | 34g / 1.20 oz | 40g / 1.41 oz | 56g / 1.98 oz |
