Hitec is a leading designer and manufacturer of high-quality actuators for unmanned systems and robotics, as well as a supplier of fixed-wing, quadcopter and hybrid VTOL UAVs/drones for a wide variety of aerial applications. Our mission-critical actuation technologies are used in UAVs, UGVs, AUVs and ROVs worldwide, and our partnerships with leading UAV manufacturers provide efficient, innovative solutions for mapping, data acquisition and many other applications.
Linear & Brushless Servo Actuators, Professional Fixed-Wing & VTOL Mapping UAVs/Drones
Hitec Commercial Solutions
High Performance Servo Actuators
Our precision motion control solutions deliver unrivalled reliability, power, speed, and durability. Our off-the-shelf and custom actuators are designed for challenging and demanding industrial and commercial applications, such as military retrieval ROVs, UAVs/RPAS, Autonomous Vehicles and Robotics.
Linear Actuators for UAVs, Robotics and Unmanned Vehicles
The HLS12 series of precision linear actuators features accurate repeatability and a range of versatile programmable functions in three different stroke lengths.
| 30mm | 50mm | 100mm | |
| Operating Voltage Range | 4.8 – 7.4 VDC | ||
| No Load Speed | 10mm/s @ 4.8V, 13mm/s @ 6.0V, 15mm/s @ 7.4V | ||
| Idle Current | 45 mA @ 4.8V, 50 mA @ 6.0V, 55 mA @ 7.4V | ||
| No Load Current | 75 mA @ 4.8V, 80 mA @ 6.0V, 90 mA @ 7.4V | ||
| Load Speed @ 1.7Kg (17N) | 8mm/s @ 4.8V, 11mm/s @ 6.0V, 13mm/s @ 7.4V | ||
| Load Speed @ 3.1Kg (31N) | 4mm/s @ 4.8V, 7mm/s @ 6.0V, 12mm/s @ 7.4V | ||
| Load Speed @ 4.2Kg (42N) | 3mm/s @ 4.8V, 5mm/s @ 6.0V, 9mm/s @ 7.4V | ||
| Load Current @ 1.7Kg (17N) | 200 mA @ 4.8V, 210 mA @ 6.0V, 220 mA @ 7.4V | ||
| Load Current @ 3.1Kg (31N) | 290 mA @ 4.8V, 300 mA @ 6.0V, 310 mA @ 7.4V | ||
| Load Current @ 4.2Kg (42N) | 390 mA @ 4.8V, 400 mA @ 6.0V, 410 mA @ 7.4V | ||
| Max Static Load | 200 N | ||
| Repeatability | ±0.2mm | ±0.3mm | ±0.5mm |
| Dimensions | 82 x 15 x 18mm 3.23 x 0.60 x 0.70 in |
102 x 15 x 18mm 4.02 x 0.60 x 0.70 in |
152 x 15 x 18mm 5.98 x 0.60 x 0.70 in |
| Weight | 34g / 1.20 oz | 40g / 1.41 oz | 56g / 1.98 oz |
Learn more: Linear Actuators

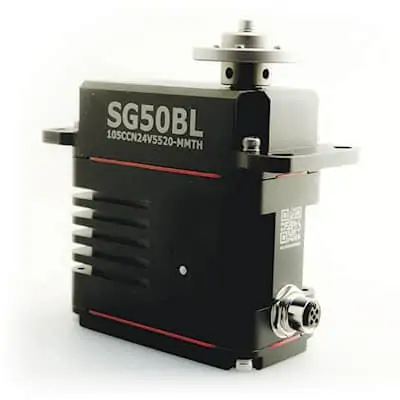

SG Series Brushless Actuators
The SG actuator series features high-performance brushless DC motors with the option of either steel or titanium gears.
Encased with a rugged, IP67 rated anodized aluminium alloy casing, these actuators are capable of 360 degree proportional rotation and are ideal for a wide range of rotary applications within UAVs and robotic platforms.
| SG29 | SG33 | |
| Operating Voltage Range | 9 – 15 VDC | |
| No Load Speed | 0.17 – 0.14 seconds per 60° 61 – 74 RPM 364° – 444° deg/sec |
0.20 – 0.17 seconds per 60° 49 – 60 RPM 295° – 360° deg/sec |
| Max Torque Range | 1035 – 1265 oz./in. 74.5 – 94.1 kg/cm 731 – 893.5 Ncm |
1843 – 2253 oz./in. 132.7 – 162.2 kg/cm 1301.6 – 1590.9 Ncm |
| Idle Current | 45 mA | 45 mA |
| No Load Current | 630 mA | 500 mA |
| Dimensions | 64 x 29 x 97 mm 2.52 x 1.14 x 3.82 in |
64 x 33 x 95 mm 2.52 x 1.30 x 3.74 in |
| Weight | 380g/13.40 oz | 400g/14.41 oz |
Learn more: SG Series Actuators
Brushless Series – 20mm Actuators
The Brushless Series of high-performance 20mm actuators for robotics and unmanned systems features programmable 12-bit PWM Digital Circuitry, low power consumption for energy efficiency, and constant torque output across the entire voltage range.
Brushless Series Actuators – Steel Gears:
| HSB-9465SH | HSB-9475SH | HSB-9485SH | |
| Voltage | 6.0-7.4V | ||
| No Load Speed | 111-143 RPM | 77-100 RPM | 56-67 RPM |
| Max Torque Range | 132 Ncm | 190 Ncm | 255 Ncm |
| Dimensions | 40.0 x 20.0 x 37.0 mm 1.58 x 0.79 x 1.48 in |
||
| Weight | 62g/2.19 oz | ||
Brushless Series Actuators – Titanium Gears:
| HSB-9360TH | HSB-9370TH | HSB-9380TH | HSB-9381TH | HSB-M9381TH | HSR-M9382TH | |
| Voltage | 6.0-7.4V | |||||
| No Load Speed | 133-167 RPM | 83-100 RPM | 59-71 RPM | 59-71 RPM | 59-71 RPM | 59-71 RPM |
| Max Torque Range | 167 Ncm | 265 Ncm | 383 Ncm | 383 Ncm | 383 Ncm | 383 Ncm |
| Dimensions | 40.0 x 20.0 x 38.0 mm 1.58 x 0.79 x 1.50 in |
|||||
| Weight | 68g/2.40 oz | |||||
Learn more: Brushless Series Actuators

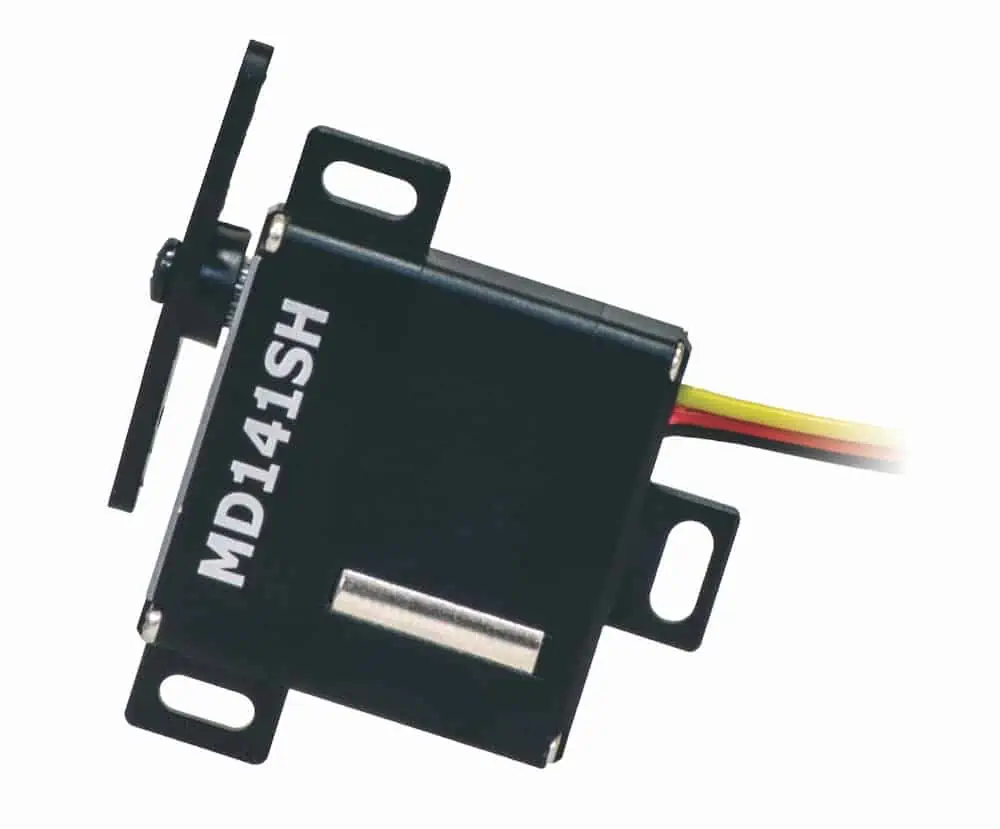

MD Series & MD Series Waterproof Actuators
The MD Series of IP65-rated heavy-duty actuators for robotics and unmanned systems features high-resolution programmable 32-bit digital circuitry, magnetic encoder position sensors, and a wide variety of protocol capabilities including CAN Bus (2.0A or 2.0B), UAVCAN, RS-485, PWM & TTL.
MD Series Actuators – 10-13mm:
| MD145SW | MD65MG | MD70MH | MD85MG | MD89MW | |
| Size | 10mm | 12mm | 12mm | 13mm | 13mm |
| Voltage | 4.8-7.4V | 4.8-6.0V | 4.8-7.4V | 4.8-6.0V | 4.8-6.0V |
| No Load Speed | 47-71 RPM | 47-71 RPM | 67-83 RPM | 59-77 RPM | 59-91 RPM |
| Max Torque Range | 47-72 Ncm | 54-84 Ncm | |||
| Dimensions | 30 x 10 x 37mm 1.18 x 0.39 x 1.45 in |
23.6 x 11.6 x 25.8mm 0.92 x 0.45 x 1.12 in |
23.6 x 11.6 x 30mm 0.92 x 0.45 x 1.18 in |
29 x 13 x 3mm 1.14 x 0.51 x 1.18 in |
|
| Weight | 27.7 g 0.98 oz |
11.9 g 0.42 oz |
14.1 g 0.49 oz |
25.0 g 0.88 oz |
|
MD Series Actuators – 15-20mm:
| MD250MW | MD245MW | MD485HW | MD950MW | MD980TW | |
| Size | 15mm | 17mm | 20mm | 20mm | 22mm |
| Voltage | |||||
| No Load Speed | 50-77 RPM | 59-91 RPM | 50-67 RPM | 44-72 RPM | 36-59 RPM |
| Max Torque Range | 48.1-73.5 Ncm | 41.2-62.8 Ncm | 47-73 Ncm | 255-431.5 Ncm | |
| Dimensions | 35x15x33mm 1.40×0.60×1.30in |
32.4×16.8×32.8mm 1.30×0.66×1.30in |
39.8×19.8x38mm 1.57×0.78×1.50in |
40x20x38mm 1.57×0.79×1.50in |
43.8×22.4x40mm 1.72×0.88×1.57in |
| Weight | 31.0 g 1.09 oz |
34.0 g 1.2 oz |
45.0 g 1.59 oz |
68.0 g 2.4 oz |
79.0 g 2.79 oz |
Learn more: MD Series Actuators
The MD Series Waterproof additionally features IP67 rated casings:
| MD845WP and MDR845WP (Continuous Rotation) |
MD1100WP | |
| Size | 32mm | 33mm |
| Voltage | 4.8-7.4V | 11.1-14.8V |
| No Load Speed | 56-67 RPM | 38-53 RPM |
| Max Torque Range | 318.7-490.3 Ncm | 824-1078 Ncm |
| Dimensions | 66.0 x 32.0 x 62.0 mm 2.6 x 1.26 x 2.44 in |
64.0 x 33.0 x 73.0 mm 2.52 x 1.30 x 2.87 in |
| Weight | 227 g 8.01 oz |
363 g 12.8 oz |
Learn more: MD Series Waterproof Actuators

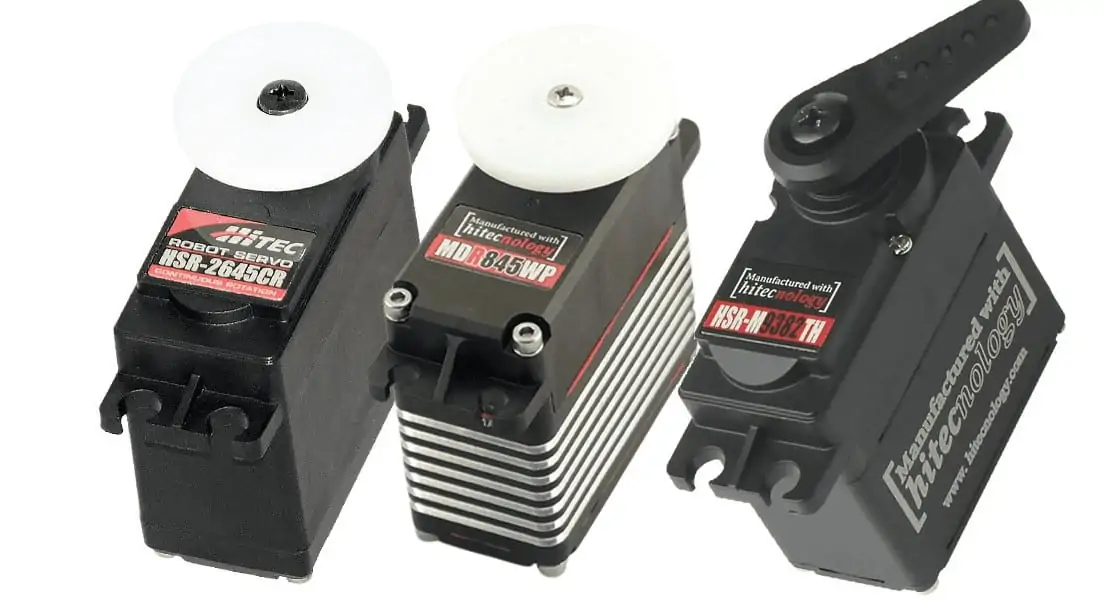

Continuous Rotation Series Actuators
The Continuous Rotation Series features 360 degree proportional rotation for robotic applications.
| HSR-2645CR | HSR-1425CR | MDR845WP | HSR-M9382TH | |
| Gears | Metal | Plastic | Metal | |
| Voltage | 4.8 – 6.0 DVC | 4.8 – 6.0 DVC | 4.8 – 7.4 DVC | 4.8 – 7.4 DVC |
| No Load Speed | 0.22 – 0.14 seconds per 60° 46 – 72 RPM 274° – 432° deg/sec |
0.23 – 0.19 seconds per 60° 43 – 52 RPM 261° – 313° deg/sec |
0.26 – 0.17 seconds per 60° 56-67 RPM 333° – 400° deg/sec |
0.17 – 0.14 seconds per 60° 59-71 RPM 353° – 429° deg/sec |
| Max Torque Range | 111-139 oz./in. 8.0-10.0 kg/cm 79-98 Ncm |
39-47 oz./in. 2.8-3.4 kg/cm 28-33 Ncm |
452-695 oz./in. 32.5-50.0 kg/cm 318.7-490.3 Ncm |
472 oz./in. 34 kg/cm 383 Ncm |
| Idle Current | 10 mA | 10 mA | 30 mA | 27 mA |
| No Load Current | 140 mA | 188 mA | 1600 mA | 250 mA |
| Dimensions | 1.60 x 0.78 x 1.49 in 40.6 x 19.8 x 37.8 mm |
1.60 x 0.78 x 1.44 in 40.6 x 19.8 x 36.6 mm |
2.60 x 1.26 x 2.44 in 66.0 x 32.0 x 62.0 mm |
1.58 x 0.79 x 1.50 in 40.0 x 20.0 x 38.0 mm |
| Weight | 1.87 oz/53 g | 1.47 oz/42 g | 8.01 oz/227 g | 2.40 oz/68 g |
Learn more: Continuous Rotation Series Actuators
Fixed-Wing and VTOL UAV/Drone Platforms
We offer a range of fixed wing and VTOL UAV drone platforms, designed for aerial mapping, surveying, inspections and surveillance. Our professional drones are ideal for use in the following industries: agriculture, construction & excavation, energy & gas, mining & aggregates, and public safety, amongst many others.
XENO FX – fixed-wing UAV for mapping and surveying
The Xeno FX is a proprietary fixed-wing UAV designed for highly efficient mapping, surveying and monitoring missions. Constructed from durable Multiplex Elapor foam, the collapsible modular system is easy to transport, setup and reconfigure.
Featuring fully autonomous flight, the Xeno FX drone can be programmed before launch with custom flight plans to ensure thorough, efficient coverage of the target area. A modular payload bay allows quick swapping of hardware for a variety of missions. Compatible sensor & payload packages include:
- MAPIR Survey3 multispectral survey camera – ideal for general photogrammetry
- MAPIR Kernel single/dual modular camera platform – ideal for highly precise custom missions
- Sentera Double 4K multispectral camera – ideal for precision agriculture
- LWIR thermal camera payload – ideal for first responder, security and wildlife monitoring.
UAV specifications:
| Weight | 2.35 lbs. (1.1 kg) with standard camera |
| Wingspan: | 49 in. (1245 mm) |
| Cruising Airspeed: | 27-45 mph |
| Endurance: | 60 minutes |
| Max Survey Range: | Up to 675 acres per flight (2.73 km2) @ 400 ft AGL |
Learn more: XENO FX – fixed-wing UAV

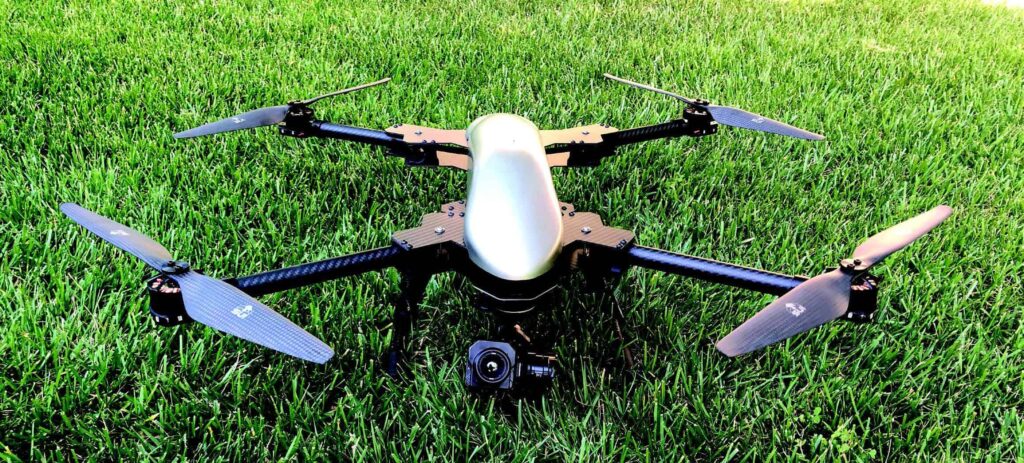

SUI Endurance LT – professional quadcopter drone
The SUI Endurance LT is a professional quadcopter drone built with a lightweight carbon fibre construction and featuring a modular payload bay for quick interchangeability and maximum mission flexibility.
The advanced autopilot capability and robust safety features allow users to seamlessly transition between manual and autonomous flight modes. With Hitec’s Mission Control app, complete survey missions can be programmed from take-off to landing without any need for manual control.
Thanks to lithium ion smart batteries and optimised aerodynamic design, the SUI Endurance LT drone features an endurance of over 30 minutes, maximising area coverage with every flight.
The SUI Endurance LT payload bay compatibility includes:
MAPIR Survey3 multispectral survey camera – ideal for general photogrammetry- MAPIR Kernel single/dual modular camera platform – ideal for highly precise custom missions
- Parrot Sequoia multispectral camera – ideal for precision agriculture
- FLIR Duo/Duo R thermal & visual camera payload – ideal for first responder, security and wildlife monitoring.
UAV specifications:
| Weight | 5.7 lbs. (2.6 kg) with standard camera |
| Frame Size Extended: | 28.5 in. (725mm) Motor-to-Motor |
| Frame Size Folded: | 20 x 11.5 x 10 in. (508 x 292 x 254 mm) |
| Endurance: | 30 minutes |
Learn more: SUI Endurance LT – quadcopter drone
Quantum Systems Trinity – fixed-wing VTOL (hybrid) drone
The Quantum Systems Trinity is a compact fixed-wing VTOL UAV precision engineered from Elapor foam and advanced composite materials. With its intuitive assembly and unique VTOL capabilities, it provides the ability to fly a wide range of aerial missions providing superior endurance and coverage.
The system includes inbuilt PPK and an iBase GNSS reference station for increased geotagging precision and improved data post-processing. Live air traffic information can be incorporated via support for the pingUSB dual-band ADS-B receiver.
The payload compartment can be 3D printed to fit custom configurations. Integrated payload packages include:
Sony UMC-R10C 20.1 MP camera payload – ideal for surveying, mapping, GIS and disaster control- Quantum Snap NIR-RED/GREEN Multi-Spectral Imaging System – ideal for precision agriculture
- Professional Combined Payload Package – ideal for advanced agricultural analytics including growth & health monitoring, volume calculation and insurance projects.
UAV specifications:
| Weight | 9.9 lbs. (4.5 kg) with standard camera |
| Wingspan: | 7.48 ft. (2.394 m) |
| Cruising Airspeed: | 38 mph (17 m/s) |
| Endurance: | 60 minutes |
| Max Survey Range: | 70 km (500 ha) |
Learn more: Trinity – fixed-wing VTOL drone
UAV/Drone Ground Control Station (GCS)
SUI Integrated Ground Controller
The SUI Integrated Ground Controller is a handheld control station for small UAS, transmitting both control and MAVLINK telemetry through a robust RFD900x modem.
The built-in access point provides a wireless telemetry bridge to a centrally mounted tablet or other nearby smart devices or PCs. This telemetry link is compatible with the majority of MAVLINK ground station software, such as Hitec Mission Control, Solex, Tower, Mission Planner, and QGroundControl.
The R/C input channel configuration, switch layout, and specific software features can be custom-configured to suit any mission requirements.
High-Precision Mapping & Data Acquisition App
HCS Mission Control
The HCS Mission Control App allows drone mission planners to quickly and easily plot mission areas and routes, monitor vehicle and payload parameters, and perform fast pre-processing and pre-stitching operations. The intuitive, flexible system allows support for both current and future unmanned aerial systems.
HCS Mission Control features inbuilt mission profiles for a variety of specific unmanned aerial applications based on particular sensors and payloads:
- Area Survey: Cover defined areas with this basic survey mission profile
- Linear Survey: Survey point-to-point features such as pipelines, power lines, and other utilities and transportation infrastructures
- Expanded Search: Search and rescue mission profile for law enforcement and public safety applications
- Perimeter Search: Monitor peripheries for unexpected activity
- Point of Interest (Multirotor UAS Only): Maintain continuous observation of specific objects/targets on the ground.
HCS Mission Control allows direct upload to post-processing software, and is compatible with the following packages:
- Pix4D
- DroneDeploy
- Maps Made Easy
- Drone Mapper
- AgiSoft PhotoScan
Learn more: HCS Mission Control drone mapping app
