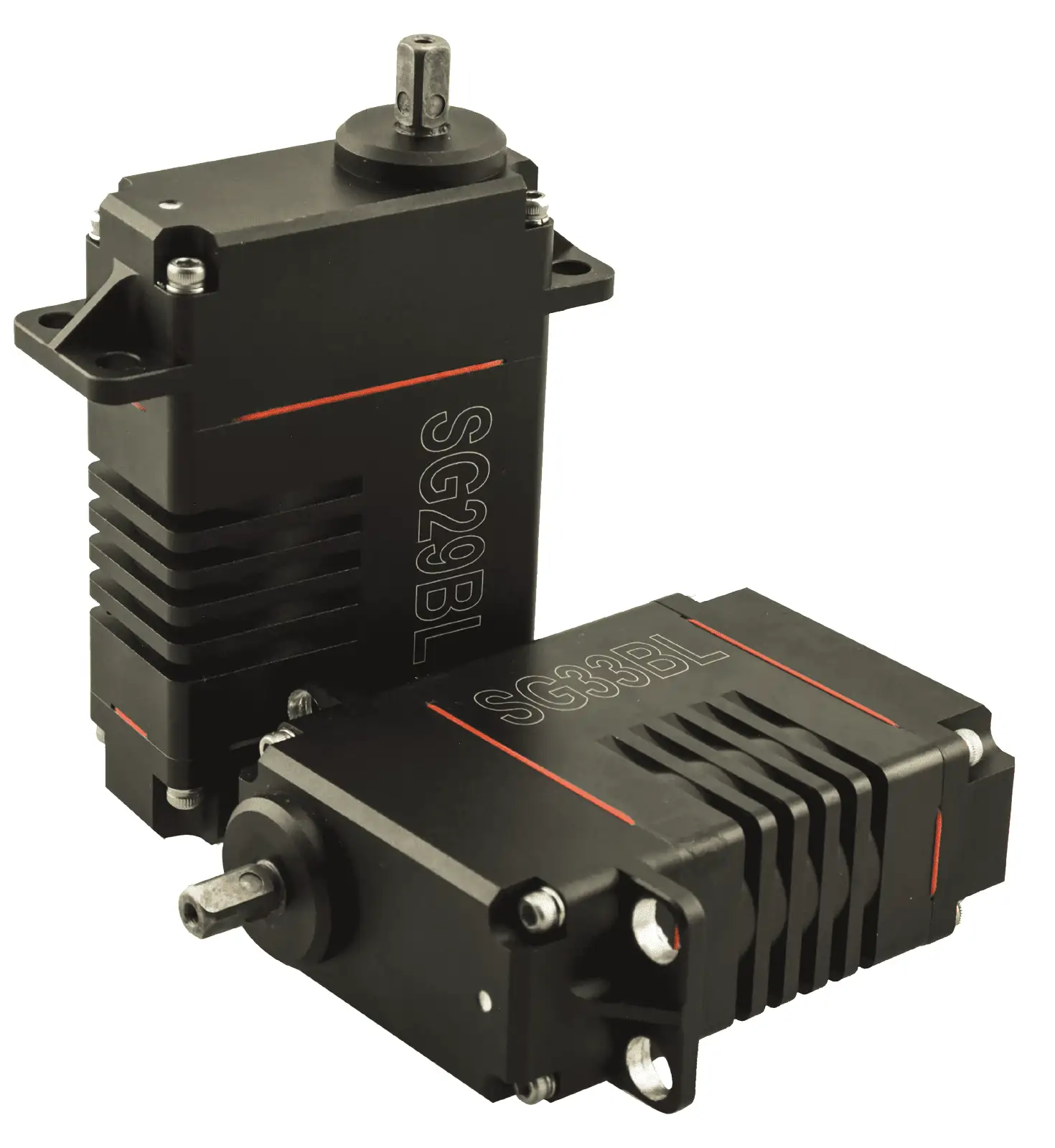

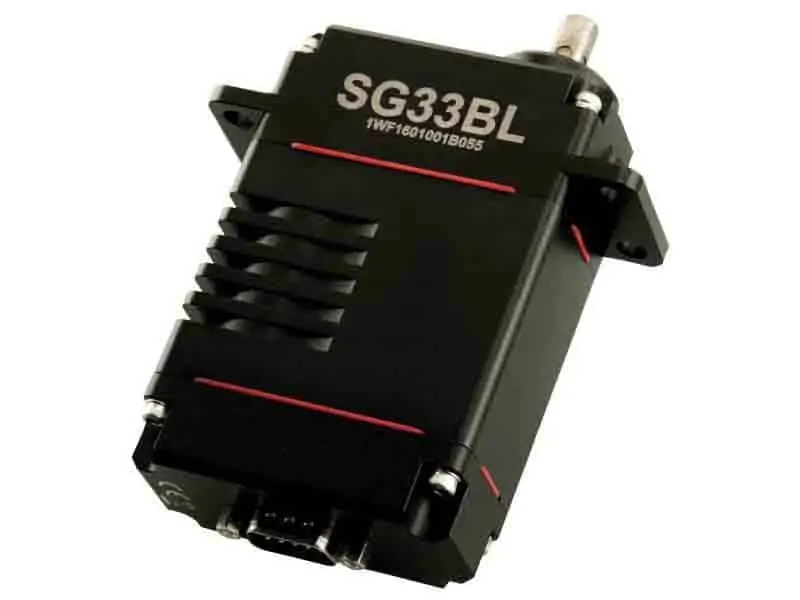

SG Series Brushless Actuators
The SG actuator series features high-performance brushless DC motors with hardened steel gears, and titanium gear options for the SG29 and SG33.
Encased with a rugged, IP67/IP68 rated anodized aluminium alloy casing, these actuators are capable of 360 degree proportional rotation and are ideal for a wide range of rotary applications within UAVs and robotic platforms.
The SG50BL also provides connectivity via CAN and UAVCAN protocols.
| SG29 | SG33 | SG50BL | |
| Operating Voltage Range | 9 – 15 VDC | 18 – 32 VDC | |
| No Load Speed | 0.17 - 0.14 seconds per 60° 61 - 74 RPM 364° - 444° deg/sec | 0.20 - 0.17 seconds per 60° 49 - 60 RPM 295° - 360° deg/sec | 0.5 seconds per 60º 20 RPM |
| Max Torque Range | 1035 - 1265 oz./in. 74.5 - 94.1 kg/cm 731 - 893.5 Ncm | 1843 - 2253 oz./in. 132.7 – 162.2 kg/cm 1301.6 – 1590.9 Ncm | |
| Idle Current | 45 mA | 45 mA | 45 mA |
| No Load Current | 630 mA | 500 mA | 300 mA |
| Dimensions | 64 x 29 x 97 mm 2.52 x 1.14 x 3.82 in | 64 x 33 x 95 mm 2.52 x 1.30 x 3.74 in | 100 x 50 x 105mm 3.93 x 1.97 x 4.13 in. |
| Weight | 380g/13.40 oz | 400g/14.41 oz | 1.45kg/51.15 oz |
