The BD10BL-CAN-DroneCAN is a compact brushless drone actuator designed for small unmanned aircraft requiring lightweight, high-speed, and reliable motion control. Featuring a high-efficiency BLDC motor and contactless magnetic encoder, the actuator delivers accurate positioning and responsive performance for UAV control surfaces and onboard mechanisms. Support for CAN 2.0A/B and DroneCAN enables straightforward integration into modern unmanned aircraft systems.
Built with a lightweight Super Engineering Plastic (SEP) case, the actuator weighs just 11.8 g and is optimized for space-constrained sUAS platforms. The NDAA-compliant design features a 32-bit programmable digital amplifier, programmable travel ranges, and compatibility with Hitec DPC-20 and DPC-CAN programming tools for parameter customization. Rated for more than 500 hours MTTF and 1.2 million cycles, the BD10BL-CAN-DroneCAN provides dependable long-term performance for demanding UAV operations.

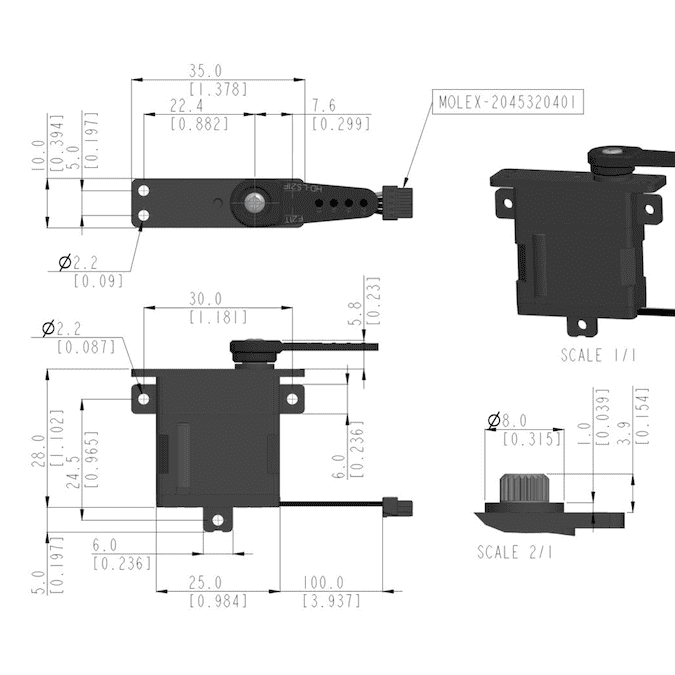

Specifications:
| Case size: | 10 mm |
| Control protocols: | CAN 2.0A/B & DroneCAN |
| Operating voltage: | 4.0V – 8.4V |
| Torque: | 2.8 kgf•cm @ 7.4V |
| Speed: | 0.09 sec/60° @ 7.4V |
| Weight: | 11.8 g |
