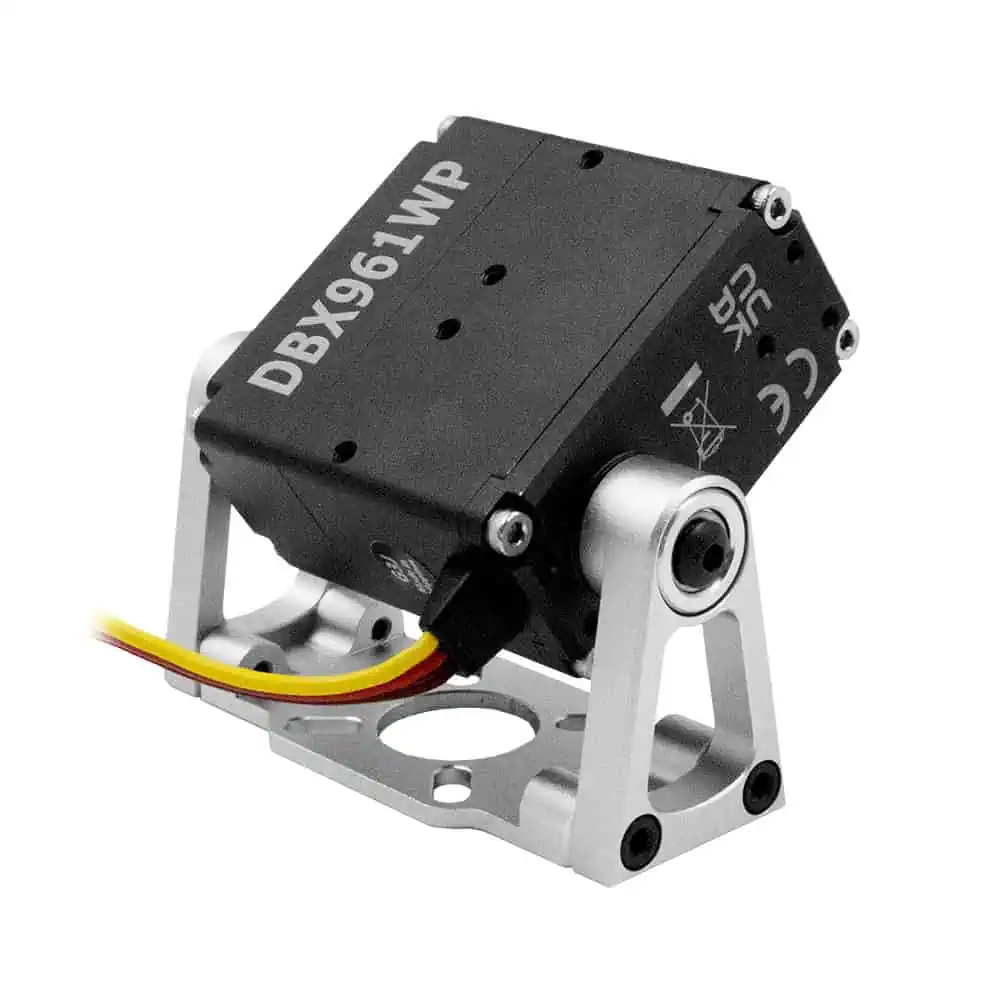

Hitec, a leading designer and manufacturer of high-quality servo actuators, has launched the DBX961WP 20mm robotic axial bracket actuator, setting a new standard in precision, durability, and reliability for high-performance robotic and unmanned aerial systems (UAS).
Designed with advanced technology and military-grade features, this actuator is engineered to meet the demanding needs of industrial applications such as tilt rotor projects, robotic arms, and advanced VTOL (Vertical Take-Off and Landing) drones.
The DBX961WP actuator is built to provide exceptional power and reliability, thanks to its robust construction and high-performance components. Featuring hardened steel gears and dual ball bearings, it ensures smooth operation even under heavy loads and extreme conditions. The actuator is housed in a rugged aluminum alloy case, offering superior protection against the elements and enhancing its durability in both terrestrial and aerial environments.
This actuator is an ideal choice for creating robotic joints, arms, legs, and tilt-wing unmanned aircraft. With a bearing-supported robot bracket, it can handle the intricate movements required for precise positioning in robotic systems. Whether you are working on advanced UAS tilt rotor projects or building complex robotic structures, the DBX961WP is engineered to meet the most challenging demands. The programmable maximum operating travel of 260° of rotation ensures that you can achieve optimal angles for a wide range of mechanical movements.
Powered by an ultra-efficient brushless motor, the DBX961WP actuator delivers superior torque and speed while maintaining high energy efficiency. The brushless motor reduces wear and tear, leading to longer operational life, which is crucial for applications requiring consistent performance over time. The actuator’s PWM/TTL system control, with a pulse width range of 900~2100μs (center at 1500μs), provides precision and flexibility for fine-tuning the actuator’s performance, making it adaptable to various robotic and drone configurations.
One of the standout features of the DBX961WP actuator is its IP-67 waterproof rating, ensuring its functionality even in wet or dusty environments. This makes it the perfect choice for military-grade applications, where reliability in all conditions is paramount. Whether deployed in harsh industrial settings or used for animatronic development, the actuator’s ruggedness ensures longevity and minimizes downtime.
The DBX961WP from Hitec is a powerful, versatile solution for demanding robotic and UAS applications. With its rugged construction, precise control system, and military-grade features, it’s seen as the ideal actuator for engineers and developers looking to take their projects to the next level. Whether for robotic arms, tilt-wing drones, or advanced animatronic designs, the DBX961WP sets a new benchmark in the actuator industry, offering unmatched reliability and performance.
Key Features:
- Bearing-supported Robot Axial BracketÂ
- Optimized for up to 2-Cell LiPo Use
- Ultra-Performance Brushless Motor
- Full ProgrammabilityÂ
- Operating Travel of up to 260° Rotation
- IP67 Waterproof Rating
- Smart Sense Technology for Servo Analytics
- H25T Industry Standard Output Spline
Specifications:
- Speed: 0.15/60° @ 7.4V
- Torque: 764 oz-in (55 kgf-cm) @ 7.4V
- Weight: 106.7g (3.76 oz)
- Size: 40 x 20 x 41mm (1.58 x 0.79 x 1.60in.)
