New Ultra-Miniature Coreless Motor Servo for Small UAVs

Hitec's D131MW delivers excellent torque in a nano-sized package By Mike Ball / 20 Feb 2023
Follow UST

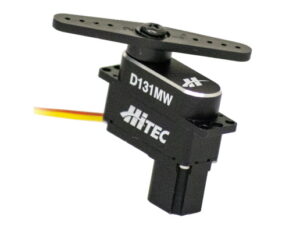

Hitec D131MW servoHitec has launched the D131MW, a miniature slim wing servo for small UAVs (unmanned aerial vehicles) and drones that features a low-profile machined aluminium case, high-efficiency coreless motor, durable metal gears and dual ball bearings. The high-reliability servo is ideal for users requiring high torque in a nano-sized package.

The D131MW can be used with up to two-cell LiPo batteries, and runs on a wide operating voltage of 3.5 to 8.4V. It is fully user-programmable and includes high-response circuitry and built-in Smart Sense technology for advanced analytics.

Key specifications of the D131MW servo include:

Speed: 0.14 sec/60o @6V & 0.11 sec/60o @7.4V
Torque: 33 oz./in. @6V & 40 oz./in. @7.4V
Weight: 0.35 oz. / 9.8g
Dimensions: 0.87 x 0.34 x 0.59 (0.91 w/ motor protrusion) in. / 22 x 8.5 x 15 (23.2 w/ motor protrusion) mm

To learn more, contact Hitec Commercial Solutions: Visit Website Send Message View Supplier Profile
Posted by Mike Ball Mike Ball is our resident technical editor here at Unmanned Systems Technology. Combining his passion for teaching, advanced engineering and all things unmanned, Mike keeps a watchful eye over everything related to the unmanned technical sector. With over 10 years’ experience in the unmanned field and a degree in engineering, Mike’s been heading up our technical team here for the last 8 years. Connect & Contact
