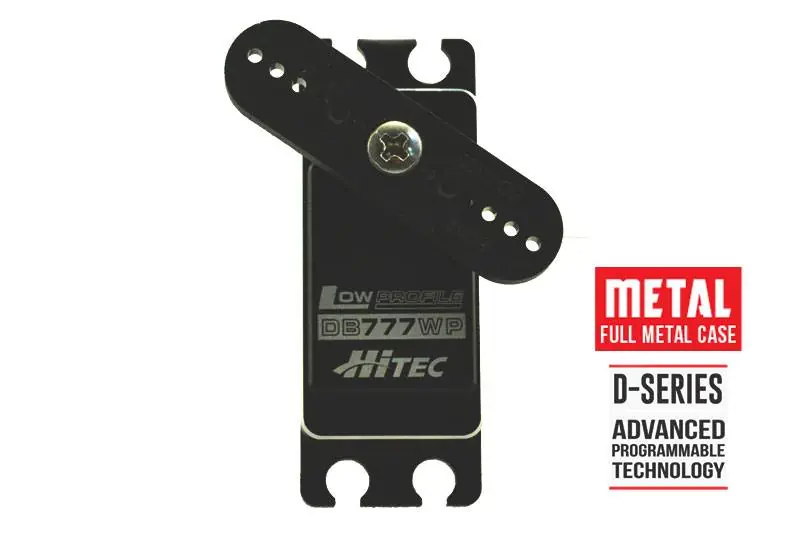

DB Series Brushless Actuators
The DB Series of brushless servo actuators features high-quality construction with hardened steel gears and aluminium IP-67 rated waterproof enclosures for demanding commercial and industrial applications.
The servos feature PWM and PWM/TTL command protocols and a wide range of programmable parameters, including end points, direction, speed and dead bands.
| DB777WP | DB778WP | |
| Operating Voltage Range | 6 – 7.4V | 6 – 7.4V |
| No Load Speed | 0.06 – 0.08 seconds per 60º | 0.10 – 0.12 seconds per 60º |
| Idle Current | 35 – 40 mA | 28 mA |
| No Load Current | 250 – 350 mA | 500 – 600 mA |
| Dimensions | 41.0 x 21.0 x 26.5 mm 1.61 x 0.82 x 1.04 in | 41.0 x 21.0 x 26.5 mm 1.61 x 0.82 x 1.04 in |
| Weight | 68g / 23.98 oz | 70g / 2.47 oz |
