Hitec Commercial Solutions has released MD141SH, a new ultra-precise, magnetic encoder, and high-resolution D141SH digital wing servo actuators.
Engineered with coreless motors and wide operating voltage ranges, these slim wing servos are designed for commercial and military-grade fixed-wing Unmanned Aerial Systems (UAS), as well as larger gliders.
The durable steel gears and 32-bit programmability provide the resilience and precision that critical, tactical missions and in-wing applications require.
Shared Features:
- Wide Operating Voltage 3.7~8.4V • Coreless Motor
- Durable Steel Gears
- All Aluminum Case
- 32-Bit MCU Technology / 4096 Resolution
- High Response, High Resolution Circuitry
- Smart Sense Technology for Servo Analytics • Full Programmability with DPC11 or HFP-30 (sold separately)
- H25T Industry Standard Output Spline
VERIFIED Specifications:
- Dimensions: 1.18 x 0.39 x 1.16 in. (30.0 x 10.0 x 29.5mm.)
- Speed (Second @ 60°): 0.10 @ 7.4V
- Torque (oz. / in.): 97.21 @ 7.4V

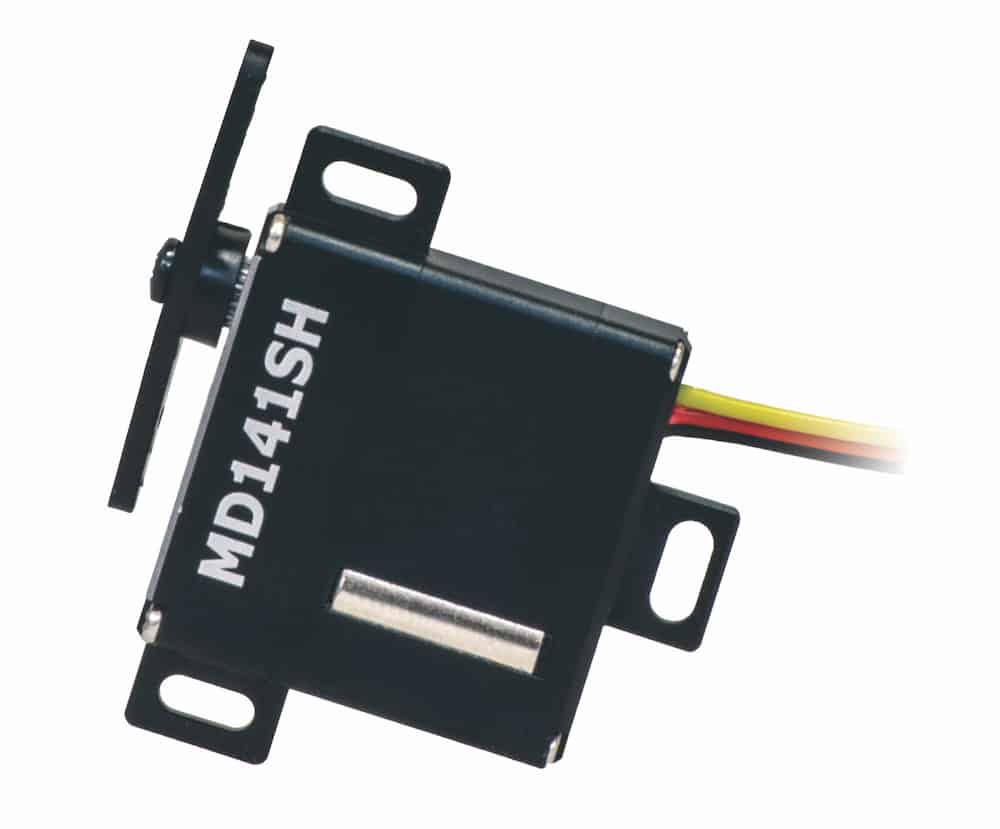

MD141SH Distinct Features & Specifications:
- Contactless Magnetic Encoder
- Default: ±60°, Programmable: Max 320o / Pulse Width: 900~2100μs(Center:1500μs)
- Weight: 26.7g / 0.942 oz.

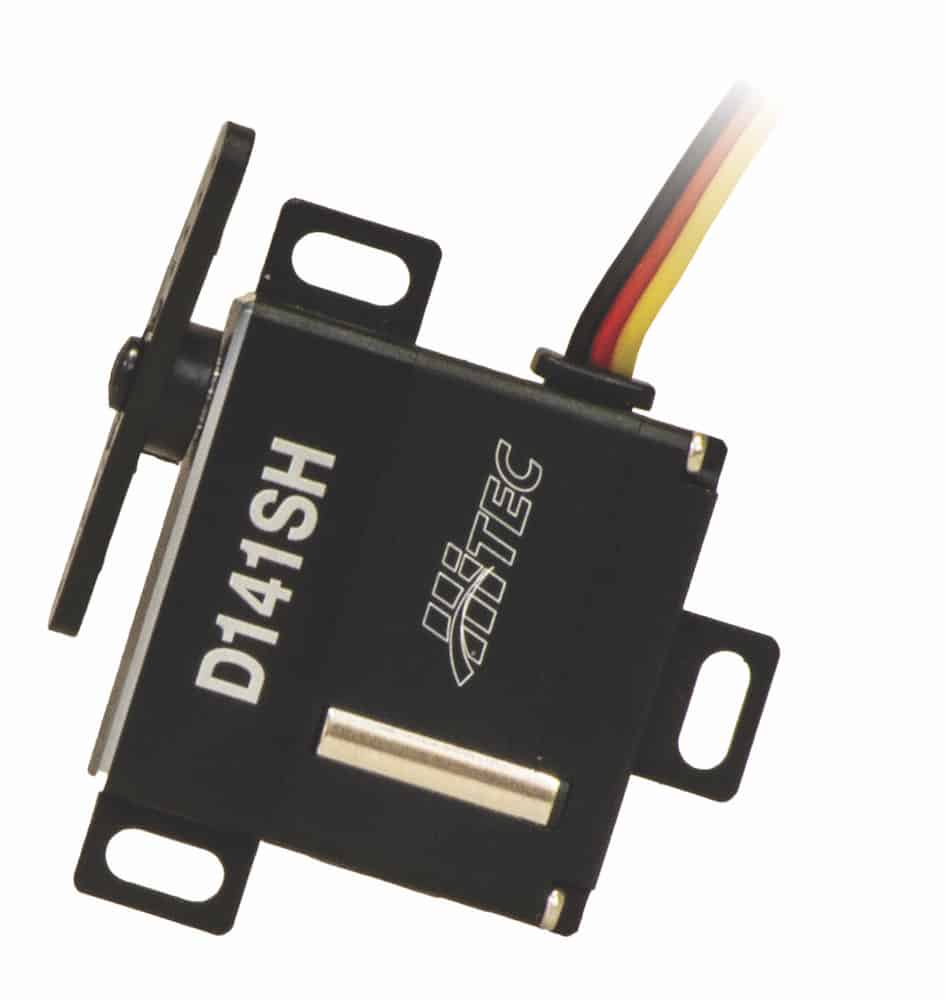

D141SH Distinct Features & Specifications:
- Contact Analog Potentiometer
- Default: ±60°, Programmable: Max 175o / Pulse Width: 900~2100μs(Center:1500μs)
- Weight: 26.0g / 0.917 oz.
Hitec performance specifications are verified and tested by both expert engineers and independent parties.
