Volz Servos

Precision Electro-Mechanical Servo Actuators for Drones, UAVs, Unmanned Systems & Robotics

Volz Servos is a leading developer, manufacturer and supplier of standard, redundant and submersible actuators for a wide range of unmanned systems applications, including UAVs (unmanned aerial vehicles) and UAM (urban air mobility) platforms, UUVs (unmanned underwater vehicles), and ground robotics.

With over 40 years of industry experience, we deliver mission-critical solutions that meet the highest standards of functional safety and reliability and are perfectly tailored to the needs of OEMs, systems integrators, and aerospace primes. Our products are trusted by a wide range of industry leaders such as Thales, Zipline, BETA and Insitu.

Since the incorporation of AEE Aircraft Electronic Engineering GmbH, an EASA-approved production, maintenance and alternative development organization, our know-how has expanded to include a unique focus on certification in the UAV and AAM sectors. This makes it easier for Volz Servos to design customized, certifiable actuators that comply with both European and American aviation law.

Servo Actuators for Unmanned Vehicles

Fully Redundant Actuators

Resilient UAV actuator solutions designed for reliability

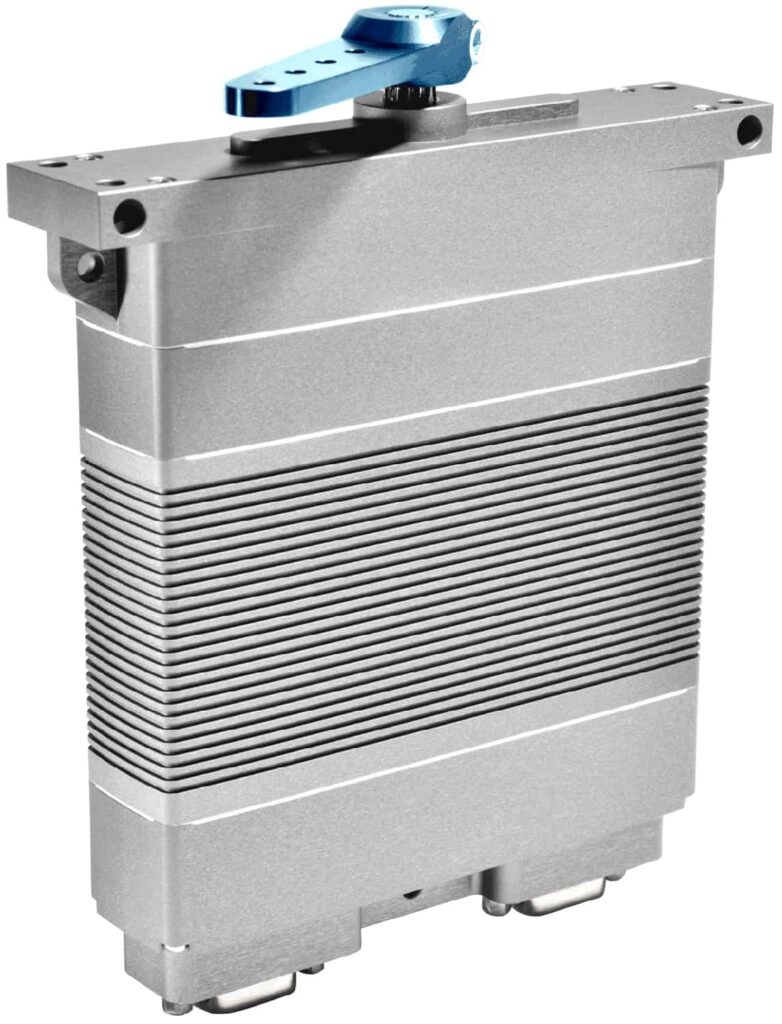

DA 26-D Duplex Redundant Actuator

DA 26-D Duplex Redundant ActuatorThe DA 26-D  is designed for applications where reliability is of the utmost importance. Its two-channel redundant design means that it can continue to operate even after one channel has failed.

A three-channel position sensor is incorporated, as well as several diagnostic sensors that provide continuous information on current consumption, supply voltage levels and temperature readings. Data can be read out via the integrated serial RS-485 interface.

The DA 26-D provides a peak torque of 12 Nm with a 28V supply, and 4 Nm in degraded (1-channel) mode.

More: DA 26-D Duplex Redundant Actuator

Brushless Actuators

Rugged drone actuator technology for harsh environments

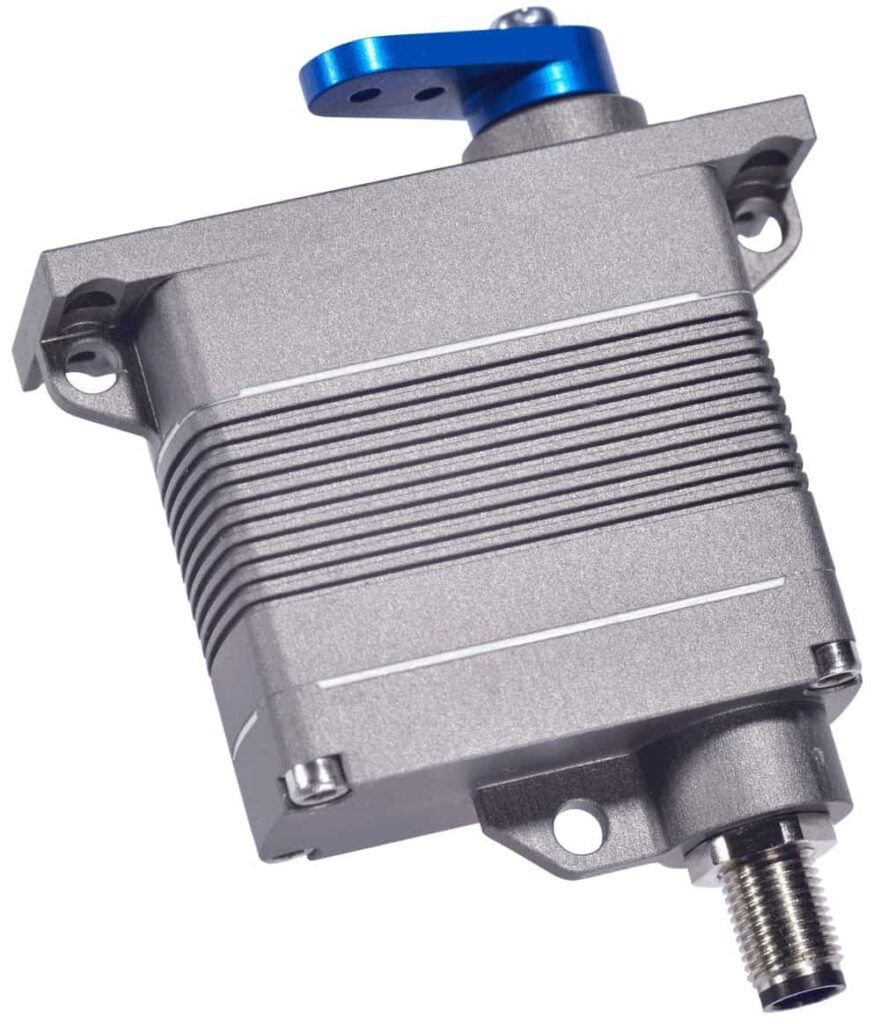

DA 15-N Brushless Actuator

DA 15-N Brushless Actuator

The DA 15‐N is our smallest and lightest full brushless actuator, designed for use in harsh environments and tested for over 4000 hours. With a brushless motor and contactless position sensing system, the DA 15‐N greatly diminishes electromagnetic noise and is immune to wear, vibrations and shock. The HART‐coat treated aluminum housing is saltwater‐resistant and is IP‐67 rated for water and dust protection.

The DA 15-N provides a peak torque of up to 60 Ncm at 6-16V.

More: DA 15-N Brushless Actuator

DA 22-BLDC Brushless Actuator

DA 22 BLDC brushless actuatorThe DA 22-BLDC is a brushless version of our proven DA 22, featuring rugged IP67-rated construction for harsh environments, rigorous testing to MIL-810G standards, and a contactless position sensing system for wear-free operation and long lifespan.

Featuring various housing options, including mechanical compatibility with the original DA 22 for drop-in replacement, as well as a submersible version. Volz also offers customization possibilities for the actuator housing and connectors.

The DA 22-BLDC actuator technology provides a peak torque of 3.5 Nm and is available in either 12V or 28V versions with PWM or RS-485 interface options.

More: DA 22-BLDC Brushless Actuator

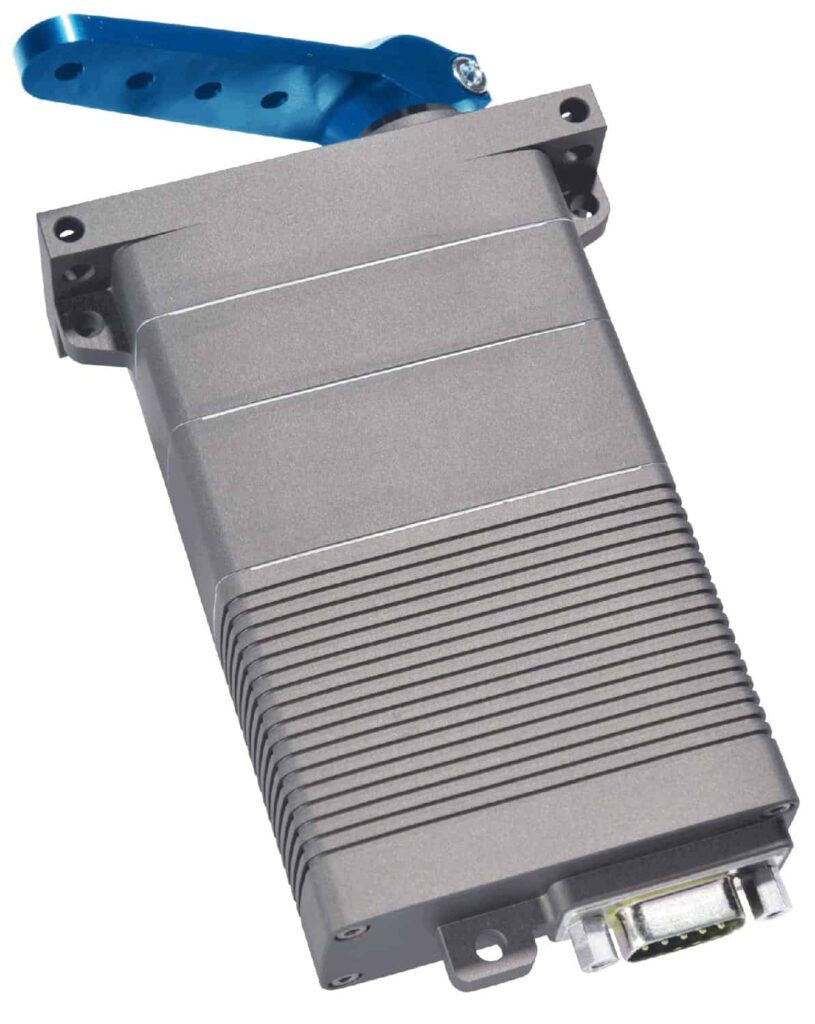

DA 30 Brushless Actuator

DA 30 Brushless Actuator

Our 30mm class of actuators features a brushless motor and a contactless position sensor for maximum service life and reduction of electromagnetic emissions. The HART‐coat treated aluminum housing is saltwater‐resistant and is IP‐67 rated for water and dust protection.

Diagnostic information such as motor and electronic board temperature, internal humidity, current consumption and supply voltage levels can be read using the RS 485 interface.

There are several communication interface options available: opto‐coupler PWM, TTL PWM, serial RS-422, or RS-485 with 2-wire, 4-wire and redundant RS 485.

The DA 30 provides a peak torque of 16 Nm at 28V.

More: DA 30 Brushless Actuator

Throttle Servo Actuators

IP-67 rated, shock and vibration resilient

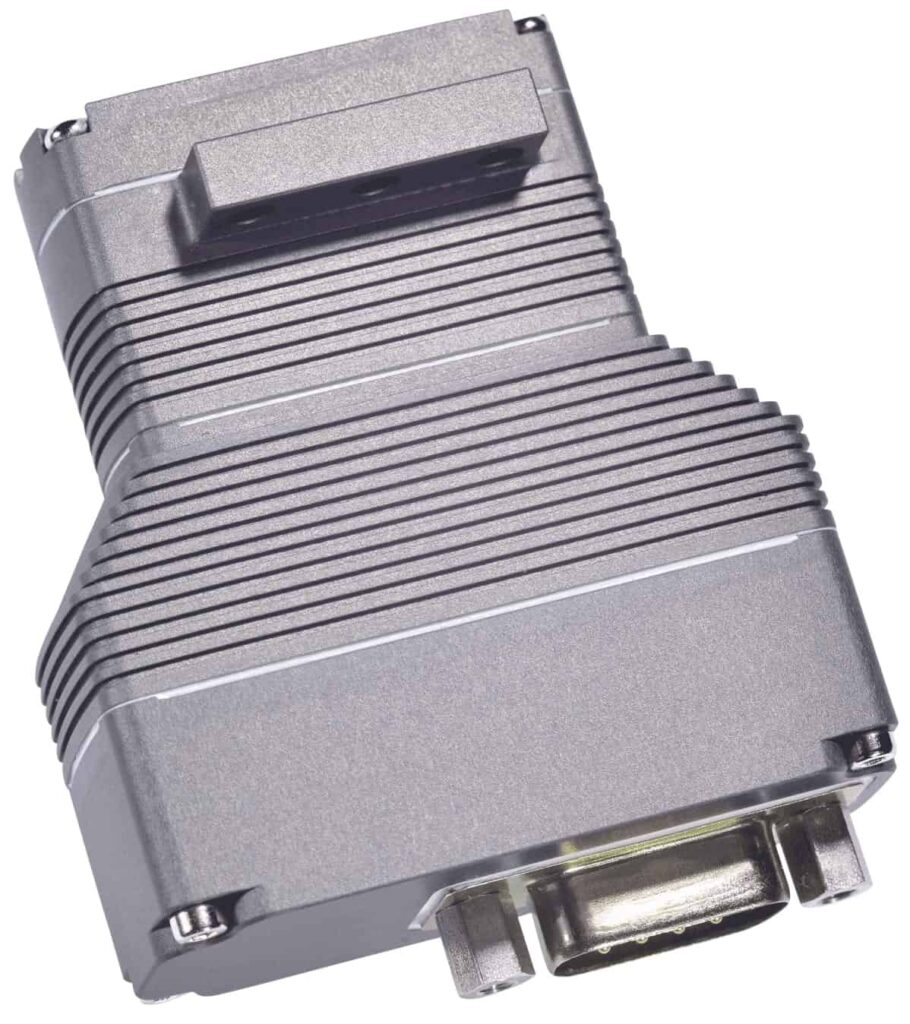

DA 20-TS Throttle Servo

DA 20-TS Throttle ServoThe DA 20-TS throttle servo is a fully programmable, compact fly-by-wire actuator for direct installation on the throttle valve shaft of a combustion engine. It is IP-67 rated, immune to shock and vibration and designed for use at high temperatures.

The RS-485 digital serial command interface can be used to monitor the shaft position as well as diagnostic information such as the supply voltage, the current consumption, and the temperature of the electronics.

The DA 20-TS provides a peak torque of 30 Ncm at 28V.

More: DA 20-TS Throttle Servo

OPV Actuators

Actuator Technology for Optional Piloted VehiclesDA26-MK OPV Actuator with Electromagnetic Clutch

Volz can provide actuators with electromagnetic clutches for Optional Piloted Vehicle (OPV) applications.

In the event of a failure, the clutch can be disengaged and the output shaft can be freely moved, allowing the pilot to control the vehicle.

Please get in touch with your requirements.

More: OPV Actuators

Underwater Actuators

Deep-Sea and Submersible Actuator Technology

DA 22-SUB Underwater Actuator

DA 22-SUB

We have developed several specialized actuators for submersible applications (AUVs, UUVs, ROVs). Every underwater actuator is tested in our test lab for six hours in a pressure tank under a variety of atmospheric pressures.

The DA 22-SUB is CNC machined from marine bronze and is waterproof down to a depth of 100 meters (10 bar / 145 psi). Capabilities include analog position feedback and an integrated moisture and temperature sensor.

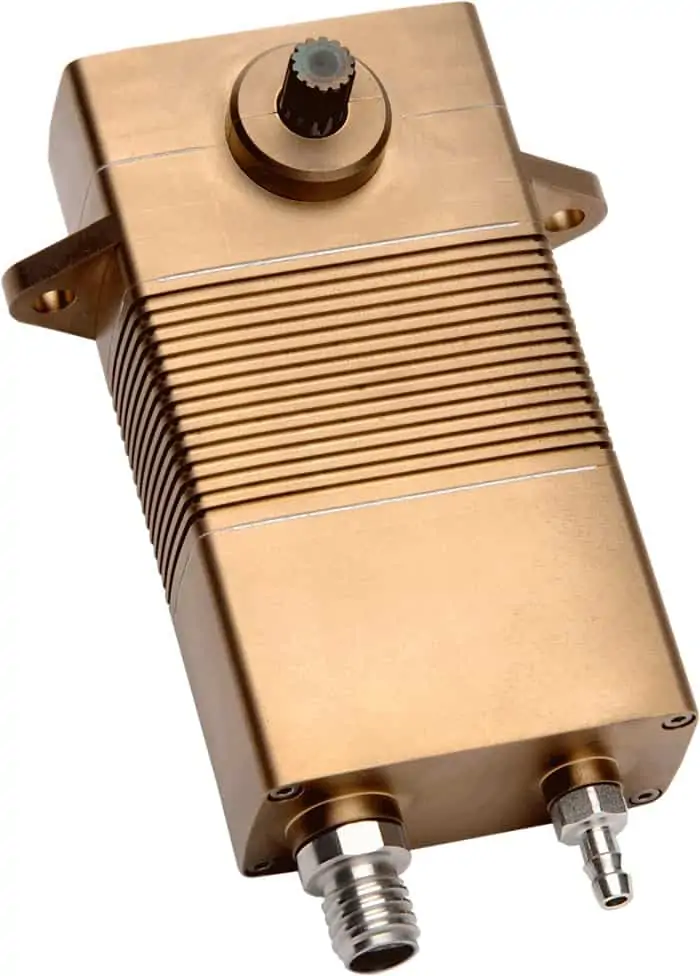

DA 26-90 Oil-Filled Underwater Actuator

DA 26-R

The DA 26R-30-5024 is designed for extreme depth and pressure conditions, and has already been deployed in the field down to 2000m/6600ft. A 90° angled, self-locking output drive provides constant positioning under load.

Submersible actuator housing options include saltwater-resistant aluminum or CNC-machined marine bronze. Communications can be provided via opto-coupler PWM, RS-422 PWM or digital RS-485 options.

Custom Drone Actuators

Customized solutions for unmanned systems & robotics

We can design and manufacture custom actuators for all types of unmanned platform, specializing in adapting actuator technology to our customers unique requirements. This includes mechanical actuator solutions such as adaptation to HALE (High Altitude Long Endurance) UAV applications as well as for underwater projects such as UUV (Unmanned Underwater Vehicles).

Learn more: Custom Actuators

Products

DA 30-HT-D Redundant Actuator

High torque, available 24 to 30 volts

DA 58-D Redundant Actuator

High torque, 24 to 30 volts

DA 30-HT Brushless Actuator

High torque, available 24 to 32 volts

DA 15-N Brushless Actuator

5-16 volts, also available for 28 volts

DA 22-BLDC Brushless Actuator

12 to 28 volts with contactless wear-free position sensing

Articles

Latest
Electromechanical Actuator Partnership Solidifies eVTOL Aircraft Development

Volz Servos partners with BETA Technologies to advance ALIA eVTOL aircraft development, providing electromechanical actuators for innovative fly-by-wire aviation technologies

Nov 25, 2024
Autonomous VTOL UAS Incorporates Reliable Actuators & Servos

Volz Servos outlines the successful performance of their high-quality, reliable servos and actuators in Griffon Aerospace’s hybrid-electric autonomous surveillance VTOL UAV

Nov 07, 2024
High-End Tactical UAS Manufacturer Selects Actuator Supplier

Airbus has chosen Volz Servos as a partner for its SIRTAP UAS, who will supply DA 26 actuators with brushless motors and contactless wear free position sensors for safety & reliability

Jul 11, 2024
Helping UAV and AAM Projects Take Off

Volz Servos Whitepaper: Aviation experts on how to find the right supplier for commercial AAM and UAV projects

Feb 19, 2024
Volz Servos Contracted as Supply Chain Partner for ALIA Project

BETA Technologies has teamed up with Volz Servos to complete its fly-by-wire system for the ALIA CTOL and ALIA VTOL

Oct 09, 2023
Volz Servos Selected as Servo Partner for Aero2

Volz Servos will supply Dufour Aerospace with the fully redundant DA 26-D actuator and the throttle servo DA 15-T for the uncrewed tilt-wing aircraft Aero2

Sep 13, 2023
Volz Servos to Provide Actuators for Long-Range Drone

With Volz Servos, Thales's UAS100 operators can rely on actuation capabilities that meet the highest safety and reliability requirements

Jul 14, 2023
Technology Partnership to Design Lighter Actuators for UAS

Volz Servos and Skydweller Aero will develop and deploy next-generation actuators for a custom high reliability, fly-by-wire actuation system

Jun 19, 2023
Volz Actuators Enable Reliable Steering of High Eye Unmanned Helicopter

Five DA 15 N-ISS servos from Volz ensure reliable and safe control of the swashplate below the rotor on the Airboxer unmanned helicopter

Nov 28, 2022
Volz Servos & AEE Develop Certifiable Actuators

In this article, Volz Servos reflects on a successful year of collaboration with Aircraft Electronic Engineering GmbH (AEE) developing and...

Sep 06, 2022
Volz Servos Provides Actuators for UAVs & Advanced Air Mobility

The company's components are durable, lightweight and can be certified as part of the system

Jul 11, 2022
Volz Servos Acquires Specialized Avionics Firm

Volz Servos has recently acquired Aircraft Electronic Engineering (AEE), a specialist avionics company that develops, qualifies, certifies, produces, and maintains customer-specific electronics and systems for...

Aug 17, 2021
Volz Servos Incorporate Autopilot Compatible CAN Bus Interface

Working with autopilot and critical drone component supplier Embention, leading actuator manufacturer Volz has incorporated a CAN Bus (Controller Area...

May 10, 2021

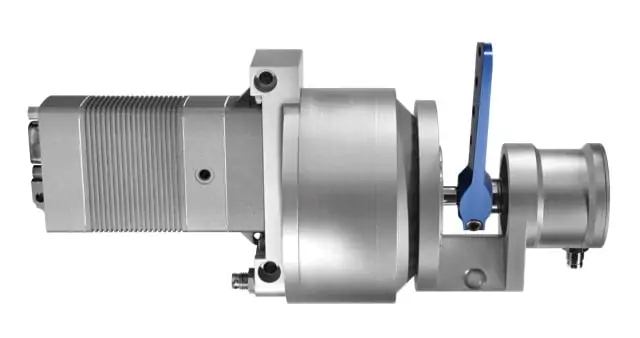

Volz Servos Adds External Position Sensors to OPV Electromagnetic Clutches

Volz Servos, a manufacturer of electro-mechanical actuators for robotics and unmanned vehicles, has announced that it now offers its electromagnetic...

May 02, 2018
Volz Servos Achieve Over 200,000 Flight Hours in Aerosonde SUAS

Volz Servos has announced that the company’s servos have successfully flown over 200,000 hours in Textron Systems’ Aerosonde Mk4.7 Small...

Sep 22, 2017

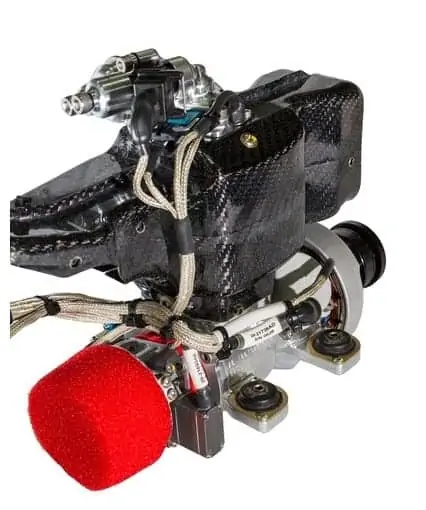

Volz Throttle Servo Selected for ScanEagle UAV Engine
