MKS Servos (MARK STAR Servo-tech) is a leading developer of brushless servo actuators for UAVs (unmanned aerial vehicles), drones and unmanned systems. Our drone servo motors are designed to deliver maximum torque, speed and efficiency in a low-SWaP package, and are manufactured to strict ISO9001:2016 quality standards.
Our Zeus servo motors are the actuator of choice for a wide variety of unmanned systems, from large high-altitude uncrewed aircraft through to miniature robotic submarines. The heavy-duty servos can be customized for any output angle range up to 360 degrees, with a choice of PWM, RS-485, CAN 2.0 or DroneCAN communications protocols.

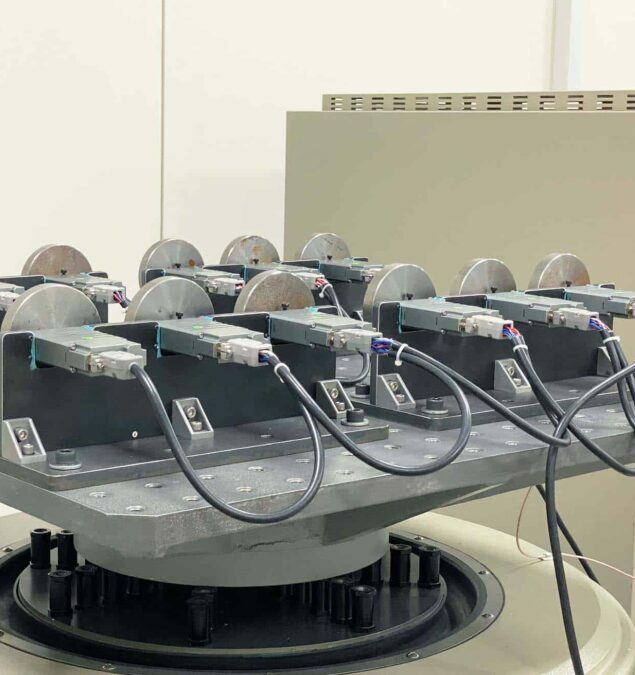

Our aerospace actuators are equipped with advanced over-temperature protection to prevent overloading, and also feature feedback mechanisms for position, temperature, current, voltage, speed and torque. All units undergo a thorough test regime to MIL-STD-810G environmental and MIL-STD-461G EMI military standards.

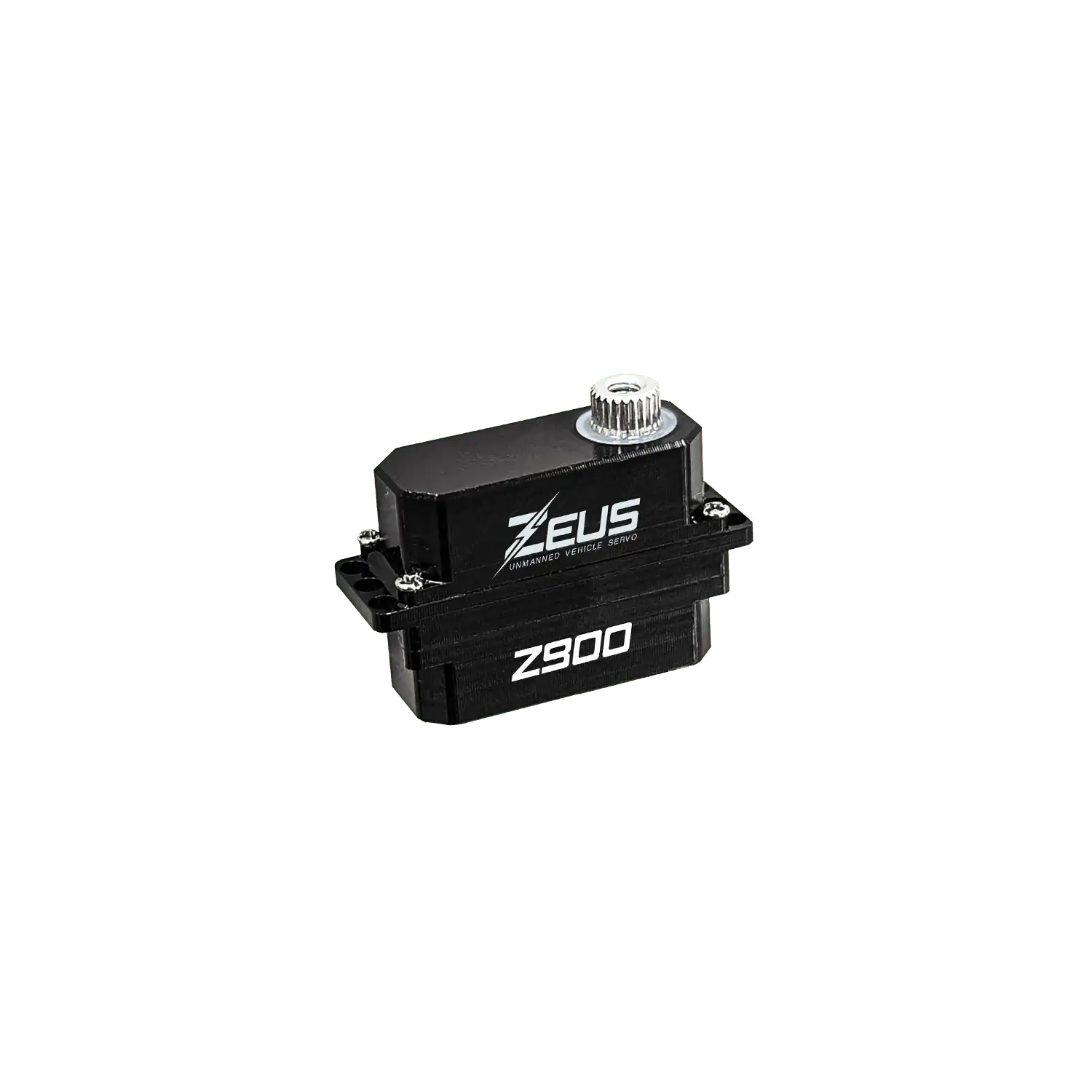

Z900 Series (9mm)
Lightweight servo motor for small drones & UUVs
Weighing in at just 9 grams, the Z900 Series servos are ideal for ailerons and flight control surfaces of small UAVs. The compact and waterproof actuators are also highly suited to small unmanned and autonomous underwater marine vehicles.

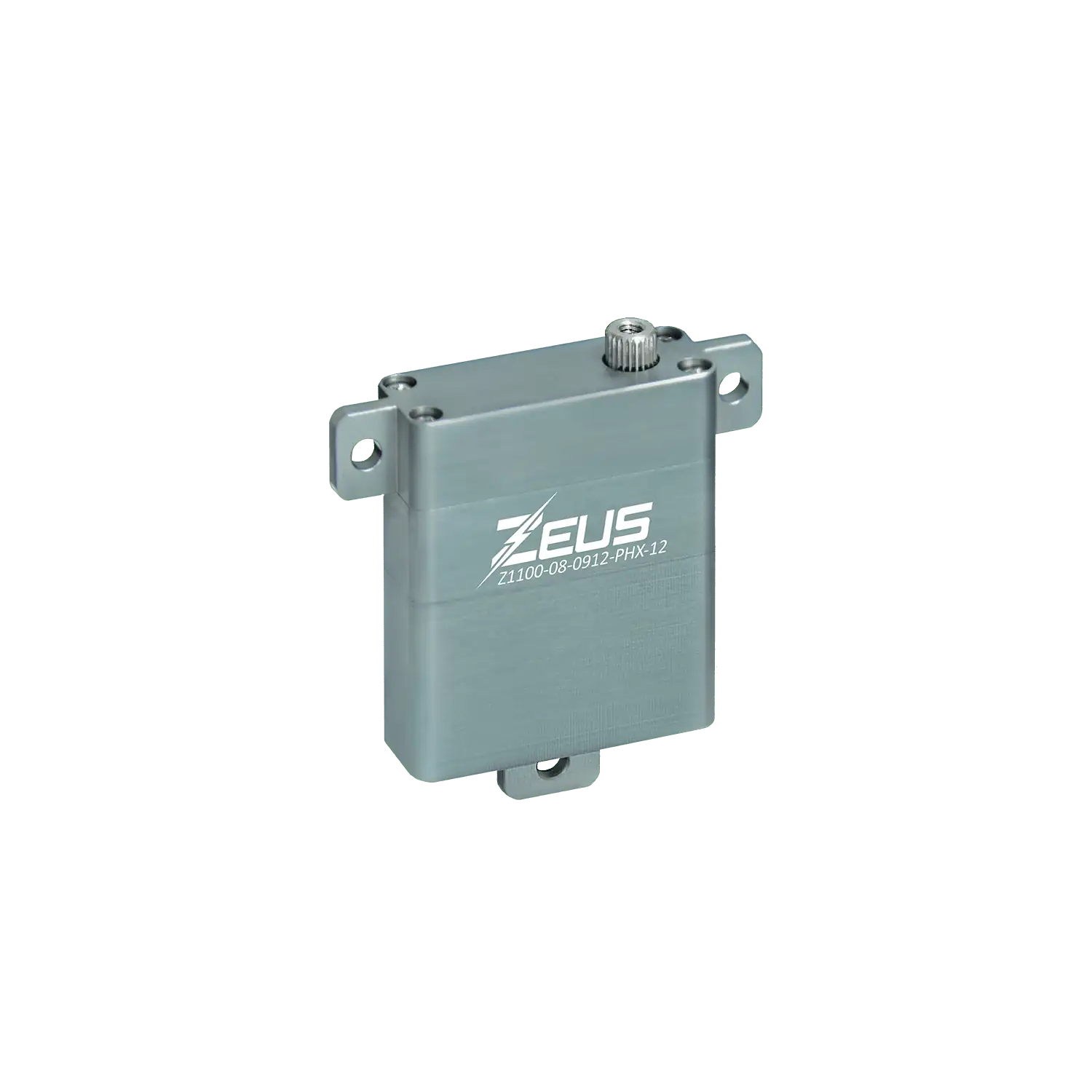

Z1100 Series (10mm)
High-speed actuator for glider UAVs
The Z1100 Series features a lightweight and thin construction for space-constrained vehicles. With high torque of up to 10kg-cm, it is ideal for high-speed unmanned gliders. This servo was selected for a record-breaking remote-control aircraft that reached speeds of 870km/hr.
Z1500 Series (15mm)
Heavy duty servo actuator for industrial applications
The high-reliability Z1500 Series has been designed for ultra-long lifespan applications, surviving operational tests of over 2000 hours with a rated load of 3kg-cm. It is the ideal heavy-duty actuator industrial robotics and drone applications.

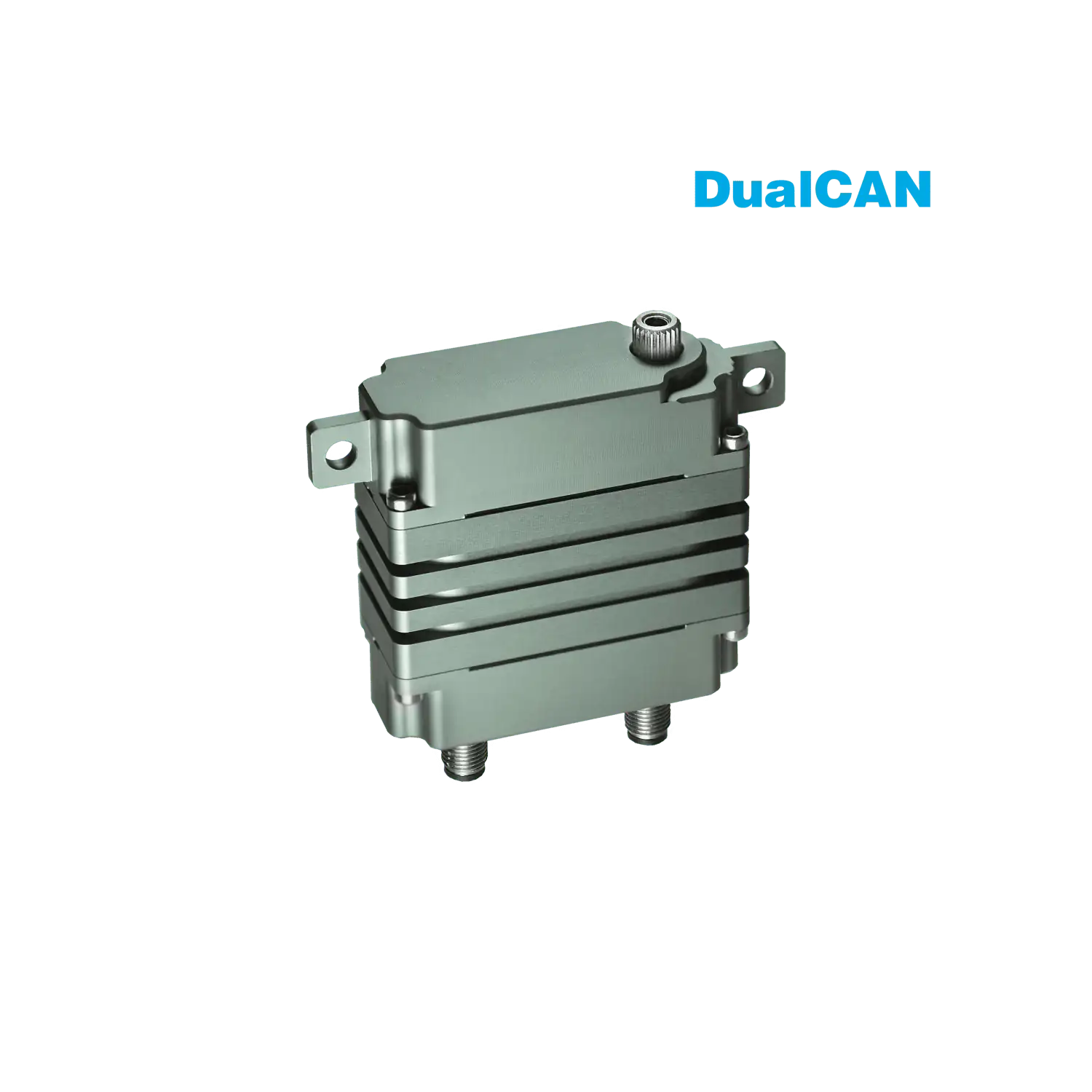

Z1538 Series (15mm)
Ultra-long lifespan servo motor with DualCAN
The Z1538 Series is ideal for hard-wearing applications, tested for over 2000 hours with a load of 3kg-cm. The miniature servo actuator incorporates a dual CAN bus communications interface, enabling flexible switching of command and feedback channels.

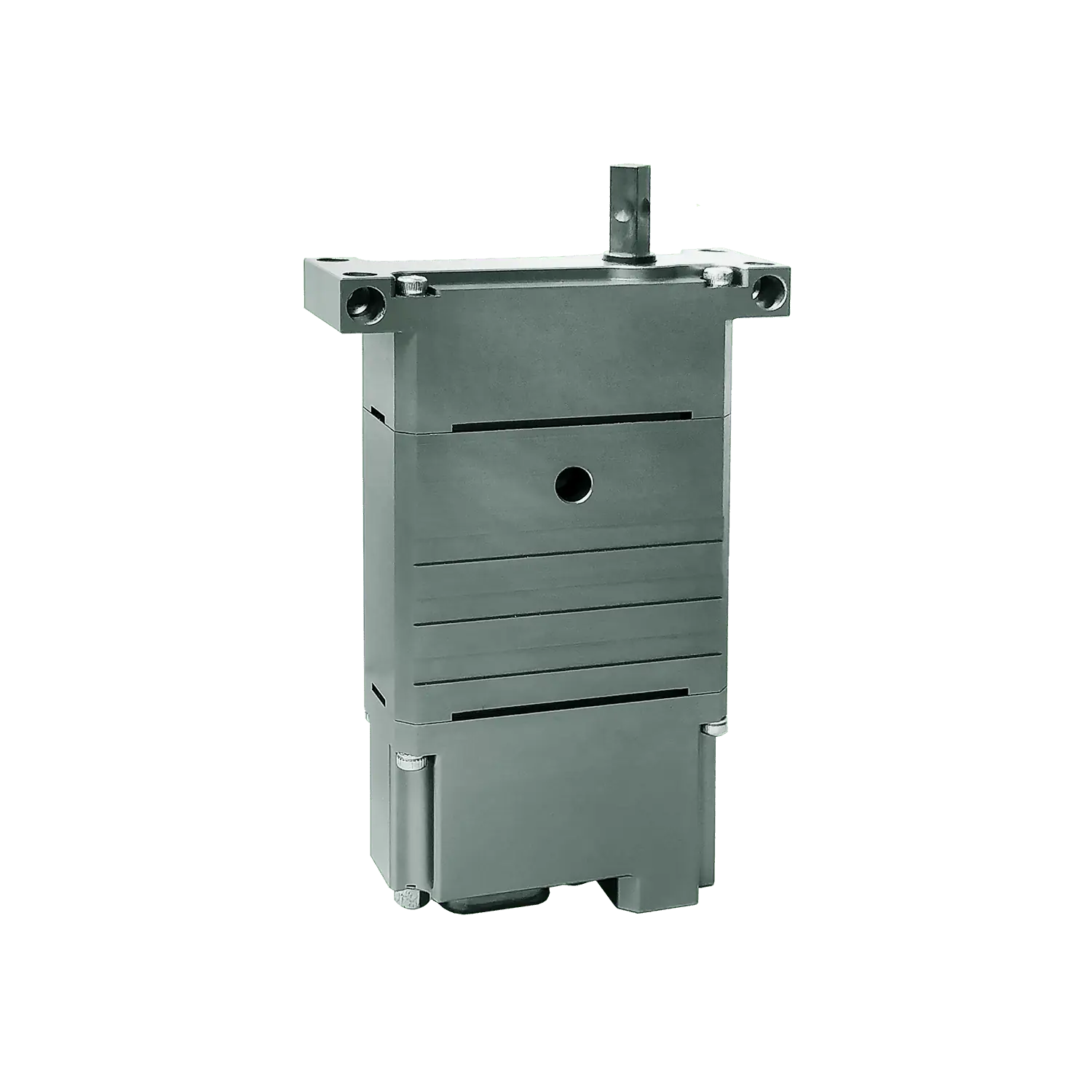

Z2300 Series (23mm)
Rugged aircraft flight control actuator
The Z2300 Series features a rugged design with a hardened gearbox and high-performance multi-pole brushless motors. It is ideal for applications requiring load application over extended periods of time, such as in long-endurance fixed-wing drones.

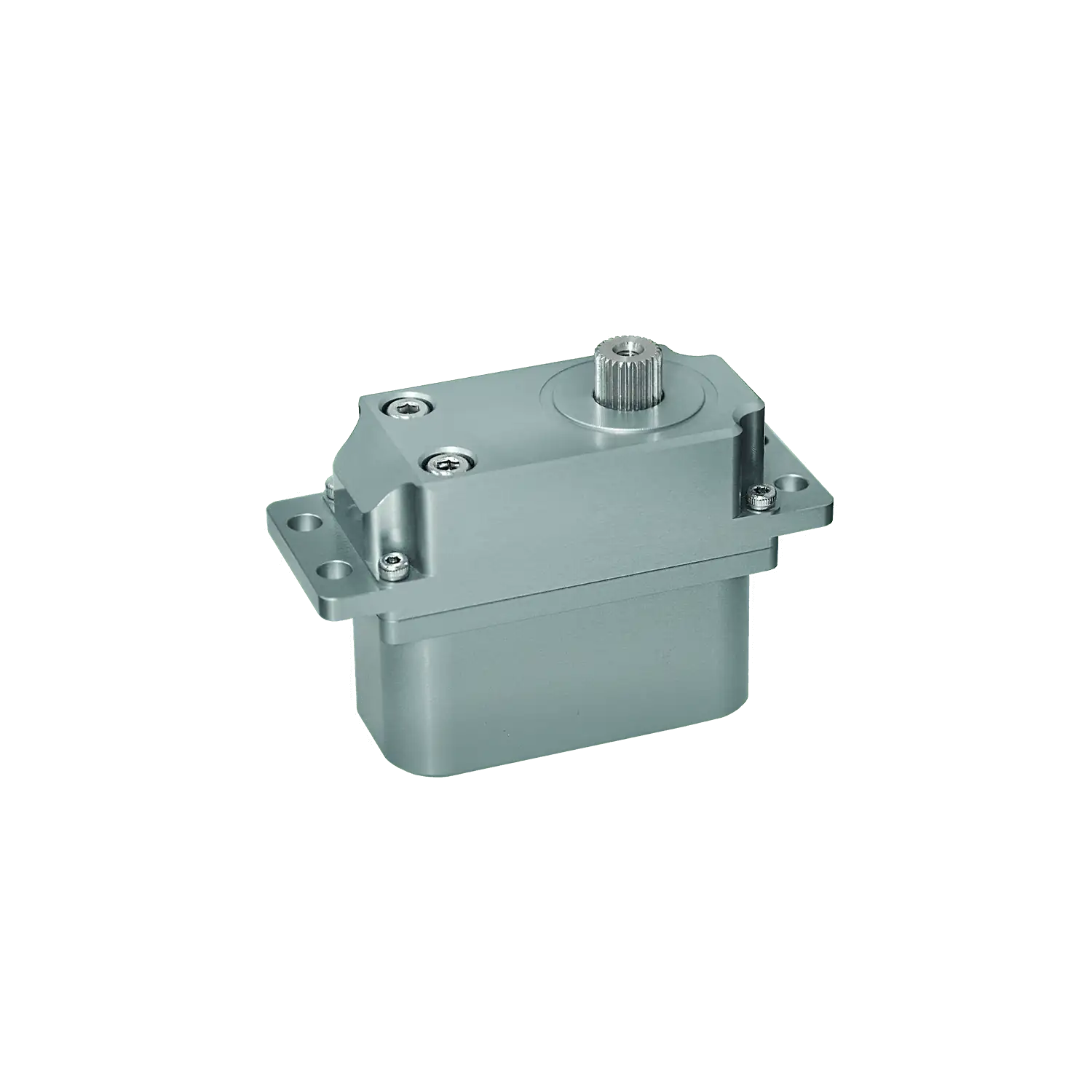

P500 Series (25mm)
High-speed servo motor for unmanned helicopters
The P500 Series of servo actuators delivers fast reaction times and instantaneous high levels of torque. It is ideal for applications such as unmanned helicopters that require rapid response for high-speed steering.

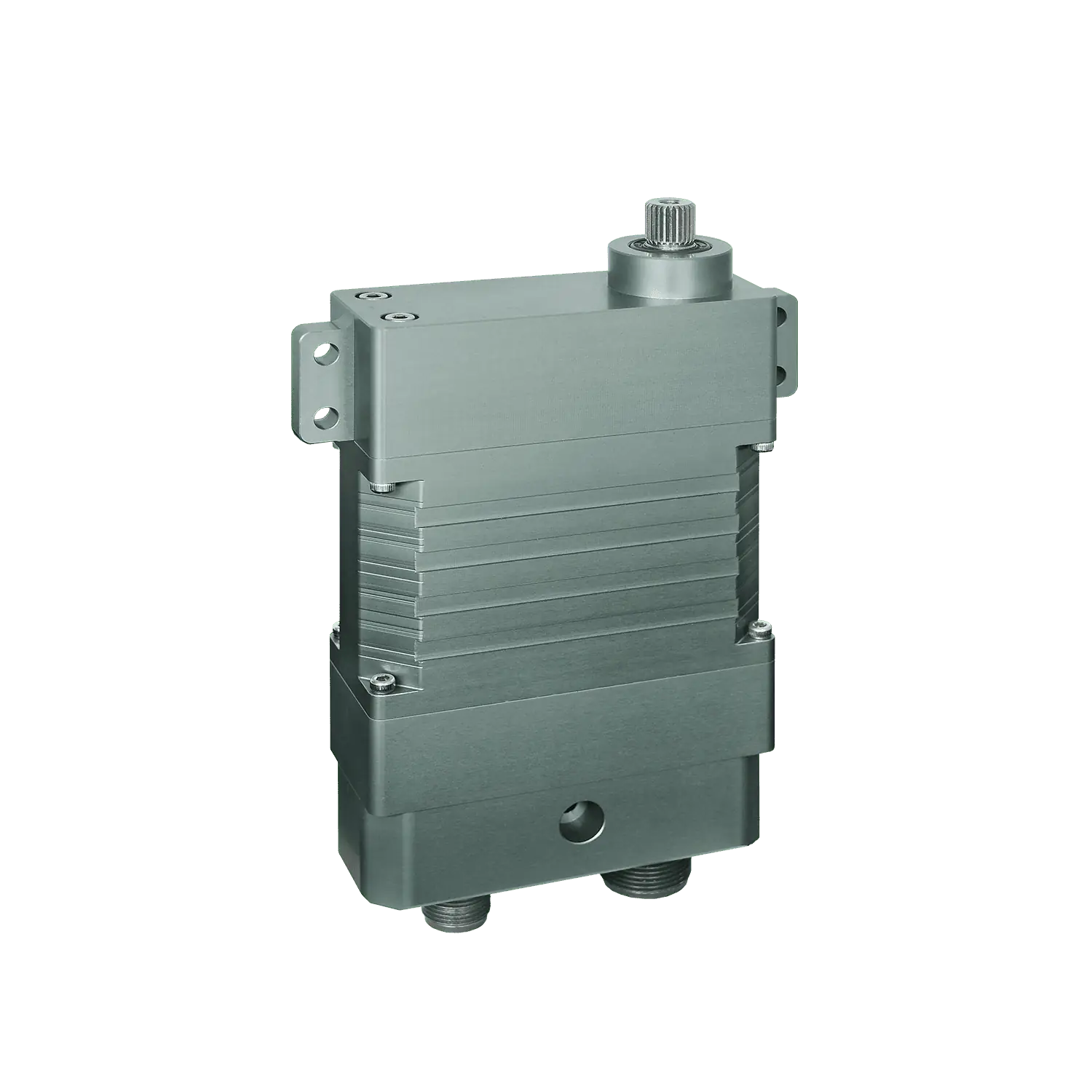

P1000 Series (38mm)
UAV & aerospace actuator with “black box” recording
The P1000 Series incorporates sophisticated self-protection mechanisms that prevent damage to the internal workings of the actuator, ensuring maximum safety and reliability for UAVs in flight. The servos also feature patented “black box” technology that records voltage, current, temperature and the state of the integrated three-axis gyroscope, enabling more detailed investigations in the event of an accident.
Z4200 Series (42mm)
High-torque servo actuator for landing gears and throttles
The Z4200 Series provides high torque output in a robust impact-resistant housing. It is designed for low-speed yet high-power applications such as UAV landing gears and throttles.
Comparison Table:
Z900 | Z1100 | Z1500 | Z1538 | Z2300 | P500 | P1000 | Z4200 | |
Size | 9mm | 11mm | 15mm | 15mm | 23mm | 25mm | 38mm | 42mm |
Torque | 0.3 Nm | 0.9 Nm | 2 Nm | 2 Nm | 10 Nm | 7 Nm | 70 Nm | 30 Nm |
Input Voltage | 3.7-6 VDC | 4.5-8.4 VDC | 7-15 VDC | 7-15 VDC | 16-30 VDC | 9-15 VDC | 16-30 VDC | 16-30 VDC |
