MAXL-CL-3030 is a high-performance accelerometer based on a unique MEMS device and ASIC designed for tactical and inertial navigation applications, providing a digital acceleration output.
The Accelerometer is available in several performance grades offering excellent measurement accuracy for a large range of inertial navigation and vibration sensing applications.
With specifications such as one-year bias repeatability of 0.5 mg, one-year scale factor repeatability of 400 ppm, and VRE below 25 µg/ g2 rms, this family of accelerometers provides highly advanced performance.

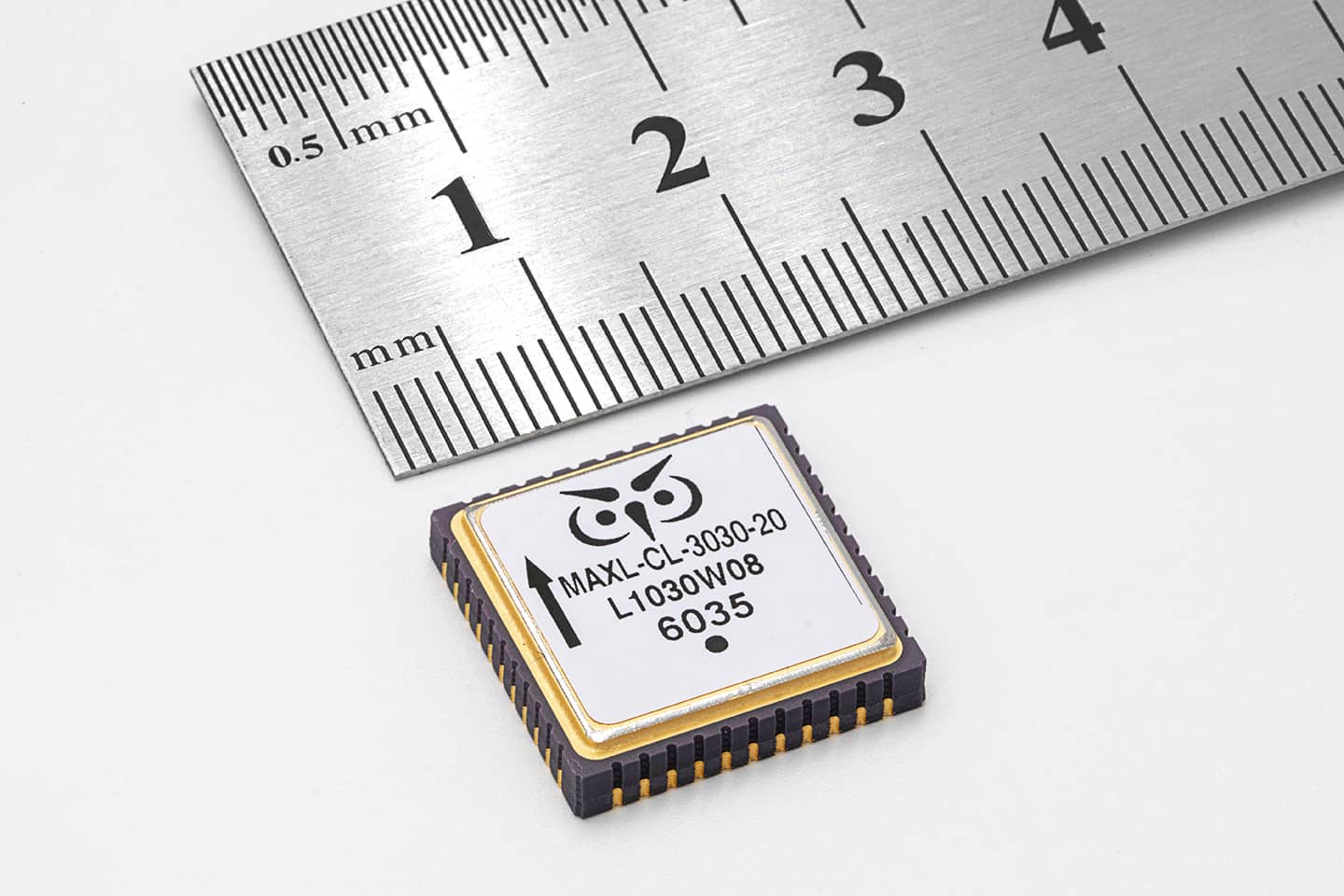

The MAXL-CL-3030 features an input range of ± 30 g and operates from a single power supply voltage of 5 V with < 50 mA current consumption. The sensor’s system is composed of an LCC44 hermetically sealed package mounted on an interface board for customer evaluation and prototype testing. According to a specified ICD, Physical Logic offers its customers assembly and testing of accelerometers on customer integration boards.Specification
|Input Range||±30 g||±30 g||±30 g||±30 g|
|Bandwidth||>300 Hz||>300 Hz||>300 Hz||>300 Hz|
|Noise Density||<50 µg/√Hz||<45 µg/√Hz||<45 µg/√Hz||<45 µg/√Hz|
|VRE (20-2000 Hz)||<30 µg/g2 rms||<25 µg/g2 rms||<25 µg/g2 rms||<25 µg/g2 rms|
|SF Long-Term Repeatability||<800 ppm||<600 ppm||<400 ppm||<400 ppm|
|Bias Long-Term Repeatability||<4000 µg||<2000 µg||<1200 µg||<500 µg|
