2210 Low Cost 1-Axis MEMS DC Industrial Accelerometer

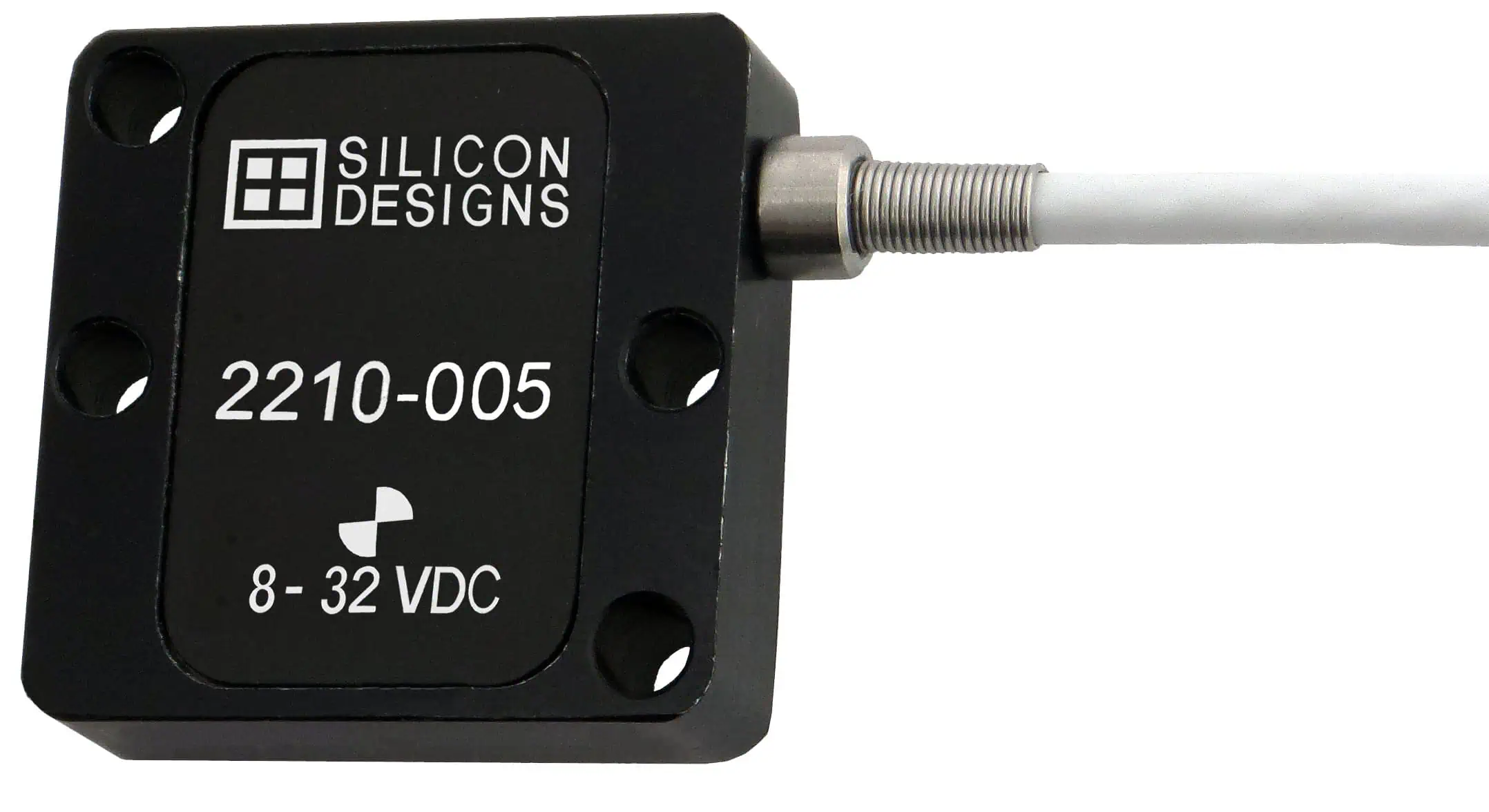

The 2210 is a low-cost single-axis variable capacitive MEMS accelerometer suitable for a wide variety of drone and robotics applications requiring high reliability, low noise and long-term stability. The industrial-grade sensor is packaged in a traditional 1 -inch square anodized aluminium housing, with an integrated 3-foot cable.
The 2210's simple 4-wire connection provides easy DAQ integration in single-ended and differential modes. Onboard voltage regulation and an internal voltage reference eliminate the need for precision power supplies while integrated amplifiers and low impedance analog outputs support up to 2000 feet of cable.
Specifications:

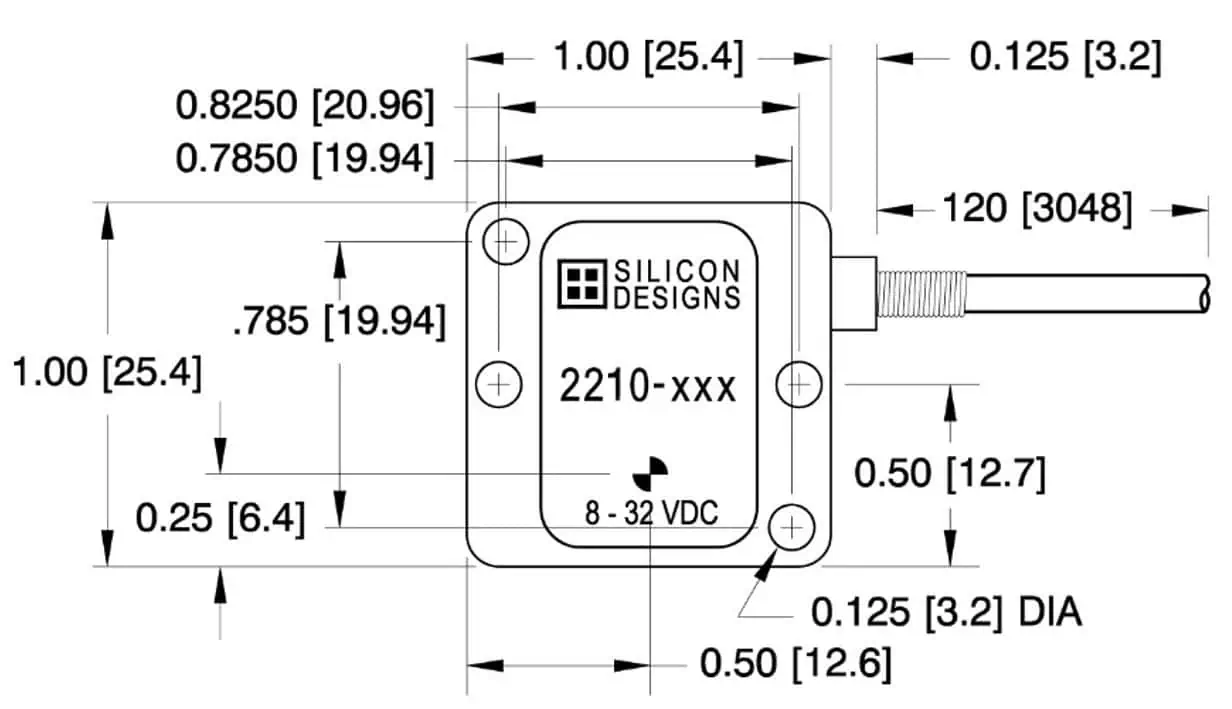

| Dimensions | 1 x 1 x 0.3” |
| Weight | 10g |
| Power | 8 – 32 VDC |
| G-Range Options | ±2, 5, 10, 25, 50, 100, 200, 400g |
| Bias Calibration Error (%) | 0.25 typ., 0.6 max |
| Bias Calibration Error (mV) | 25 typ., 60 max |
| Bias Temperature Shift | -200 to +200 PPM/oC |
| Scale Factor Calibration Error (%) | 0.5 typ., 1.25 max |
| Scale Factor Temperature Shift | -200 to +200 PPM/oC |
| Analog Output | ±4 VDC Differential / +0.5 to +4.5 VDC Single Ended |
