MS8200 Oceanographic Multibeam Echo Sounder 200kHz Multibeam Echo Sounder for up to 500m Depth Mapping and Survey

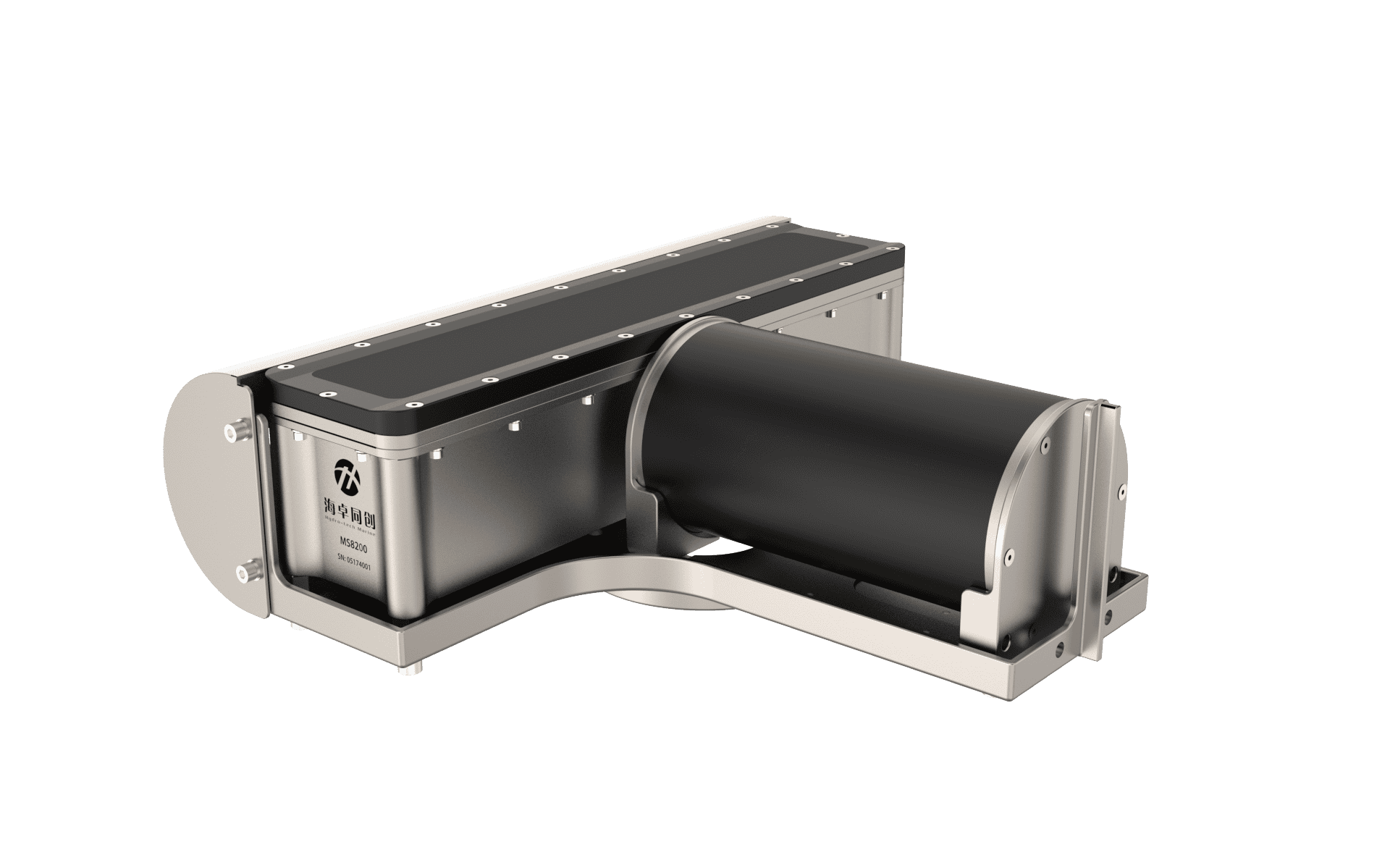

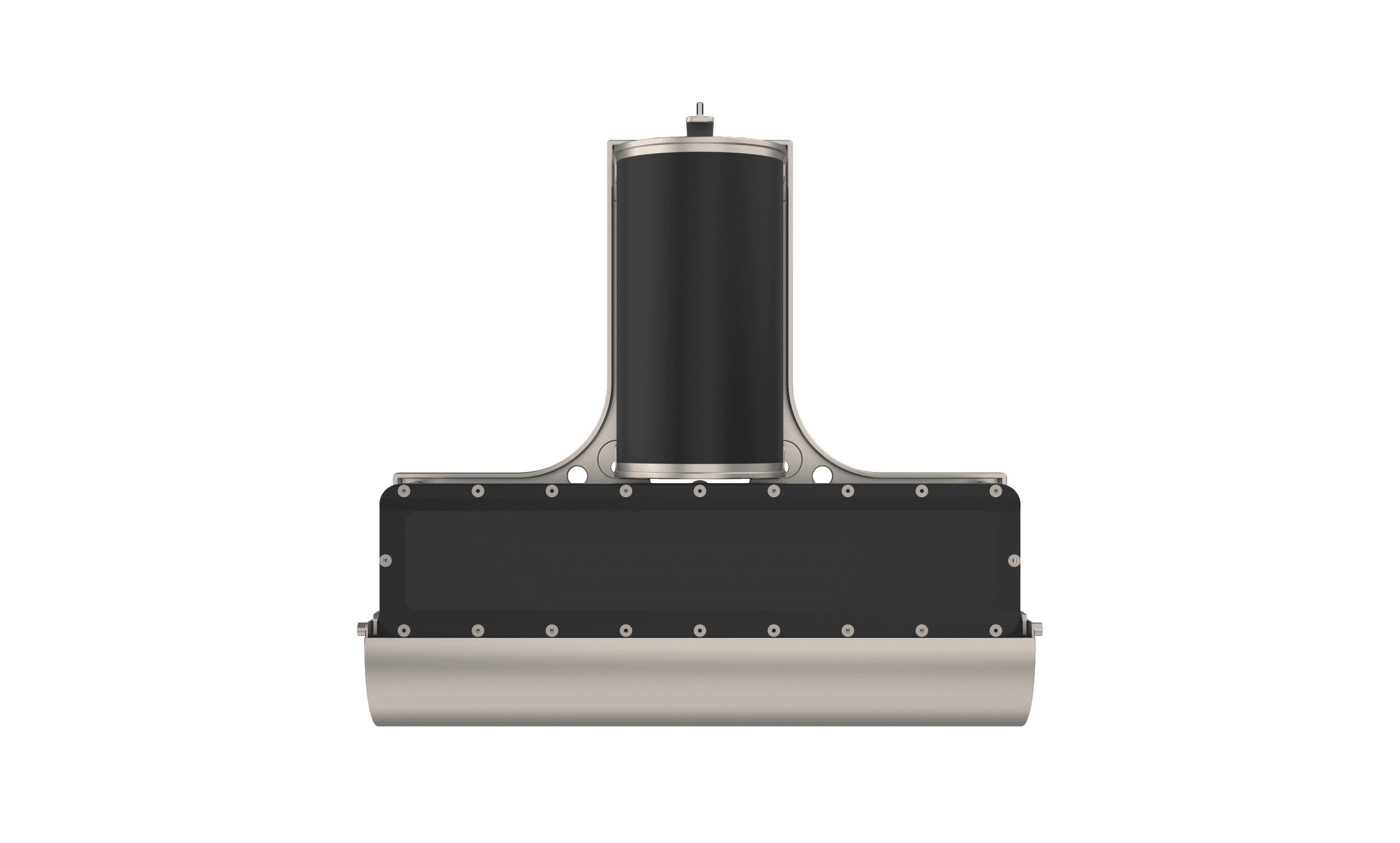

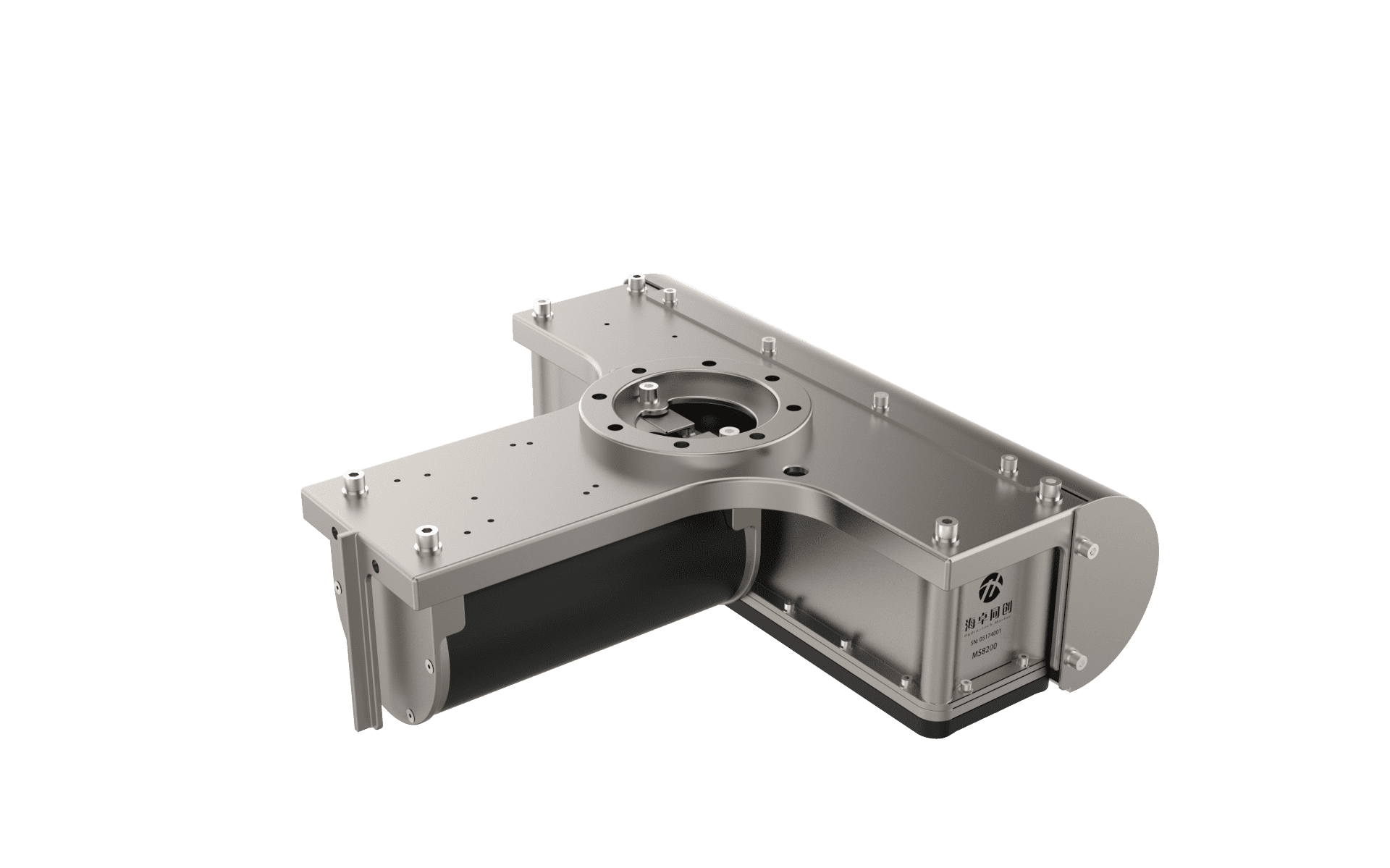

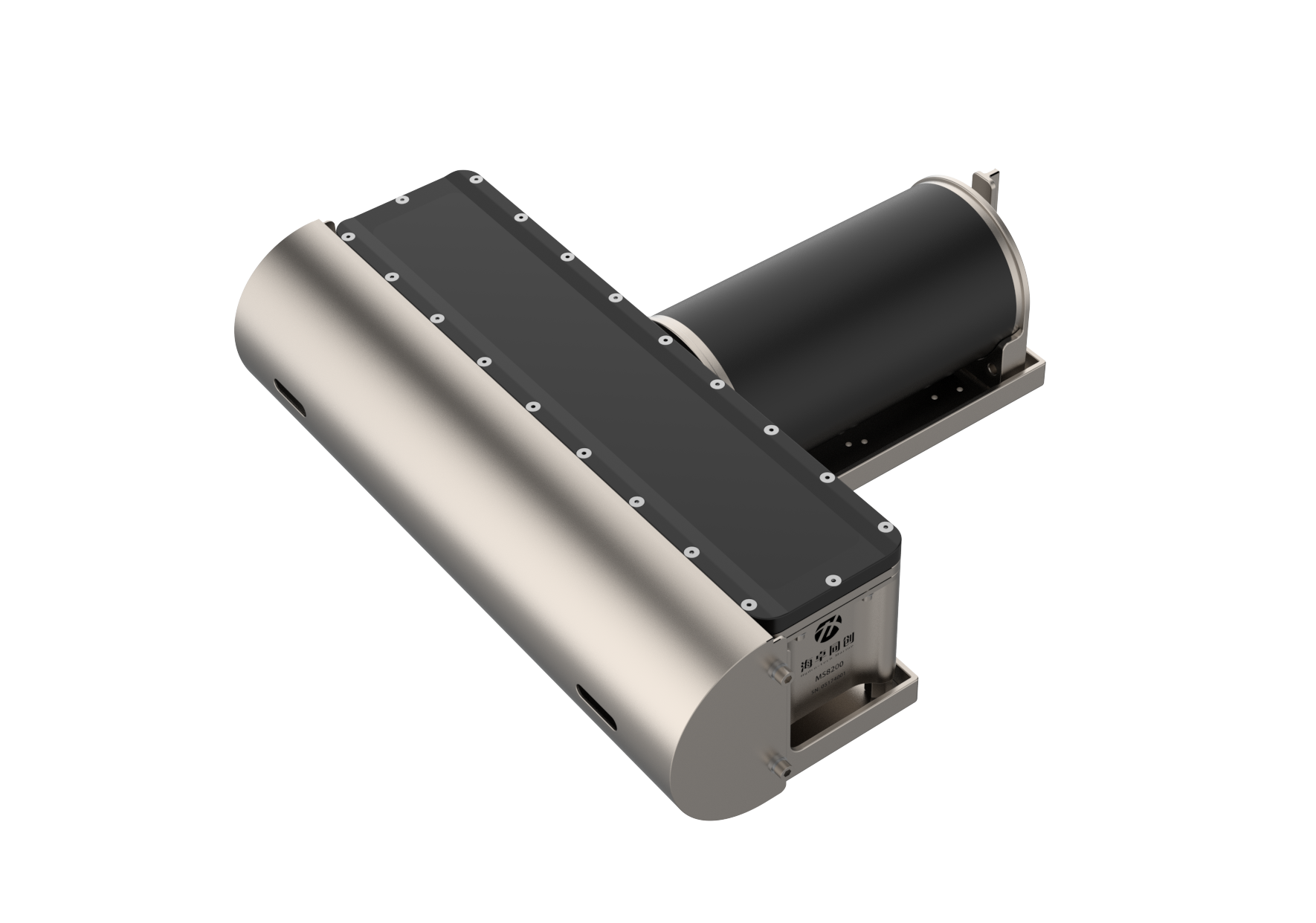

MS8200 Oceanographic Multibeam Echo Sounder

200kHz Multibeam Echo Sounder for up to 500m Depth Mapping and Survey

Visit Website Contact
Saved
Save
MS8200 Oceanographic Multibeam Echo Sounder

MS8200 is a new generation of multibeam echosounder that is specially designed for professional oceanographic mapping and deep channel surveying. The system is developed by our R&D team based on brand new platform which after years of accumulating sounding technology experiences and studying the advantage & shortage of various model product used in different environments. MS8200 does not only deliver reliable performance, but also with the most advanced technologies. It can work well even in harsh environment, this is why many customers trust MS8200 echosounder won numerous compliments. MS8200 deserves it!

Specifications:

DImension 500mm x 457mm x 147mm
Weight 22.6kg (In the air)
Power Supply DC 10V - 32V / AC 110V - 240V
Frequency 200kHz
No. of Beams 512
Depth Range 0.5 ~ 500m(Customizable)
Depth Accuracy 0.75cm
Swath Coverage 160°
