Forward Looking Sonar (FLS) is a category of underwater acoustic imaging technology designed to provide real-time visual data of the environment ahead of a marine vessel or platform.
Especially crucial for unmanned underwater vehicles such as ROVs and AUVs, FLS solutions help mitigate operational risks by detecting obstacles, mapping underwater terrain, and enabling precise navigation in cluttered or low-visibility conditions.
Jump to Section:
Unmanned marine vehicles rely on technologies like forward looking sonar to replace human vision and compensate for limited onboard sensing. These sonar systems project acoustic pulses forward and interpret the returned echoes to create two-dimensional (2D) or three-dimensional (3D) imagery of the surrounding underwater environment. This imaging capability is indispensable for ensuring safe maneuverability and mission success in various operational scenarios, including deep-sea exploration, structural inspection, and subsea construction.
ROVs commonly use forward facing sonar to support piloting in confined spaces or near critical infrastructure, while AUVs benefit from long range detection for autonomous navigation in open waters. In both cases, real-time sonar video feedback enhances situational awareness and decision-making, especially when GPS is unavailable and visibility is reduced.

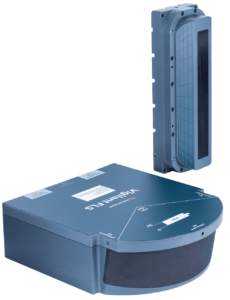

Vigilant FLS® Forward Looking Sonar by Wavefront Systems

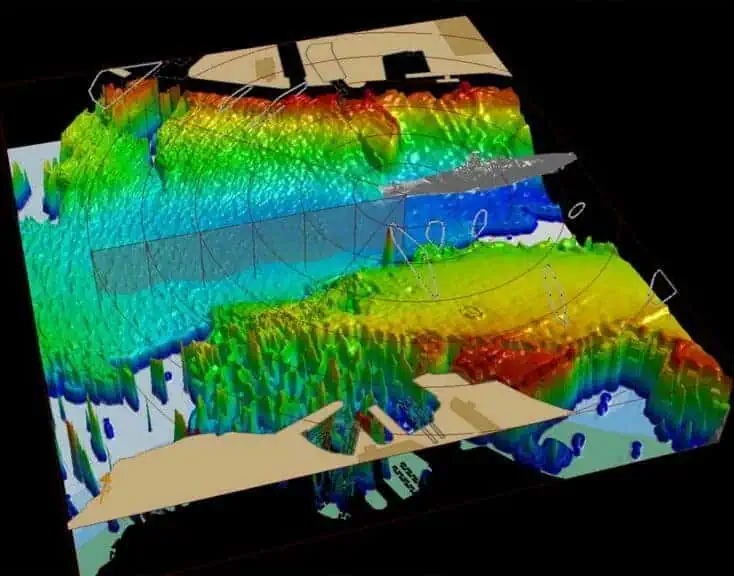

Forward looking sonar can ensure safe navigation for unmanned underwater vehicles by detecting potential obstacles in real time. Whether the platform is a remotely operated vehicle (ROV) navigating through underwater infrastructure or an autonomous underwater vehicle (AUV) transiting a complex seafloor environment, FLS provides immediate feedback that enables evasive maneuvers. These systems identify hazards such as rock outcroppings, shipwrecks, debris fields, and subsea cables—features that may not appear on nautical charts or be visible to optical systems. By integrating FLS into their onboard guidance systems, unmanned platforms can execute collision avoidance protocols with higher precision and autonomy.
Forward looking sonar is used in underwater inspection tasks where visual tools may be ineffective due to low light, turbidity, or constrained spaces. ROV inspection missions around pipelines, subsea manifolds, oil platforms, or ship hulls benefit from the high-resolution acoustic imaging FLS provides. These systems allow operators to remotely assess structural integrity, identify biofouling, detect leaks, and guide precise positioning for maintenance interventions. In confined or hazardous environments, forward looking sonar ensures safety by helping avoid unintentional contact with fragile or valuable subsea infrastructure.
Forward looking sonar, especially in its multibeam configuration, serves as a powerful tool for underwater mapping and hydrographic surveying. AUVs equipped with forward looking multibeam sonar can generate real-time topographical models of the seafloor, inspect sediment movement, or monitor underwater erosion. These systems are invaluable in research, offshore wind farm planning, environmental assessments, and marine archaeology. With the ability to survey wide areas quickly and with high fidelity, forward looking sonar improves the efficiency and safety of underwater exploration and mapping.
In time-sensitive missions such as search and rescue or recovery of sunken assets, forward looking sonar offers a reliable solution for locating objects underwater. The long-range detection capabilities of FLS enable users to rapidly scan broad areas and identify anomalies that may indicate the presence of submerged vehicles, containers, or human remains. Used by coast guards, naval forces, and recovery contractors, FLS provides real-time visual confirmation in situations where deploying divers or relying solely on visual instruments would be inefficient or dangerous.
Beyond basic detection, advanced forward looking sonar systems are capable of tracking the movement of underwater objects and assisting in classification. This capability is critical in defense and security applications, where distinguishing between marine life, debris, and potential threats such as intruding vehicles is vital. Pattern recognition algorithms, when paired with high-resolution FLS imaging, support real-time threat identification and tracking, enhancing the situational awareness of autonomous and semi-autonomous platforms.
Unmanned underwater vehicles often operate in environments where GPS is unavailable and visibility is compromised, such as shipwreck interiors, harbors, or beneath ice. Forward looking navigation sonar helps these platforms navigate safely by providing detailed acoustic images of the surrounding space. In conjunction with inertial navigation systems and SLAM (Simultaneous Localization and Mapping) techniques, FLS contributes to precise positioning and real-time path planning, making it indispensable in tight or unfamiliar environments.
Autonomous underwater missions require constant vigilance to avoid dynamic and static hazards. Forward looking sonar enables AUVs to autonomously assess their path and make course corrections without human intervention. These capabilities are critical during long-range or high-risk missions, where environmental conditions can change rapidly. FLS provides a forward-looking sensor layer that enhances the reliability and autonomy of unmanned navigation systems.
Forward looking sonar is often employed during the docking and retrieval phases of ROV and AUV missions, especially when precision is required. FLS systems can guide vehicles into docking stations or through narrow entry points with centimeter-level accuracy, even in poor visibility conditions. This application is particularly relevant in autonomous mission cycles, where hands-free recovery is essential for multi-sortie operations or persistent underwater surveillance.
Forward looking sonar systems are available in a variety of configurations to suit different mission requirements. Traditional 2D forward looking sonar offers planar imaging suitable for basic navigation, while 3D forward looking sonar systems provide volumetric reconstructions for enhanced interpretation of complex environments.
Multibeam configurations offer a wider field of view and higher resolution, making them ideal for mapping and classification tasks. Forward looking navigation sonar, often integrated into autonomous control systems, combines imaging and path planning capabilities for fully automated operation.
Many systems include modular forward looking sonar transducers that can be adapted to different vehicle sizes and power budgets. Integration options are available for both tethered and untethered vehicles, with real-time data transmission supported in both cases.
Forward looking sonar technologies are also used in other commercial maritime applications. Cruise ships and commercial vessels use forward looking depth sonar and imaging sonar to navigate safely through narrow passages, shallow harbors, or poorly charted areas. Commercial forward looking sonar enhances port operations, while research vessels use it for exploratory missions where visual observation is not feasible.
These systems are particularly beneficial in icy or silt-laden waters, where traditional vision systems are impaired. With the growth of autonomous shipping, forward looking sonar is also becoming a cornerstone of future vessel navigation systems.
Forward looking sonar also plays a significant role in commercial fishing and sustainable fisheries management. By projecting acoustic beams ahead of a vessel, FLS systems help operators detect fish schools in real time and monitor their movements with greater accuracy than traditional downward-facing sonar. This enables more efficient harvesting while minimizing environmental disruption and bycatch. In addition to supporting commercial fishing fleets, forward looking sonar contributes to marine biology research by facilitating non-invasive population surveys and behavioral studies. With its ability to deliver detailed acoustic images in turbid or deep waters, FLS is a vital tool in the ongoing effort to balance commercial yield with ecosystem preservation.
Forward looking sonar provides a vital sensory advantage for unmanned and commercial marine operations alike. From enhancing situational awareness for ROVs and AUVs, to improving obstacle avoidance, navigation, and inspection tasks, FLS technology is indispensable in both automated and human-monitored missions. With ongoing advances in resolution, range, and 3D visualization, forward looking sonar systems continue to expand their role across a variety of marine sectors, ensuring safer, more efficient underwater operations.
