Vigilant is a Forward Looking Sonar (FLS) designed to enhance situational awareness and obstacle avoidance for USVs and UUVs operating in uncharted and hazard-prone waters. The underwater sonar sensor provides timely alerts for threats below the surface, allowing vessels to take clear evasive action.
Delivering unrivalled resolution and detail, Vigilant can be retrofitted to almost any existing vessel, significantly reducing the risk of groundings and underwater collisions with debris, ice, marine mammals and other hazards.

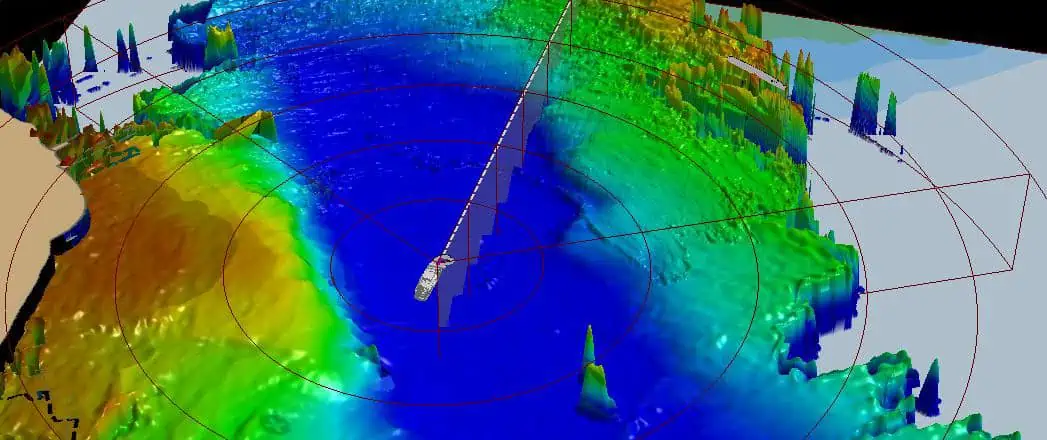

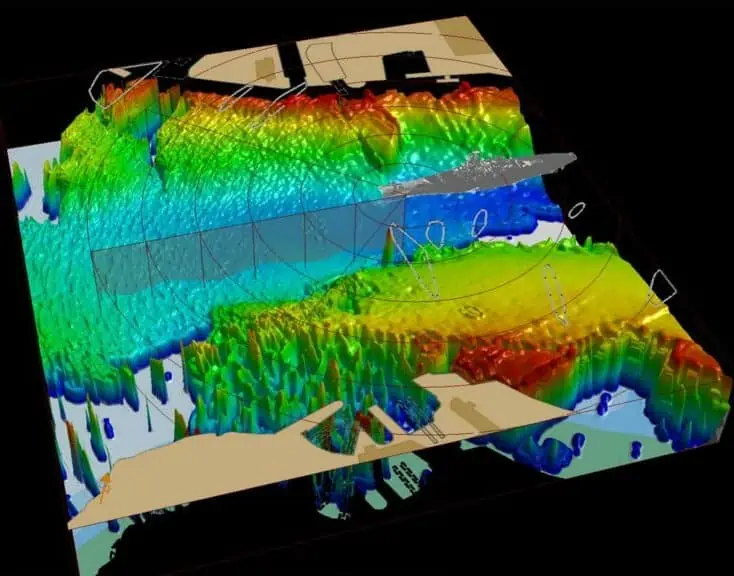

Real-time 3D imaging and collision warningVigilant has 2 principle modes of operation – 3D and sonar mode. 3D mode uses bathymetry and colour-coded depth imagery to create a 3D terrain map of the seabed and water column ahead out to 600 m and down to 100 m. Sonar mode extracts long-range positional data, providing customizable automated alarms to warn of objects up to 1.5 km ahead with a 120-degree field of view.
The system includes a historical mapping capability that can be used to build a comprehensive picture of the underwater environment surrounding the vessel, providing greater situational awareness. It can also be used with Electronic Navigational Chart (ENC) overlays.
Specifications:
| Vigilant 1500 | Vigilant 1000 | Vigilant 600 | |
| Range/Field of View | 75 – 600 m x 120° 2D/3D Depth Mode 75 – 1500 m x 120° Sonar Mode |
75 – 600 m x 120° 2D/3D Depth Mode 75 – 1000 m x 120° Sonar Mode |
75 – 600 m x 120° 2D/3D Depth Mode 75 – 600 m x 120° Sonar Mode |
| Operational Speed | Up to 25 knots | Up to 25 knots | Up to 25 knots |
| Operating Frequency | 70 kHz | 70 kHz | 120 kHz |
| Bottom Mapping Ratio | Up to 20 x water depth | Up to 12 x water depth | Up to 20 x water depth |
| Maximum Depth Detection | 100 m | 100 m | 100 m |
| Roll/Pitch Stabilisation | +/- 20° | +/- 20° | +/- 20° |
| Angular Accuracy | ~0.3° | ~0.3° | ~0.3° |
| Operating Power | <150 Watts | <150 Watts | <150 Watts |
| Operating Temperature Range | -2 to 40°C | -2 to 40°C | -2 to 40°C |

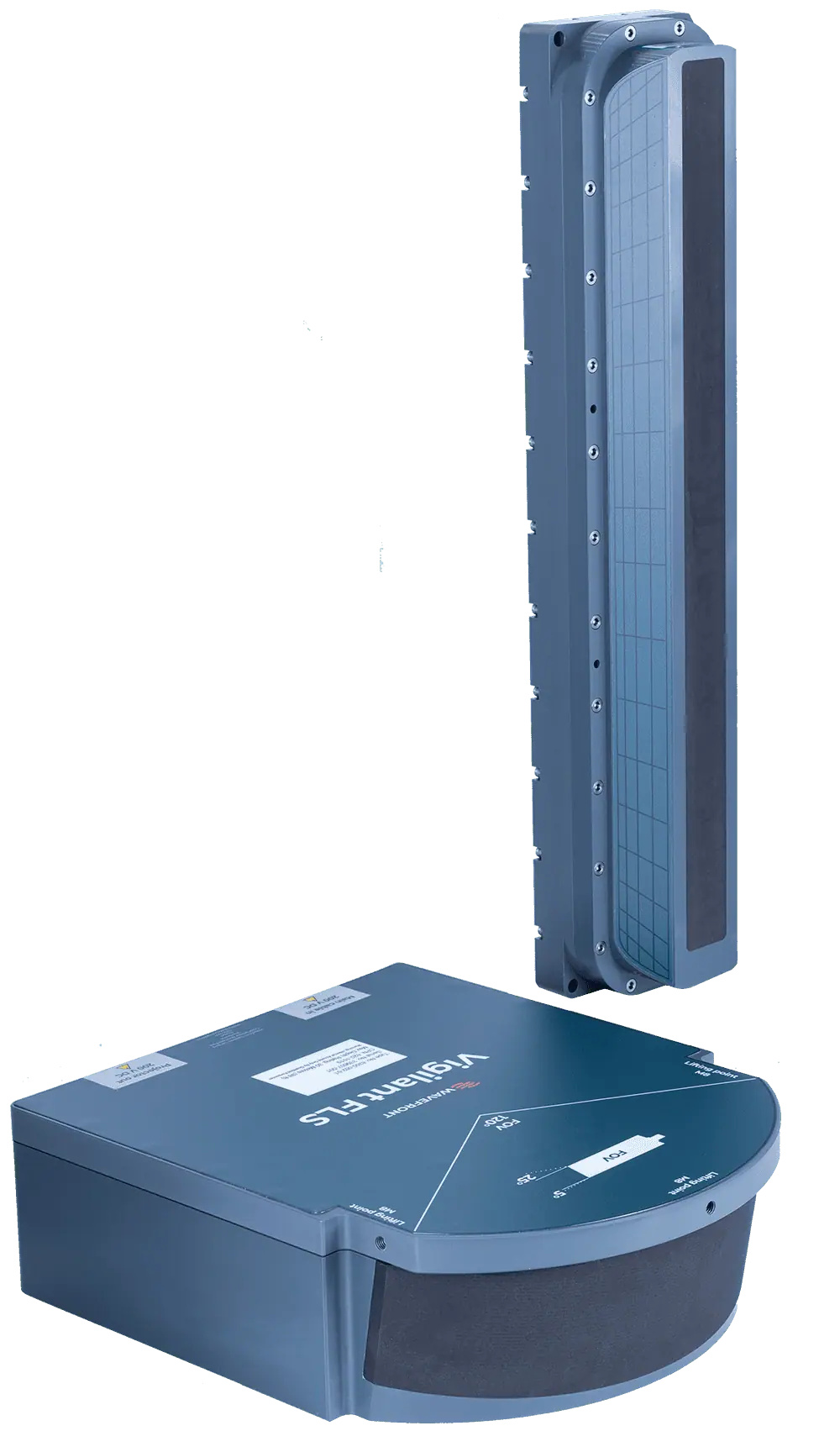

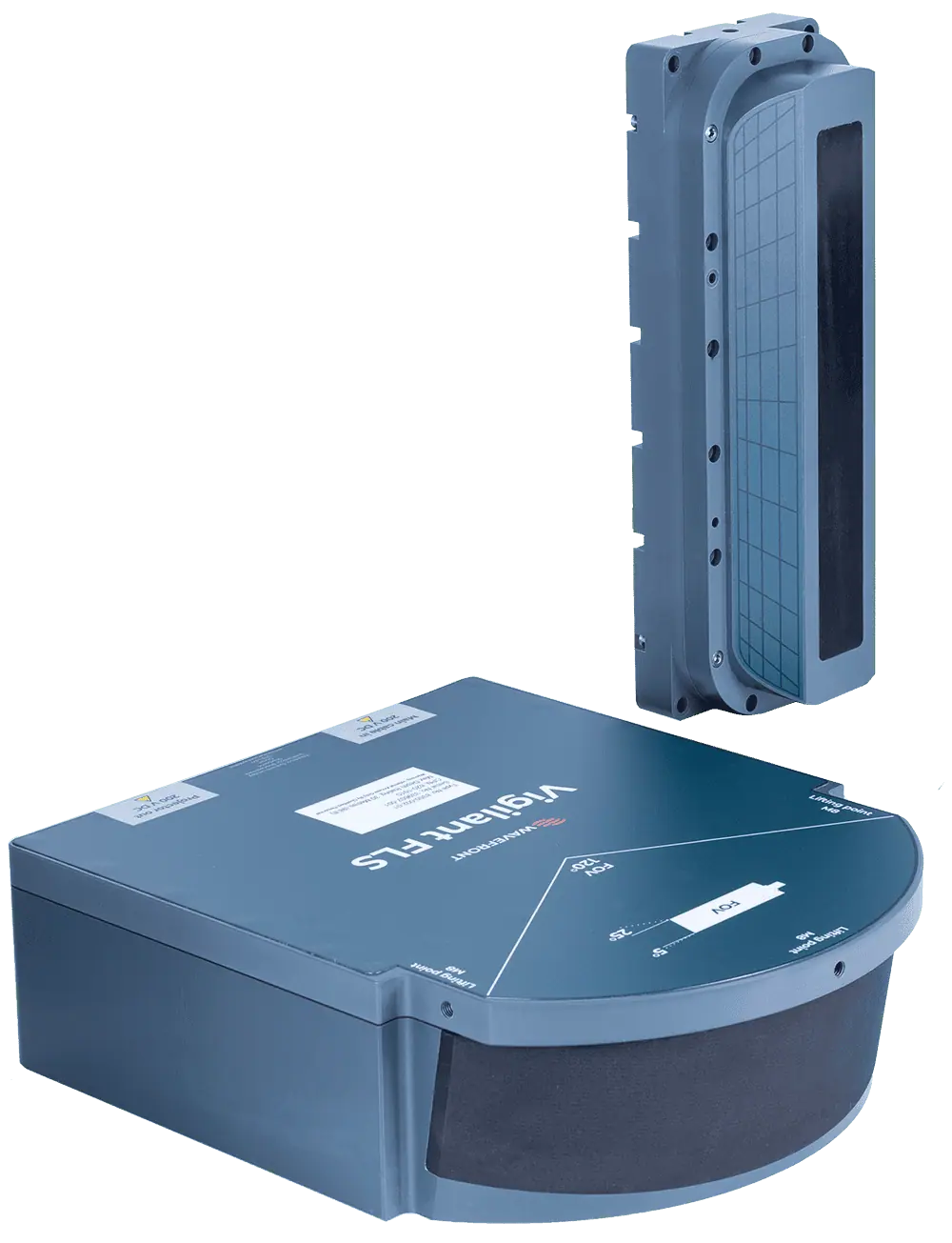

| Receiver HxWxL - Weight in Air/Water | 110 x 310 x 400.5 mm - 15.0/4.0 kg | 110 x 310 x 400.5 mm - 15.0/4.0 kg | - |
| Transmitter HxWxL - Weight in Air/Water | 577.5 x 118 x 115.6 mm - 6.0/1.4 kg | 346.5 x 118 x 115.6 mm - 3.3/0.8 kg | - |
| Combined Receiver / Tranmsmitter HxWxL - Weight in Air/Water | - | - | 50m depth rated - 300 x 270 mm dia. - 15.0 kg WIA 600m depth rated - 300 x 270 mm dia. - 20.0 kg WIA |
