Cerulean Sonar

Advanced Underwater Imaging & Positioning Solutions for Uncrewed & Autonomous Marine Vehicles

Cerulean Sonar is an innovative developer of advanced imaging and positioning solutions for ROVs (remotely operated vehicles), AUVs (autonomous underwater vehicles) and USVs (uncrewed surface vessels).

With a focus on reliability and cost-effectiveness, the company is committed to making ocean exploration more accessible and affordable, and has partnered with a range of leading ROV manufacturers and systems integrators.

Underwater Imaging Systems

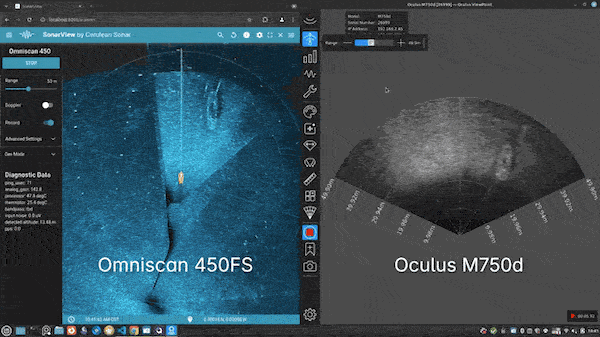

The Omniscan family provides a range of forward-looking and side-scan sonar options for ROVs and USVs. Utilizing a single narrow and tall sonar beam and working in conjunction with the tightly-integrated Cerulean SonarView software, these robust underwater systems provide real-time high-performance imaging capabilities.

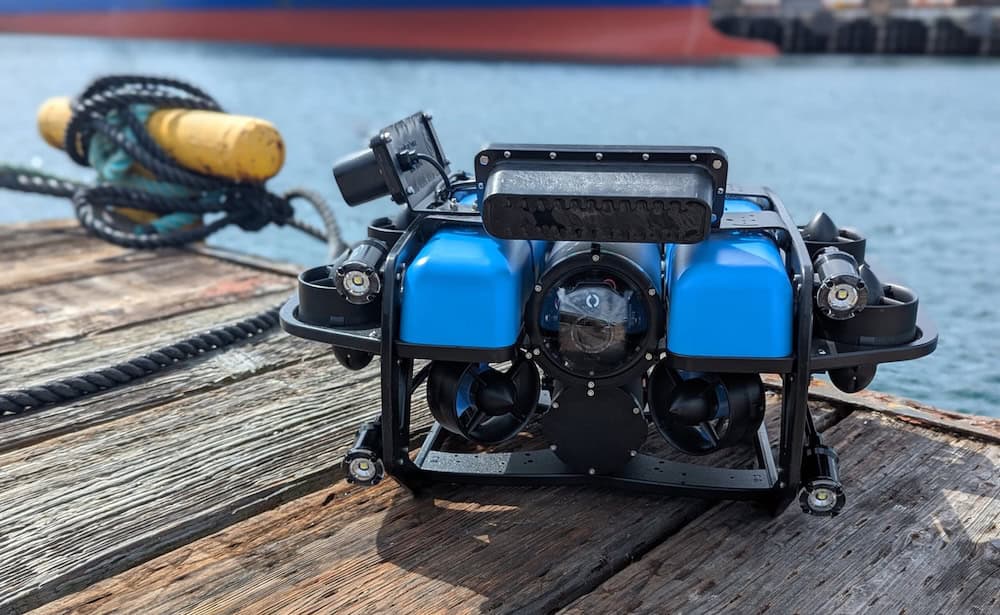

Omniscan 450fs imaging sonar on ROV

With forward-looking sonars, ROV pilots can precisely control their scans by rotating their vehicle, instantly focusing on specific areas of interest or enhancing situational awareness with a full 360-degree scan. Omniscan side-scan sonars offer superior detail to many multibeam sonars currently on the market, at a much higher level of cost-effectiveness.

Cerulean

The Omniscan 3D Upgrade Kit enables you to transform your regular Omniscan imaging sonar into a full 3D system, rendering the image with extremely high levels of accuracy and simultaneously capturing a full point cloud of the seabed as well as targets within the water column.

ROV Positioning Systems

ROV Locator

The ROV Locator (ROVL) family provides a range of cost-effective USBL positioning capabilities at depths of down to 300 meters. Three different variants are available:

Cerulean

Mk II – utilizes separate GNSS devices on topside receiver and ROV transmitter to synchronize the clocks on each unit

Cerulean

Mk III – uses duplex acoustic communication with a transceiver on the topside and a transponder on the ROV, requiring no clock synchronization

Cerulean

Mk V – utilizes a common Ethernet connection for accurate and drift-free synchronization that is independent of the speed of sound

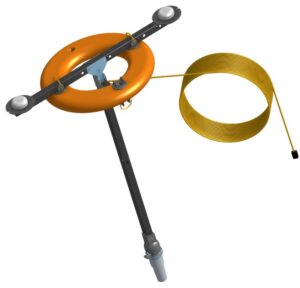

CeruleanOmnitrack USBL

Cerulean’s flagship Omnitrack subsea positioning system features a ring buoy that combines an ROV Locator USBL with dual GNSS receivers to deliver robust high-accuracy positioning of underwater targets. Wired and wireless options are available for the surface module.

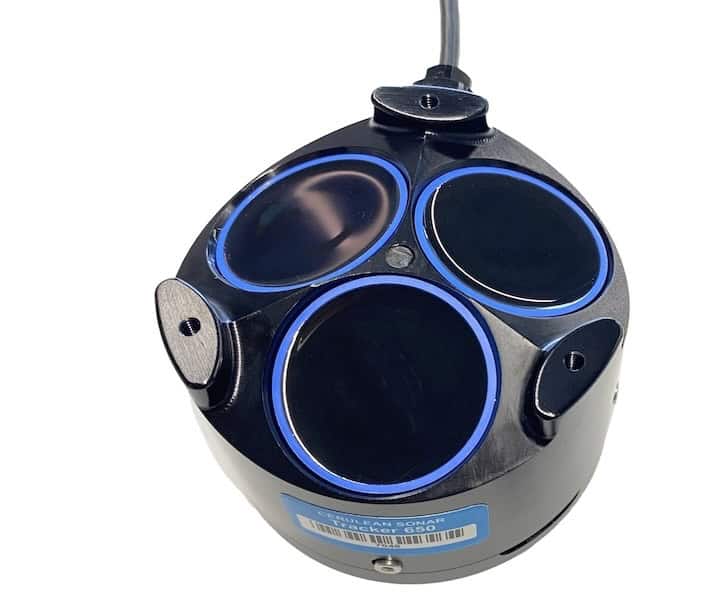

CeruleanTracker 650 DVL

The Tracker 650 Doppler Velocity Log upgrades Omnitrack and ROVL subsea positioning systems by delivering high-update rate velocity information for smooth motion tracking and accurate position holding.

Explore Cerulean Sonar’s subsea positioning systems for accurate ROV tracking

Bathymetry Solutions

Surveyor 240 MBES

Surveyor 240-16 MBESThe Surveyor 240 is a compact and cost-effective 240 kHz multibeam echosounder that is ideal for integration into smaller USV platforms. It utilizes a sophisticated angle-of-arrival estimation algorithm to achieve higher accuracy than conventional beam-forming techniques, resolving to less than a degree.

Surveyor 240 is highly suited to very shallow-water survey operations and can also undertake surveys at depths of over 50 meters.

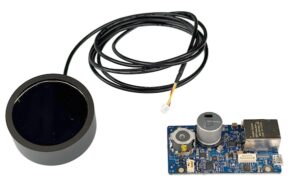

BathymetricSounder S500 SBES

The Sounder S500 single-beam echosounder has been designed for integration into small ROVs, AUVs and ASVs, featuring separate transducer and control electronics for minimal external profile and enhanced installation flexibility.

The system utilizes CHIRP technology to provide excellent range resolution, and can measure distances of over 100 meters.

More information: Cerulean Bathymetry Systems

Connectivity Solutions

Cerulean

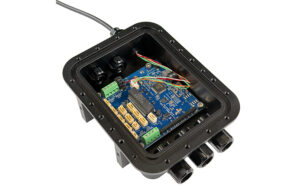

Manifold 5L

The Manifold 5L is a subsea Ethernet network hub that allows you to connect up to five devices, providing streamlined power and communications and reducing penetrations in main electronics enclosures. Ideal for ROV platforms, it provides an optional tether interface for long-distance connectivity.

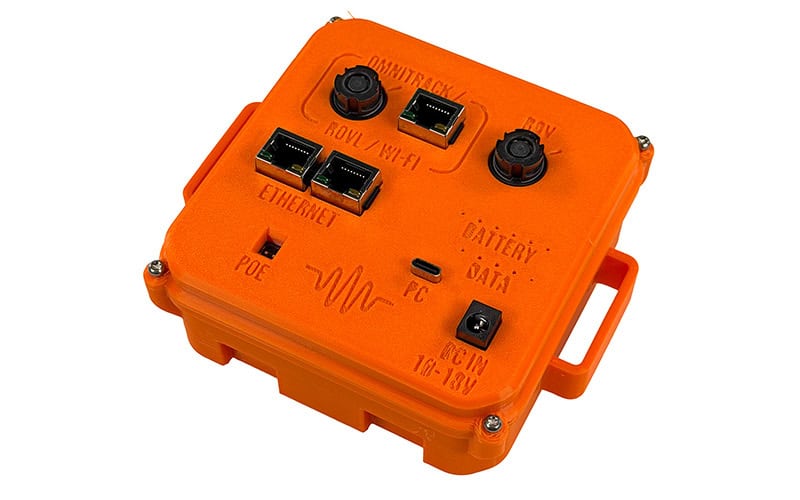

Network Hub

Cerulean’s Network Hub enables ROV operators to unify their topside networks, reducing cabling requirements and eliminating the need for multiple adapters. The compact device provides multiple physical interfaces and can be powered directly from a laptop USB-C port, a battery bank, or an external 2.1 mm DC barrel input.

Cerulean

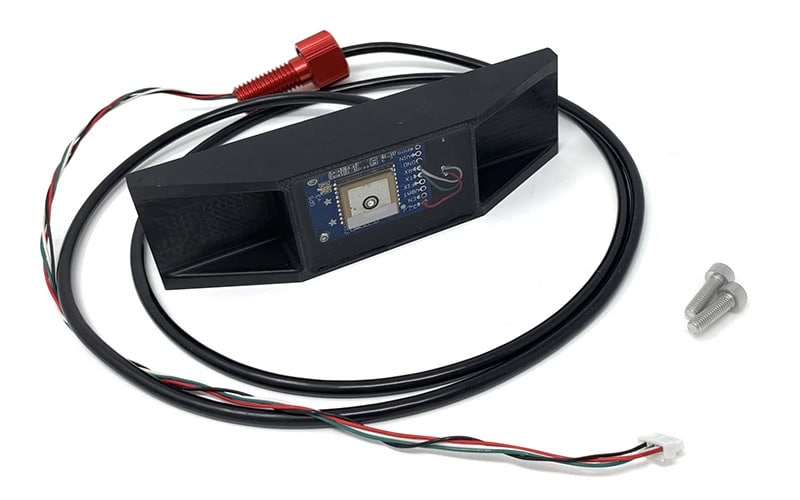

GPS/GNSS Module

Rated to 300 meters, Cerulean’s GPS/GNSS module features a low-profile non-snagging design and an integrated patch antenna. and supports tracking of two GNSS constellations simultaneously (either GPS + GLONASS or GPS + BeiDou).

Products

Omniscan 450 SS

Long-range side scan sonar for USVs

Omniscan 450 FS

Forward-looking sonar for ROVs with 100m & 300m depth options

Omniscan 450 Compact

Compact forward-looking sonar for small ROVs

Omnitrack USBL

Subsea positioning system for ROVs with GNSS heading capability

ROV Locator USBLs

Cost-effective positioning capabilities for ROVs & AUVs

Tracker 650 DVL

ROV Doppler velocity log for advanced stabilization and position tracking

Surveyor 240 MBES

Multibeam echosounder for smaller USV platforms

Sounder S500

Multipurpose single-beam echosounder for ROVs, AUVs & ASVs

Manifold 5L Subsea Network Hub

Subsea Ethernet network hub for up to five devices

Network Hub

Compact networking device for unifying topside ROV equipment

GPS Module

300 meter-rated GNSS module with multi-constellation tracking
